Jacking beams and pit jacks

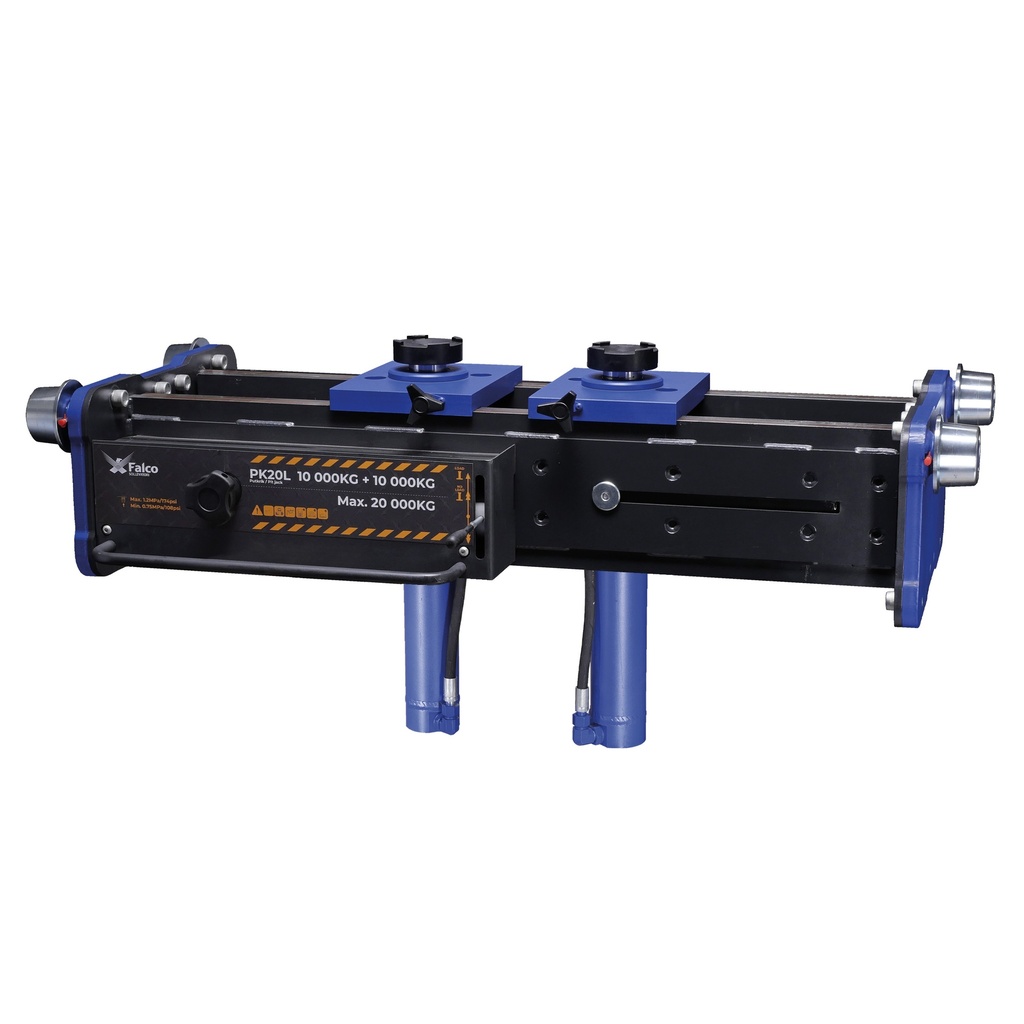

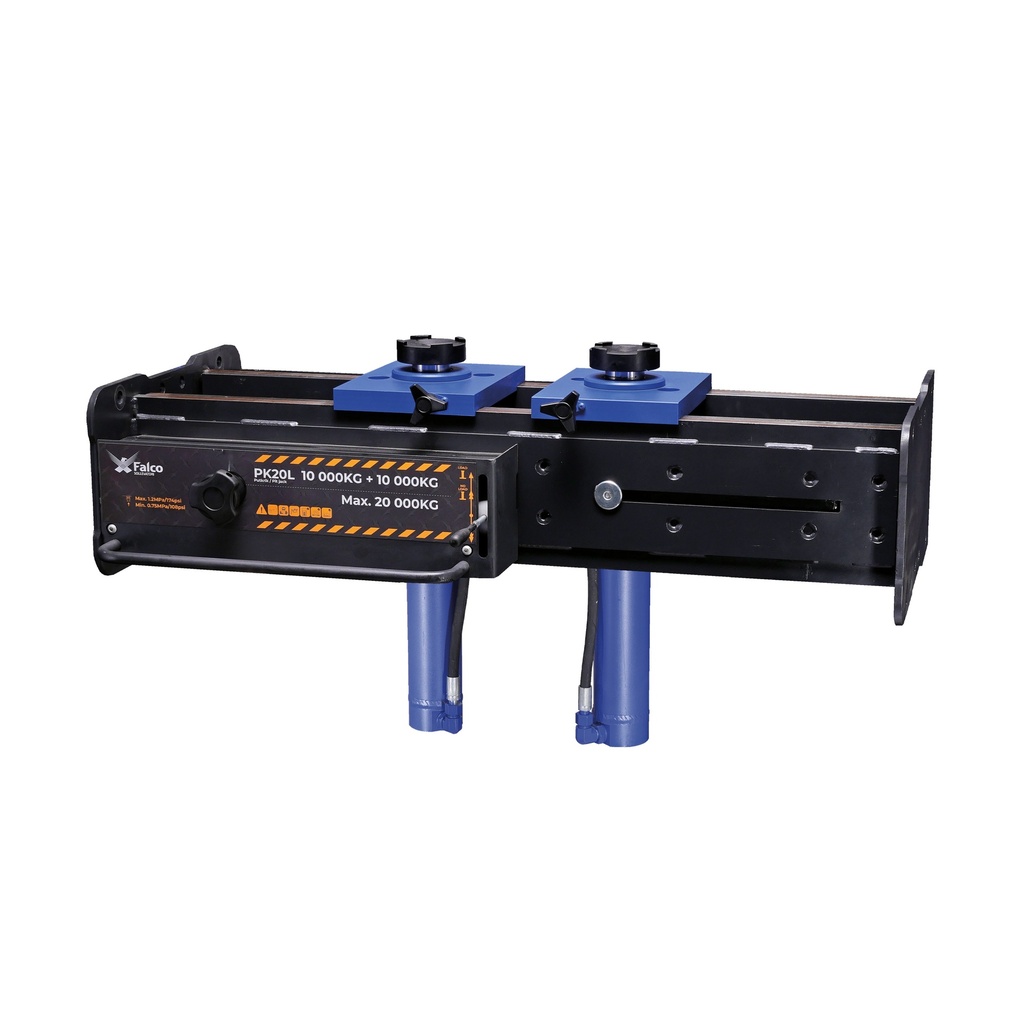

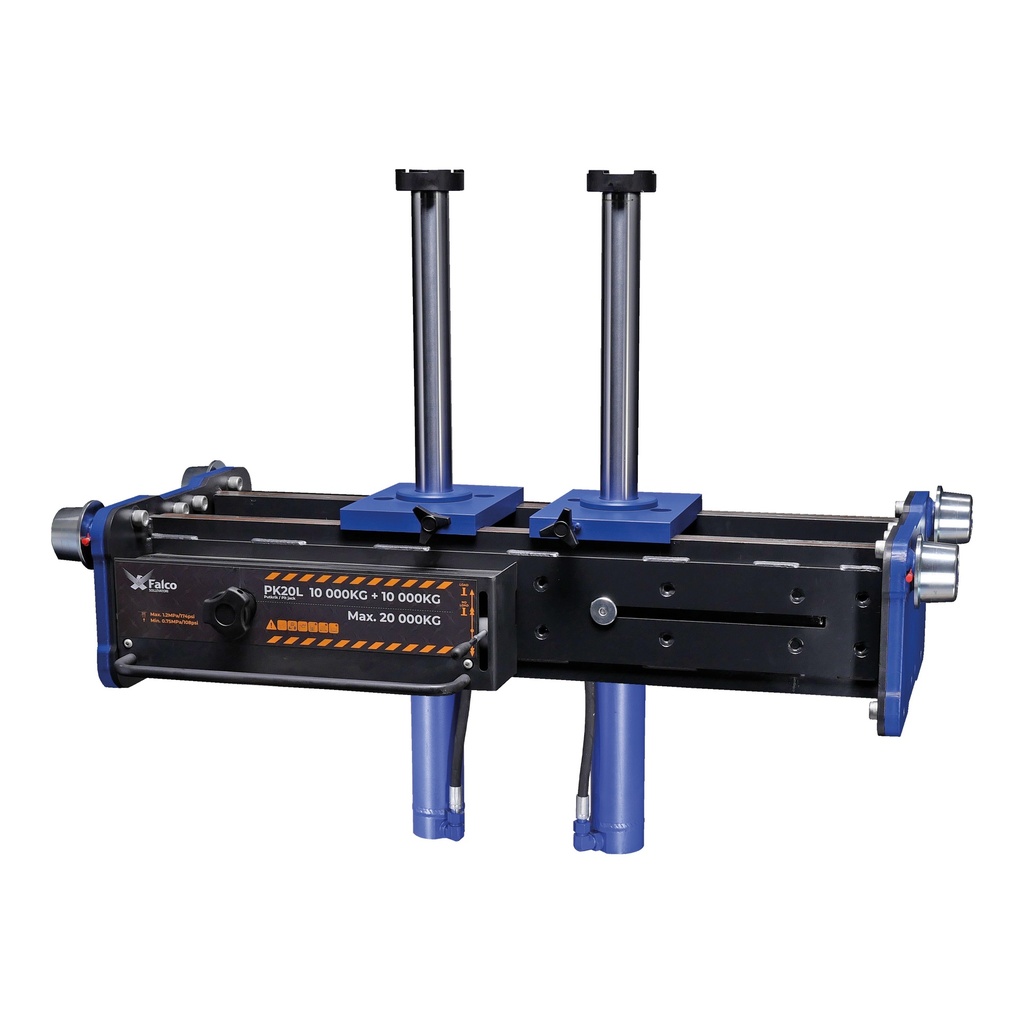

Air hydraulic pit jack 20 ton long cylinder
PK20L

  • Built in air pump
  • Dual pump lifting system
  • 2 lowering speeds
  • Integrated air hydraulic pump
  • Modular system

Specifications:

  • Lifting capacity 20000 kg

  • Lifting height min. 576 mm

  • Working air pressure 7.5 - 12 Bar

  • Stroke 420 mm

  • Lifting height max. incl. pads 996 mm

  • Total width 1100 - 1400 mm

  • Lifting points 200 - 1150 mm

  • Dimensions 590.0mm x1100.0mm x530.0mm

  • Weight 268.0Kg

jacking beam / hydraulic pit jack / hydropneumatic jack pit long cylinder
This 20 ton double cylinder pit jack from Falco Sollevatori is designed to safely lift cars, buses, vans, trucks, forklifts and more with maximum performance and safety features.
Falco Heavy duty pit jack has the following features:
built-in pneumatic hydraulic pump with dual pump lifting system. This system provides a higher lifting speed and reduces the speed under load.
equipped with a variable lowering speed thanks to a double throttle valve. Due to this system, the jack lowers slowly when a load is placed on it and automatically lowers faster when there is no weight on the cylinder. This makes the pit jack not only safe, but also efficient to use.
The smart design of the double cylinder pit jack provides maximum lift and maximum capability:
The frame of the pit jack can be adjusted in width and the modular side plates allow for several different adapter options to be selected. As a result, it can be adapted to all standard entry platforms and manhole shapes.
2 individually controlled rams offer safe and balanced lifting.
Transversely sliding rams.
Each pit jack can be customised to fit the pit frame by selecting the correct adapter plates. Depending on the type rails, a cylindrical or conical adapter can be selected. Depending on the required lifting height long and short adapter plates can be selected.

! Please note, the air hydraulic pit jack is supplied without adapter plates!
These can be selected according to the pit profile and dimensions.

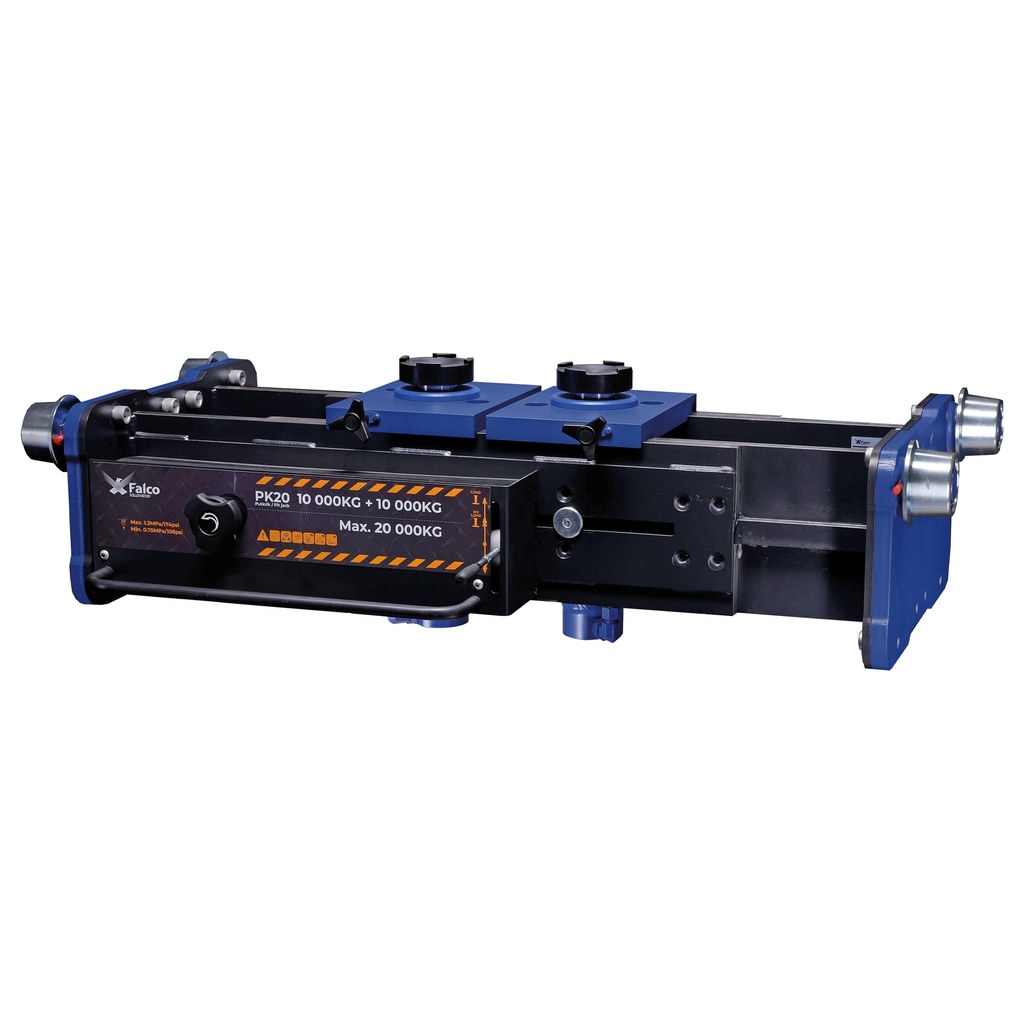

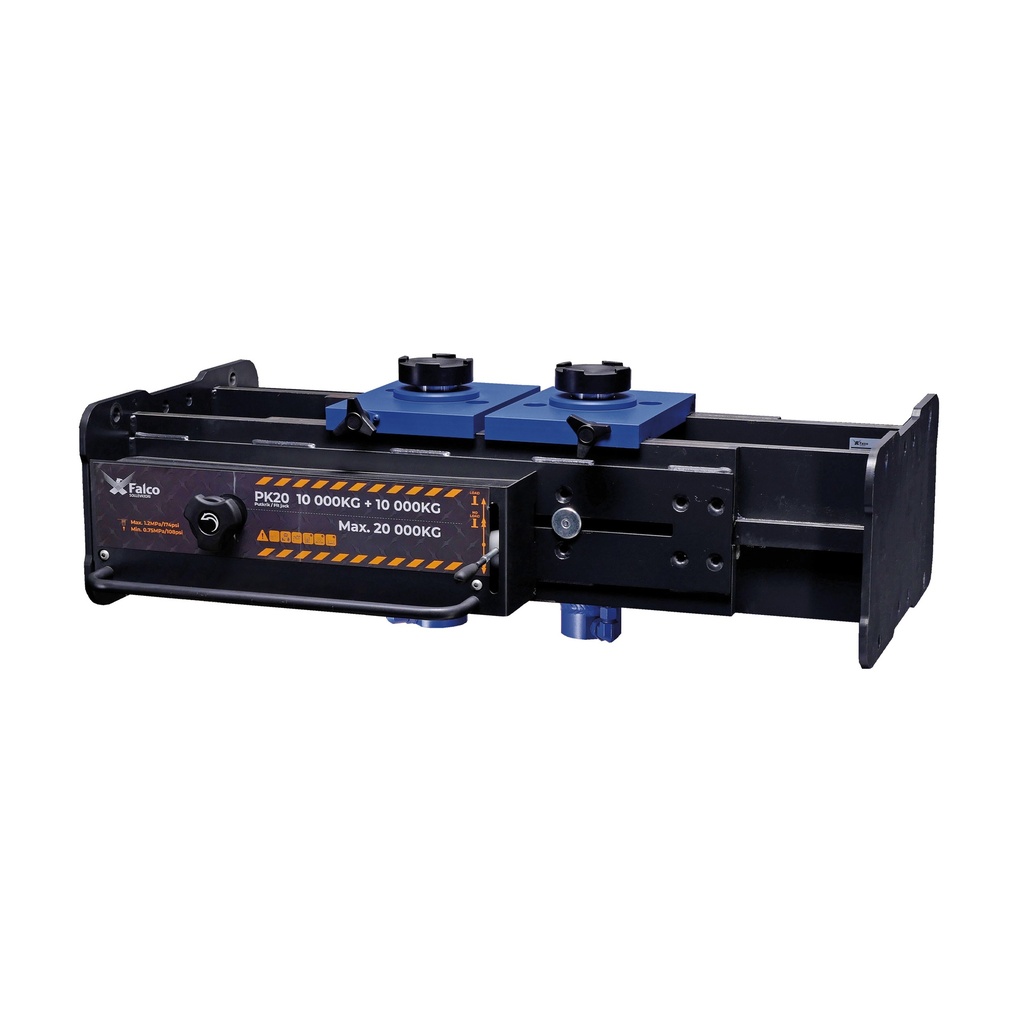

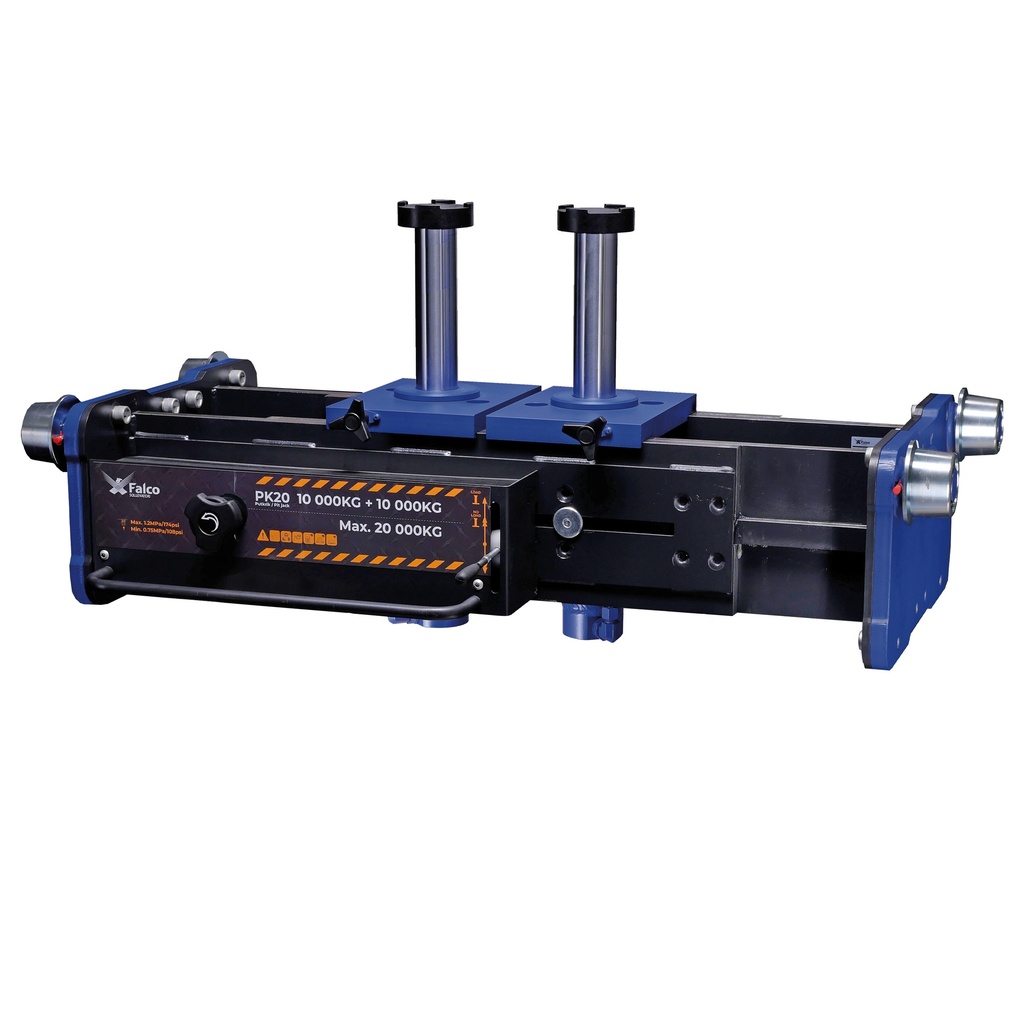

Air hydraulic pit jack 20 ton
PK20

  • Built in air pump
  • Dual pump lifting system
  • 2 lowering speeds
  • Integrated air hydraulic pump
  • Modular system

Specifications:

  • Lifting capacity 20000 kg

  • Lifting height min. 356 mm

  • Working air pressure 7.5 - 12 Bar

  • Stroke 200 mm

  • Lifting height max. incl. pads 556 mm

  • Total width 840 - 1140 mm

  • Lifting points 200 - 890 mm

  • Dimensions 600.0mm x860.0mm x355.0mm

  • Weight 217.0Kg

jacking beam / hydraulic pit jack / hydropneumatic jack pit long cylinder
This 20 ton double cylinder pit jack from Falco Sollevatori is designed to safely lift cars, buses, vans, trucks, forklifts and more with maximum performance and safety features.
Falco Heavy duty pit jack has the following features:
built-in pneumatic hydraulic pump with dual pump lifting system. This system provides a higher lifting speed and reduces the speed under load.
equipped with a variable lowering speed thanks to a double throttle valve. Due to this system, the jack lowers slowly when a load is placed on it and automatically lowers faster when there is no weight on the cylinder. This makes the pit jack not only safe, but also efficient to use.
The smart design of the double cylinder pit jack provides maximum lift and maximum capability:
The frame of the pit jack can be adjusted in width and the modular side plates allow for several different adapter options to be selected. As a result, it can be adapted to all standard entry platforms and manhole shapes.
2 individually controlled rams offer safe and balanced lifting.
Transversely sliding rams.
Each pit jack can be customised to fit the pit frame by selecting the correct adapter plates. Depending on the type rails, a cylindrical or conical adapter can be selected. Depending on the required lifting height long and short adapter plates can be selected.

! Please note, the air hydraulic pit jack is supplied without adapter plates!
These can be selected according to the pit profile and dimensions.

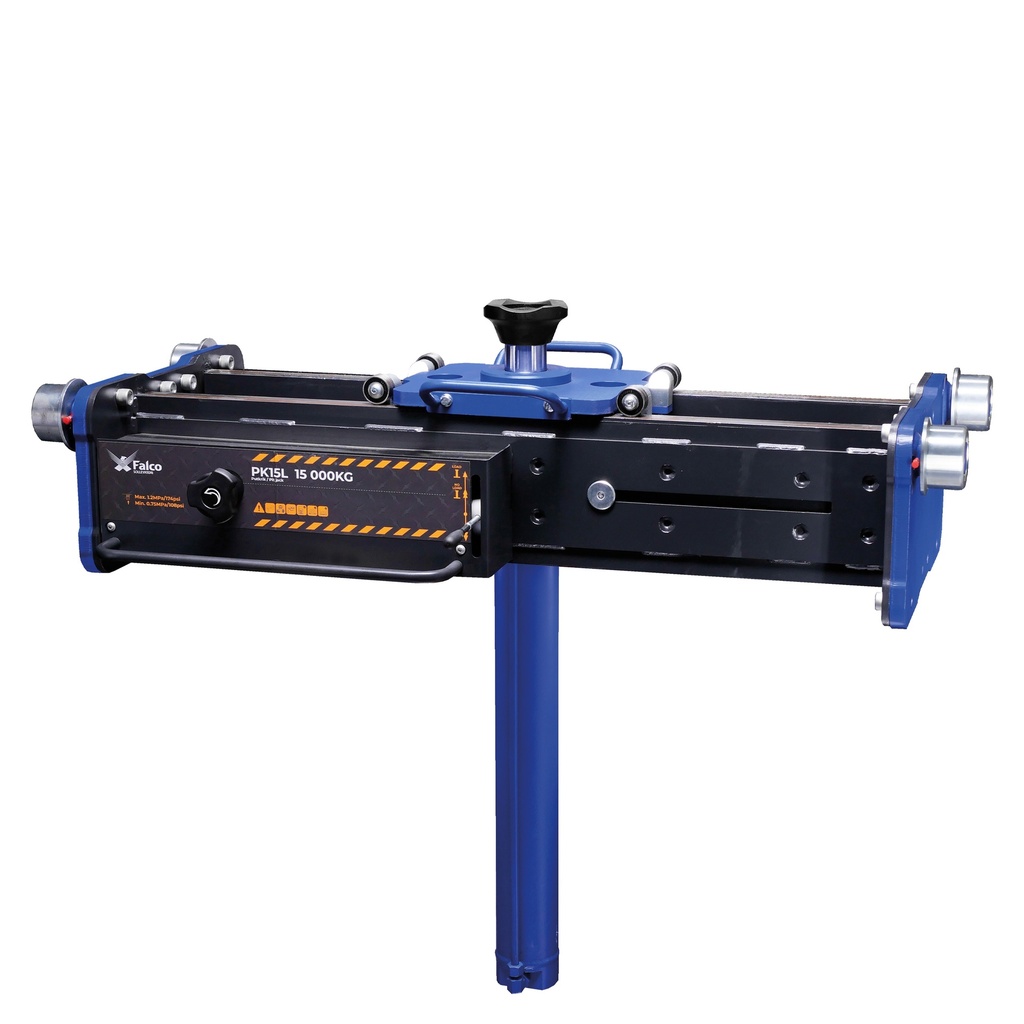

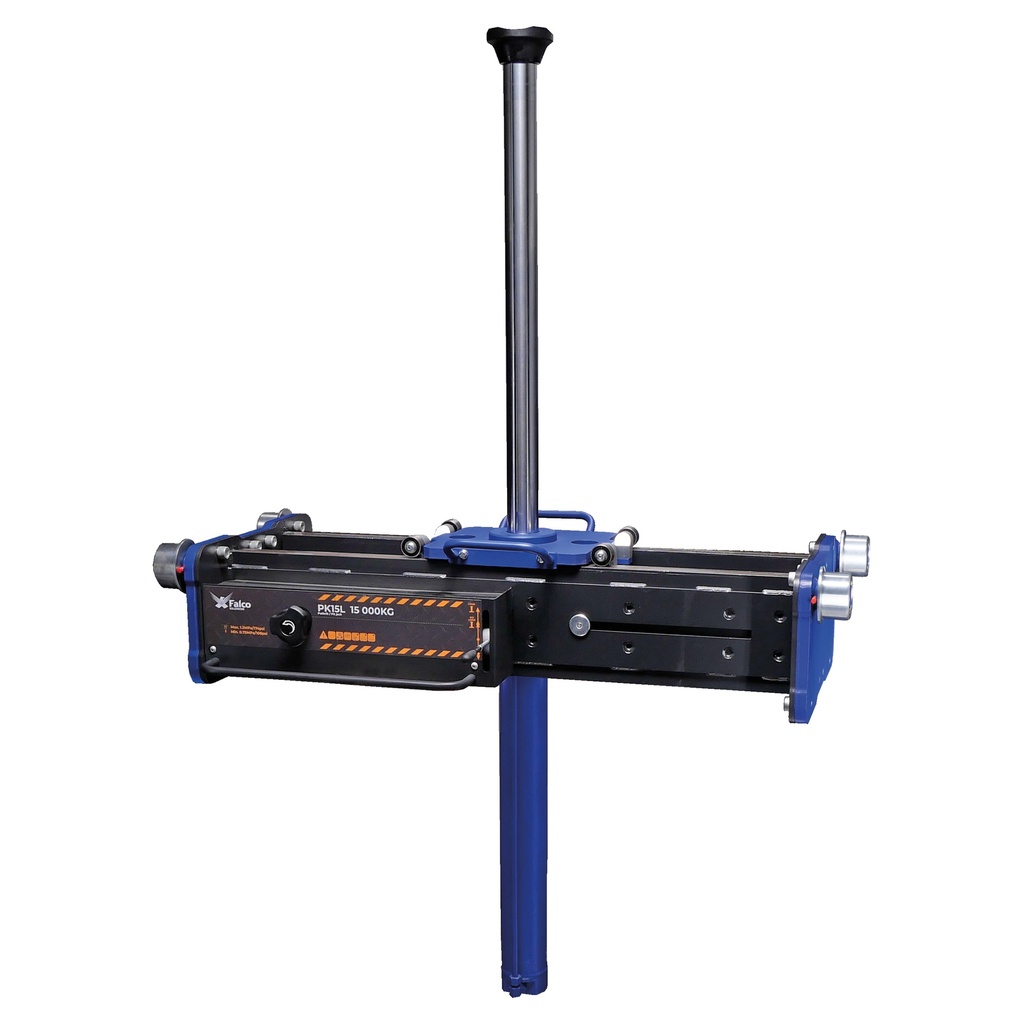

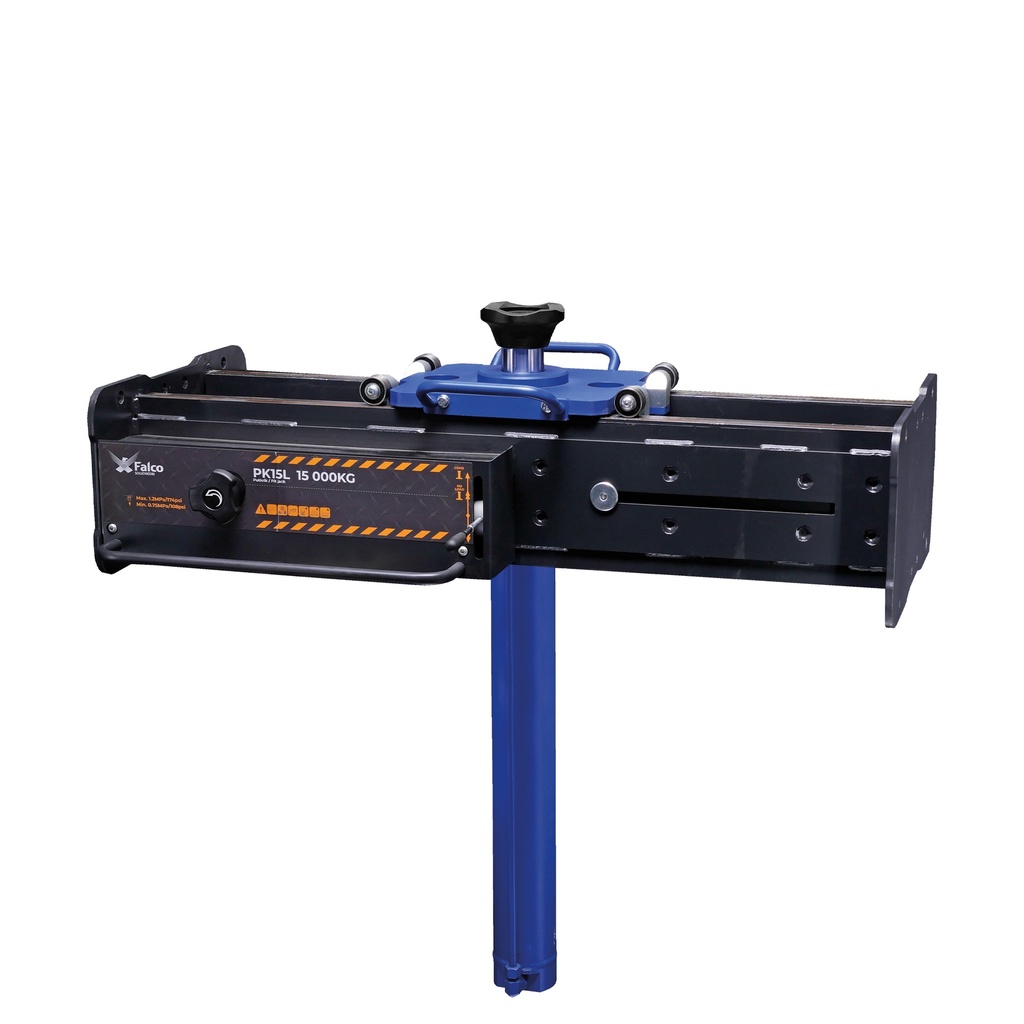

Air hydraulic pit jack 15t long cylinder
PK15L

  • Built in air pump
  • Dual pump lifting system
  • 2 lowering speeds
  • Integrated air hydraulic pump
  • Modular system

Specifications:

  • Lifting capacity 15000 kg

  • Lifting height min. 1020 mm

  • Working air pressure 7.5 - 12 Bar

  • Stroke 800 mm

  • Lifting height max. incl. pads 1820 mm

  • Total width 1100 - 1400 mm

  • Dimensions 600.0mm x1100.0mm x1010.0mm

  • Weight 272.0Kg

jacking beam / hydraulic pit jack / hydropneumatic jack pit short
This 15 ton single cylinder pit jack from Falco Sollevatori is designed to safely lift cars, buses, vans, trucks, forklifts and more with maximum performance and safety features.
Falco Heavy duty pit jack has the following features:
built-in pneumatic hydraulic pump with dual pump lifting system. This system provides a higher lifting speed and reduces the speed under load.
equipped with a variable lowering speed thanks to a double throttle valve. Due to this system, the jack lowers slowly when a load is placed on it and automatically lowers faster when there is no weight on the cylinder. This makes the pit jack not only safe, but also efficient to use.
The smart design of the single cylinder jack provides maximum lift and maximum capability:
The frame of the pit jack can be adjusted in width and the modular side plates allow for several different adapter options to be selected. As a result, it can be adapted to all standard entry platforms and manhole shapes.
The hydraulic cylinder can be positioned from left to right inside the frame to assure optimal lifting position.
The pit jack moves on four wheels which can be mounted with separate adapter plates, the rollers on the adapter plate’s have roller bearings to ensure easy movement the length of the pit.
Each pit jack can be customised to fit the pit frame by selecting the correct adapter plates. Depending on the type rails, a cylindrical or conical adapter can be selected. Depending on the required lifting height long and short adapter plates can be selected.

! Please note, the air hydraulic pit jack is supplied without adapter plates!
These can be selected according to the pit profile and dimensions.

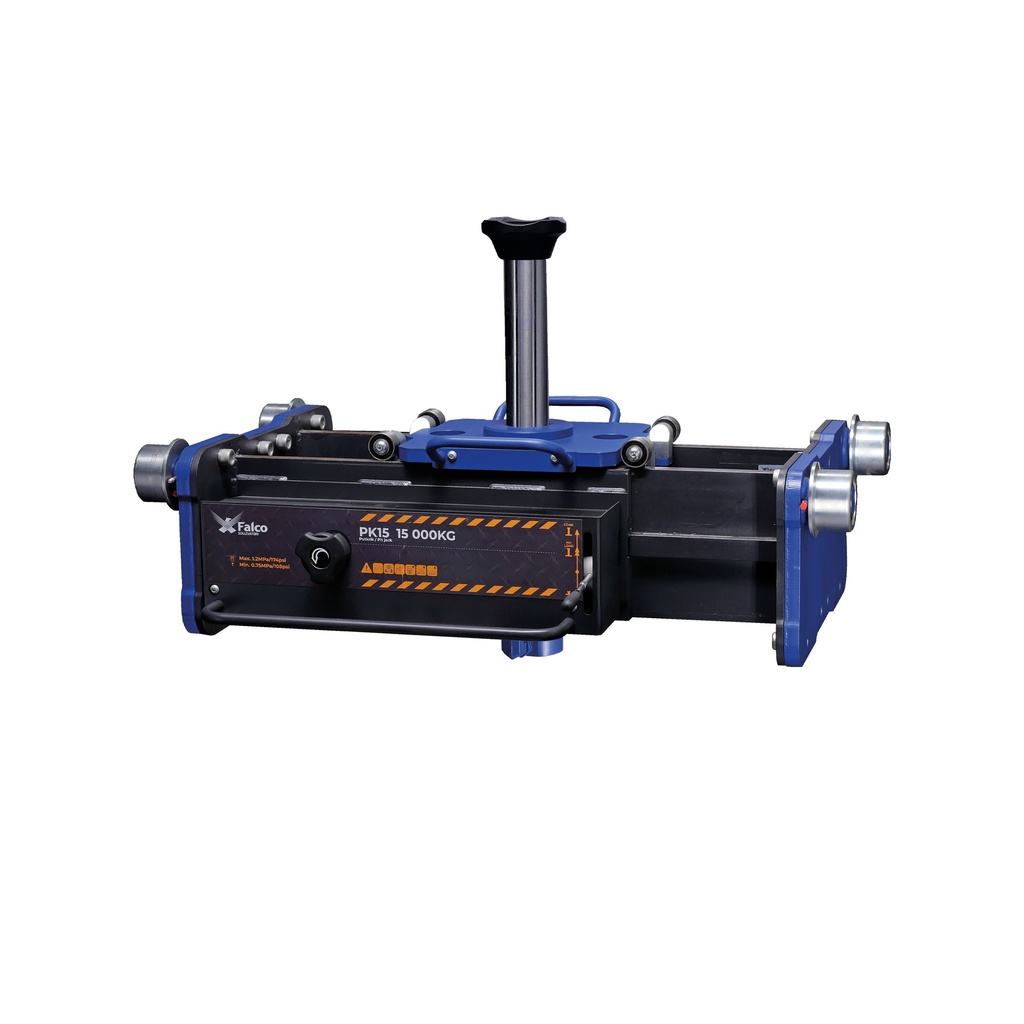

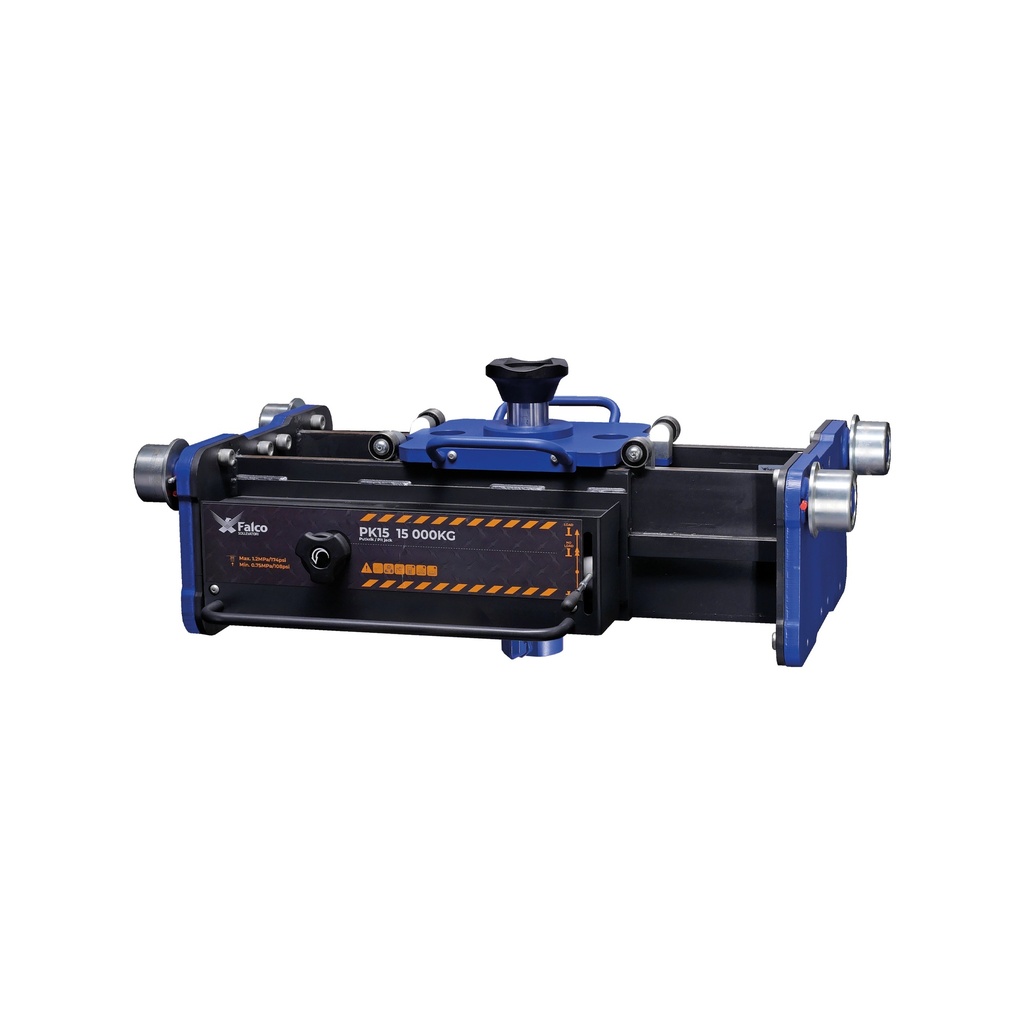

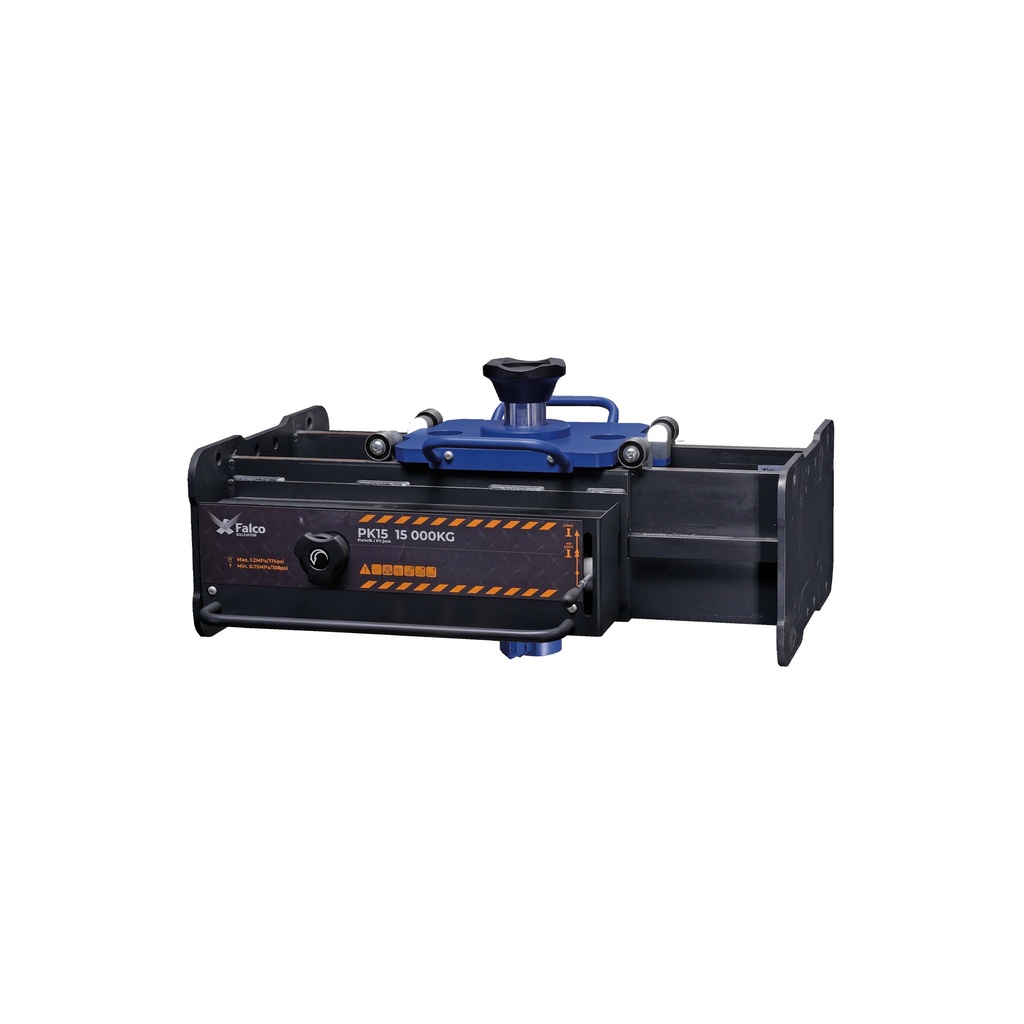

Air hydraulic pit jack 15 ton
PK15

  • Built in air pump
  • Dual pump lifting system
  • 2 lowering speeds
  • Integrated air hydraulic pump
  • Modular system

Specifications:

  • Lifting capacity 15000 kg

  • Lifting height min. 420 mm

  • Working air pressure 7.5 - 12 Bar

  • Stroke 200 mm

  • Extension 100 mm

  • Lifting height max. incl. pads 620 mm

  • Total width 600 - 880 mm

  • Dimensions 585.0mm x860.0mm x420.0mm

  • Weight 176.0Kg

jacking beam / hydraulic pit jack / hydropneumatic jack pit short
This 15 ton single cylinder pit jack from Falco Sollevatori is designed to safely lift cars, buses, vans, trucks, forklifts and more with maximum performance and safety features.
Falco Heavy duty pit jack has the following features:
built-in pneumatic hydraulic pump with dual pump lifting system. This system provides a higher lifting speed and reduces the speed under load.
equipped with a variable lowering speed thanks to a double throttle valve. Due to this system, the jack lowers slowly when a load is placed on it and automatically lowers faster when there is no weight on the cylinder. This makes the pit jack not only safe, but also efficient to use.
The smart design of the single cylinder jack provides maximum lift and maximum capability:
The frame of the pit jack can be adjusted in width and the modular side plates allow for several different adapter options to be selected. As a result, it can be adapted to all standard entry platforms and manhole shapes.
The hydraulic cylinder can be positioned from left to right inside the frame to assure optimal lifting position.
The pit jack moves on four wheels which can be mounted with separate adapter plates, the rollers on the adapter plate’s have roller bearings to ensure easy movement the length of the pit.
Each pit jack can be customised to fit the pit frame by selecting the correct adapter plates. Depending on the type rails, a cylindrical or conical adapter can be selected. Depending on the required lifting height long and short adapter plates can be selected.

! Please note, the air hydraulic pit jack is supplied without adapter plates!
These can be selected according to the pit profile and dimensions.

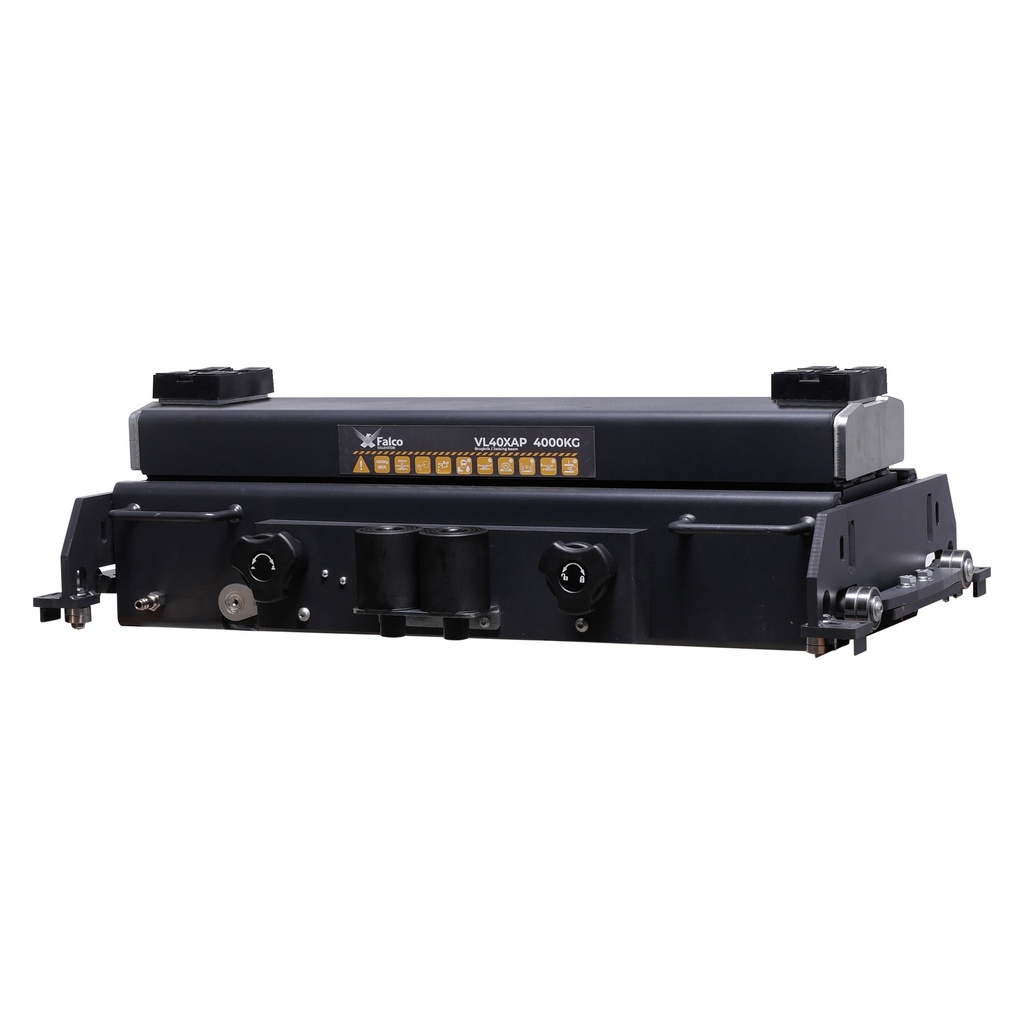

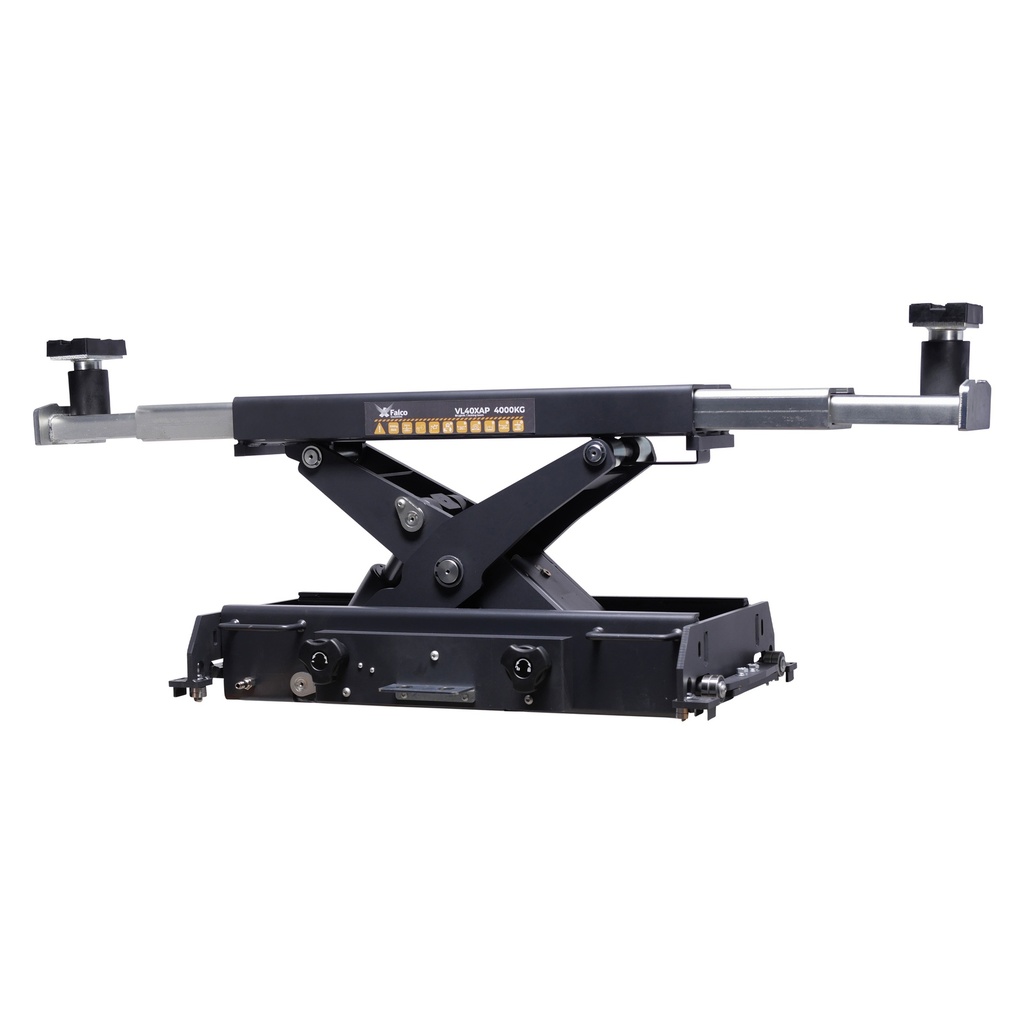

Jacking beam 4000kg
VL40XAP

  • Integrated control
  • Dual action pump
  • 4000kg lifting capacity
  • 2 speed lowering
  • Heavy duty adapter plate

Specifications:

  • Lifting capacity 4000 kg

  • Lifting height min. 261 mm

  • Telescopic arms 780 - 1515 mm

  • Stroke 250 mm

  • Platform dimensions 755x196 mm

  • Lifting height max. incl. pads 511 mm

  • Air pressure 7.5 - 12 bar

  • Width incl. mounting brackets 870 - 1290 mm

  • Adapter height 75 mm

  • Dimensions 443.0mm x875.0mm x230.0mm

  • Weight 176.0Kg

Jacking beam 4000kg
This air operated hydraulic jacking beam from Falco Sollevatori is an great addition for any four column & scissor lift installed in automotive workshops used for conducting maintenance. The jack can be easily installed and positioned thanks to the special ballbearing steel rollers, which have a universal adjustable position. The Falco jacking beam has an integrated two-stage pump, this system provides an automatic fast lifting stroke without weight and a slow controllable stroke when the jacking beam is lifting the vehicle.
It comes with square saddles and cup-shaped height adapters to increase the lifting height, it’s equipped with rubber lifting pads for protection of the car body.
With the two-speed lowering system, a loaded car can be safely lowered with minimal decrease in speed.Once the load is of the jacking beam the lowering speed will automatically increase to work efficiently and more safe.

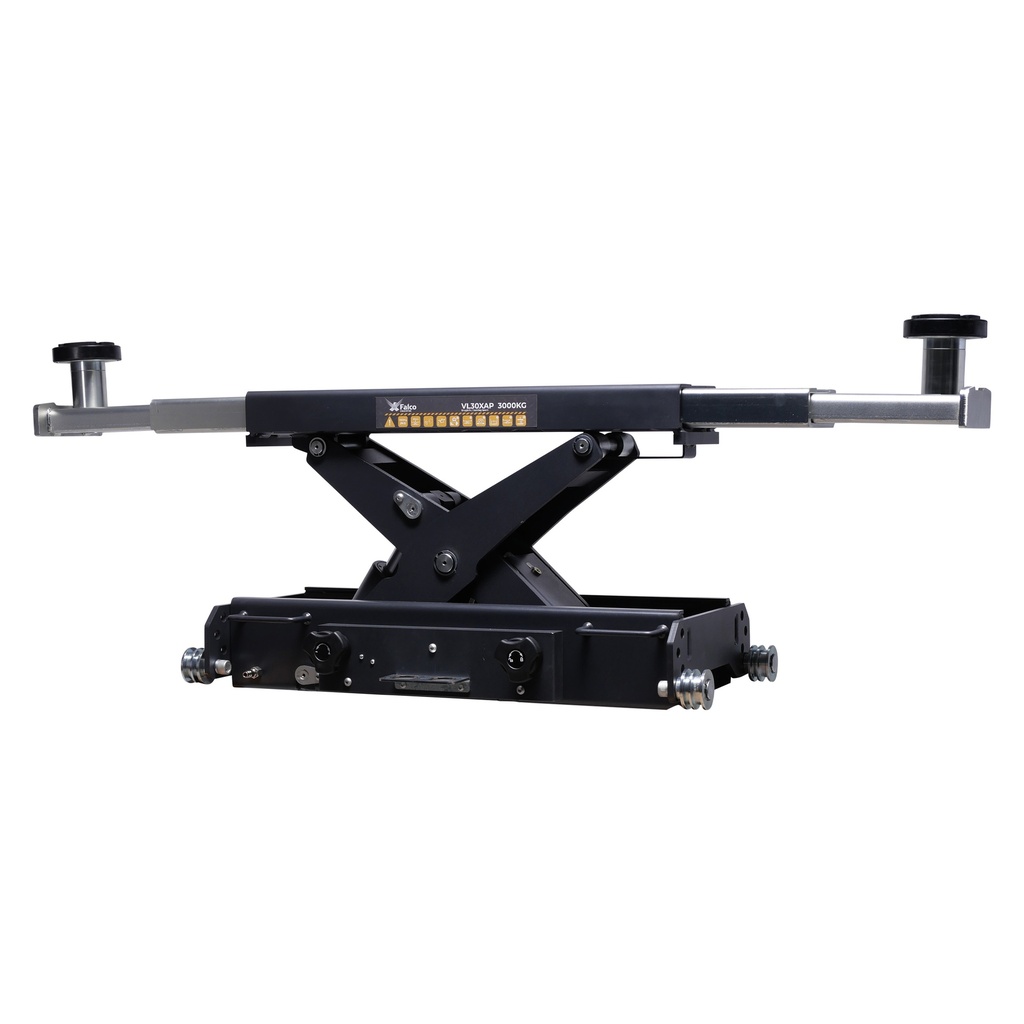

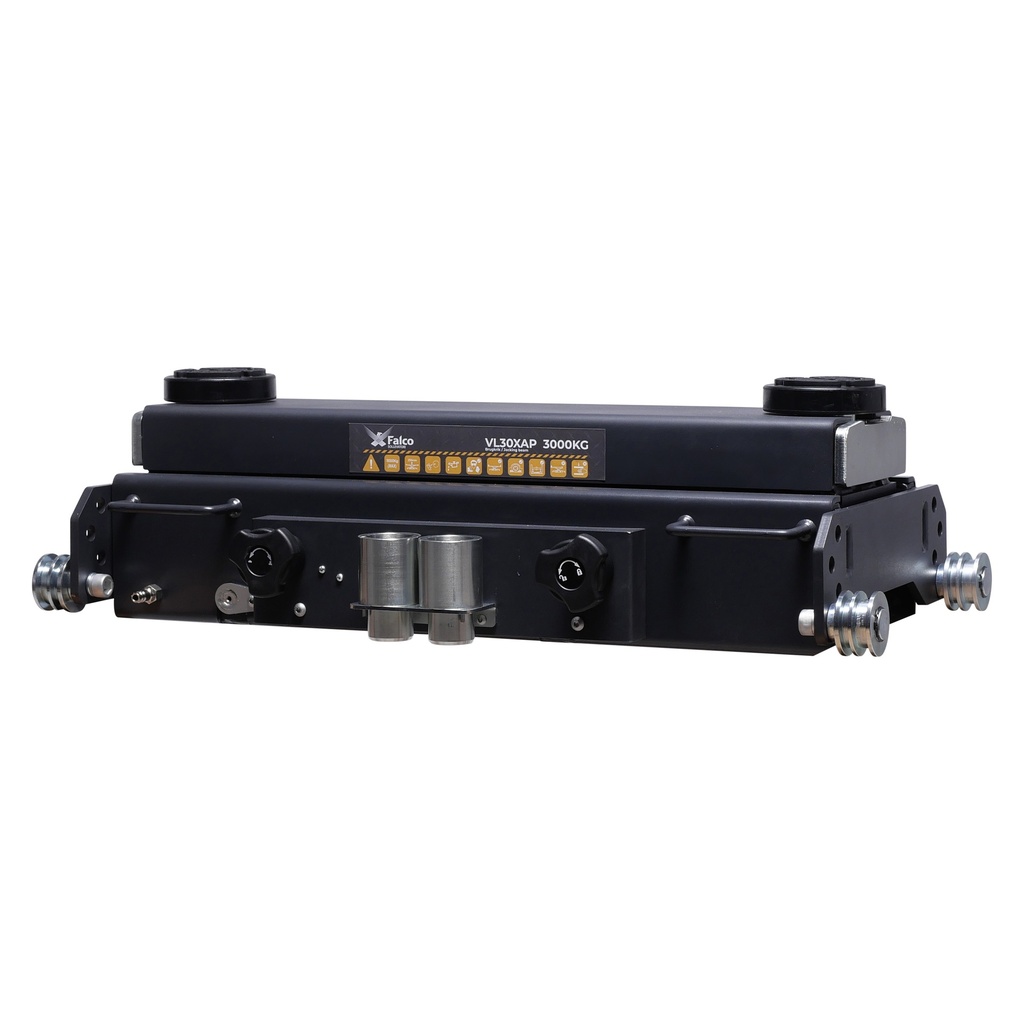

Jacking beam 3000kg
VL30XAP

  • Integrated control
  • Dual action pump
  • Low profile 95mm
  • 2 speed lowering
  • Reversible adapter

Specifications:

  • Lifting capacity 3000 kg

  • Lifting height min. 215 mm

  • Telescopic arms 780 - 1610 mm

  • Stroke 270 mm

  • Platform dimensions 755x191 mm

  • Lifting height max. incl. pads 465 mm

  • Air pressure 7.5 - 12 bar

  • Width incl. mounting brackets 900 - 1318 mm

  • Adapter height 65 mm

  • Dimensions 410.0mm x910.0mm x230.0mm

  • Weight 157.0Kg

Jacking beam 3000kg
This air operated hydraulic jacking beam from Falco Sollevatori is an great addition for any four column & scissor lift installed in car workshops used for conducting maintenance.The jack can be easily installed and positioned thanks to the special ballbearing steel rollers, which have a universal adjustable position.The Falco jacking beam has an integrated two-stage pump, this system provides an automatic fast lifting stroke without weight and a slow controllable stroke when the jacking beam is lifting the vehicle.
The adapter plates are reversible so the jacking beam can have a min. height of only 95 mm which makes it suitable for low cars and sport cars.
It comes with adjustable saddles with screw extension and cup-shaped height adapters to increase the lifting height, it’s equipped with rubber lifting pads for protection of the car body.
With the two-speed lowering system, a loaded car can be safely lowered with minimal decrease in speed.Once the load is of the jacking beam the lowering speed will automatically increase to work efficiently and more safe.

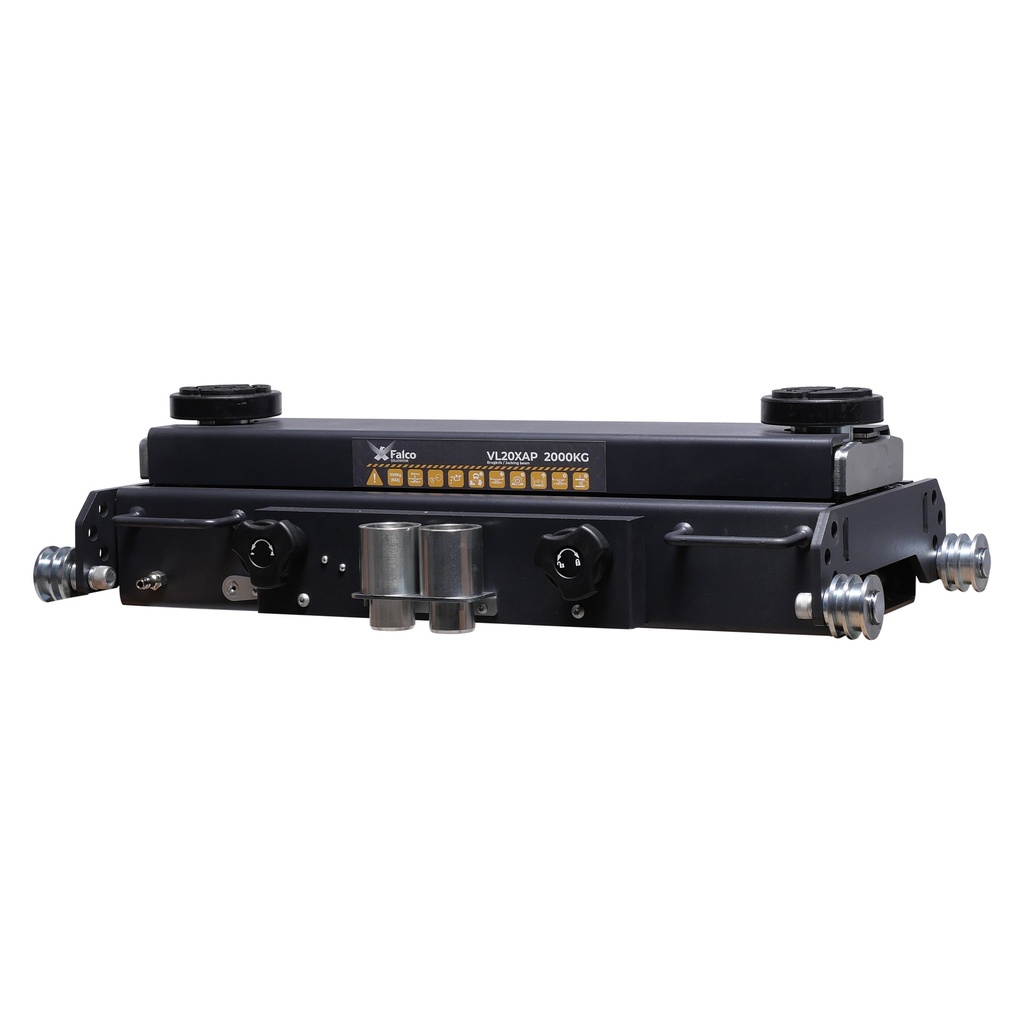

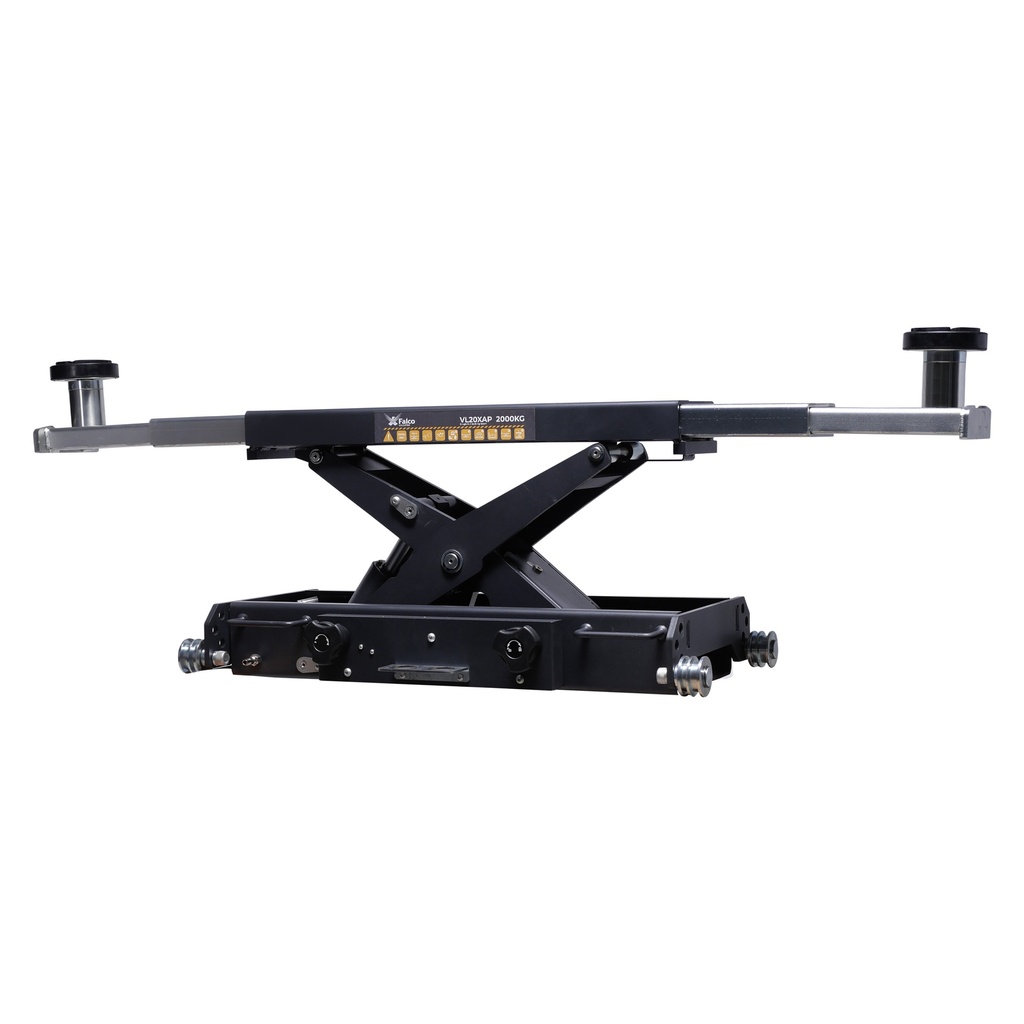

Jacking beam 2000kg
VL20XAP

  • Integrated control
  • Dual action pump
  • Low profile 90mm
  • 2 speed lowering
  • Reversible adapter


Specifications:

  • Lifting capacity 2000 kg

  • Lifting height min. 215 mm

  • Telescopic arms 780 - 1610 mm

  • Stroke 250 mm

  • Platform dimensions 182 x 755 mm

  • Lifting height max. incl. pads 465 mm

  • Air pressure 7.5 - 12 bar

  • Width incl. mounting brackets 900 - 1318 mm

  • Adapter height 65 mm

  • Dimensions 410.0mm x895.0mm x200.0mm

  • Weight 120.0Kg

Jacking beam 2000kg
This air operated hydraulic jacking beam from Falco Sollevatori is a great addition for any four column & scissor lift installed in car workshops used for conducting maintenance.The jack can be easily installed and positioned thanks to the special ball bearing steel rollers, which have a universal adjustable position.The Falco jacking beam has an integrated two-stage pump, this system provides an automatic fast lifting stroke without weight and a slow controllable stroke when the jacking beam is lifting the vehicle.
The adapter plates are reversible so the jacking beam can have a min. height of only 90mm which makes it suitable for low cars and sport cars.

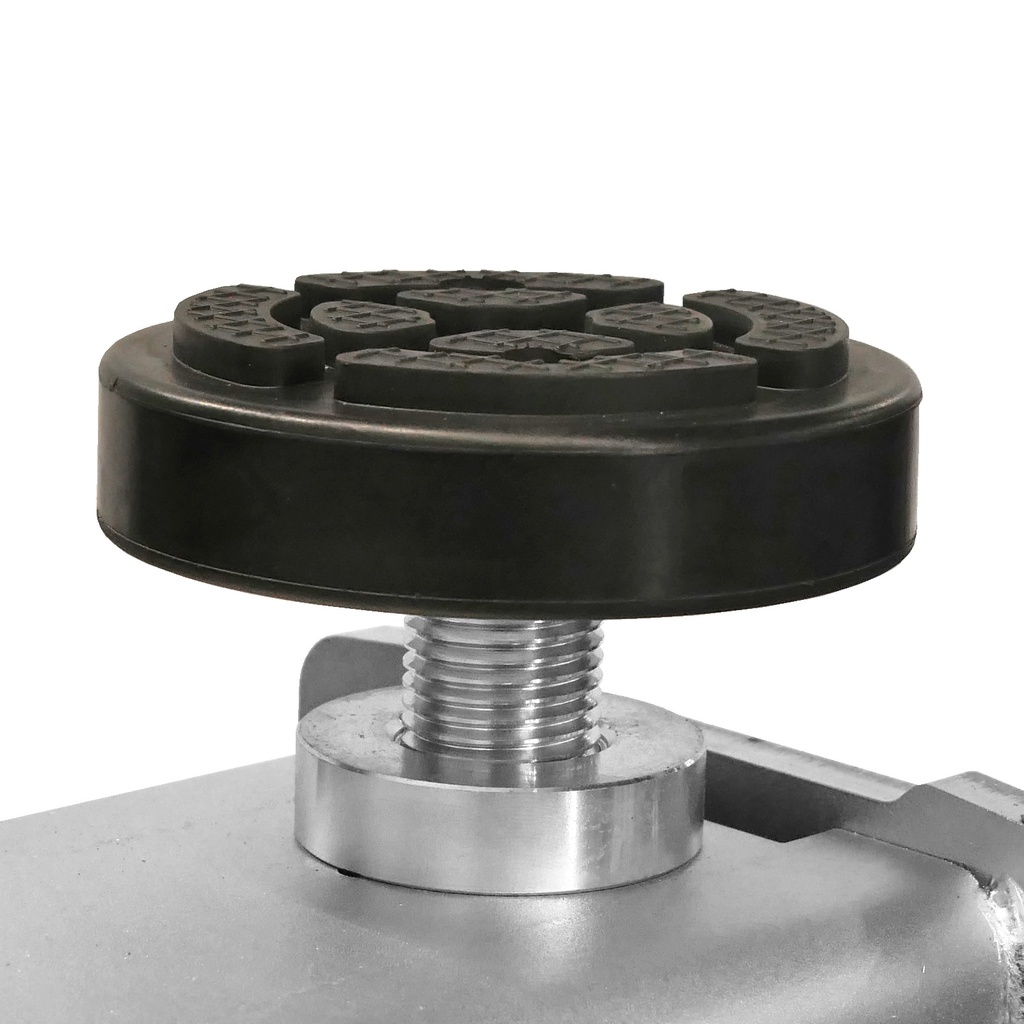

It comes with adjustable saddles with screw extension and cup-shaped height adapters to increase the lifting height, it’s equipped with rubber lifting pads for protection of the car body.
With the two-speed lowering system, a loaded car can be safely lowered with minimal decrease in speed.Once the load is of the jacking beam the lowering speed will automatically increase to work efficiently and more safely.

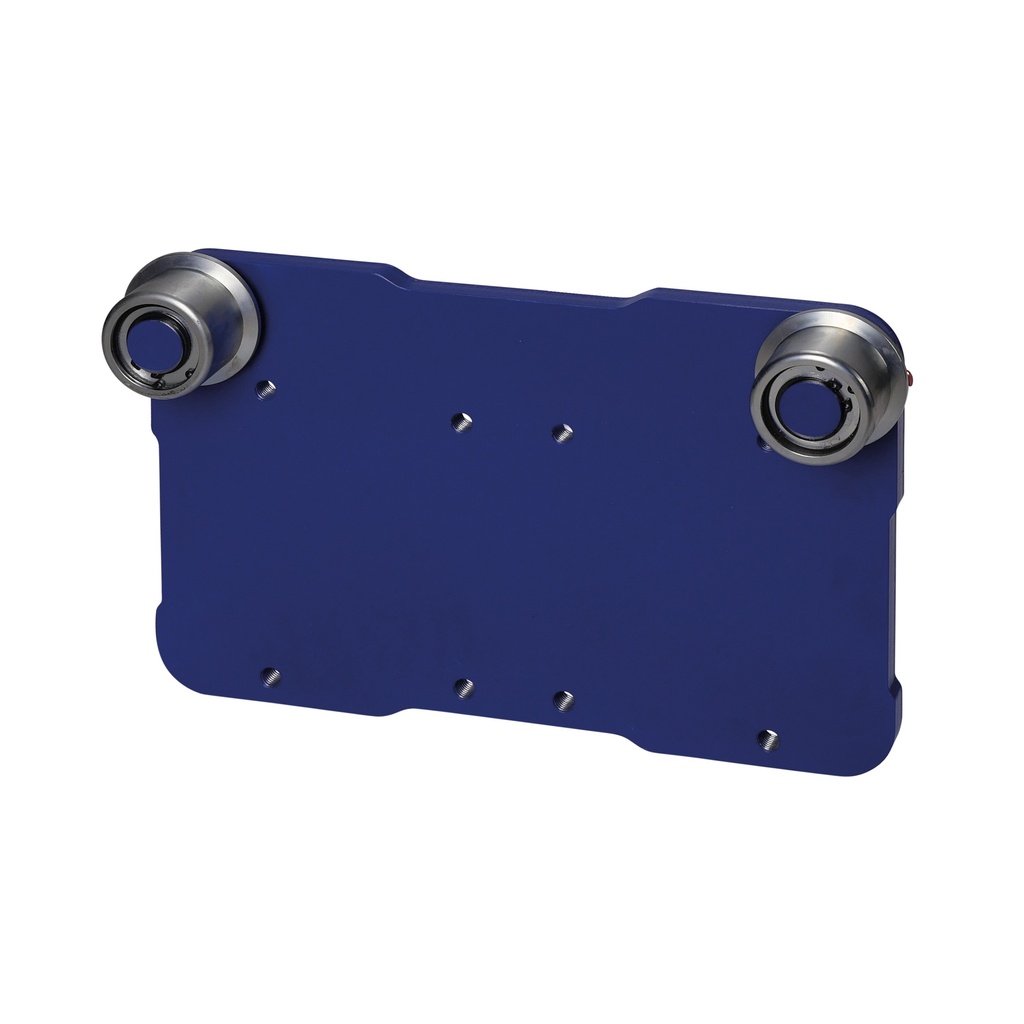

Long plate + cylindrical wheel for pit jack
PK02A



Specifications:

  • Wheel diameter 80 mm

  • Adapter type long plate

  • Plate height 338 mm

  • Plate width 520 mm

  • Rails type cylindrical

  • Wheel width max. 45 mm

  • Dimensions 360.0mm x550.0mm x90.0mm

  • Weight 60.0Kg

jacking beam / hydraulic pit jack / hydropneumatic jack pit short
This long plate with cylindrical wheels for pit jack from Falco Sollevatori can be adapted to entry platforms and manhole shapes which have straight rail profile.
See the datasheet of the pit jacks for more information.
! Set adapter plates contain 2pcs.

Long plate + conical wheel for pit jack
PK04A



Specifications:

  • Wheel diameter 80 mm

  • Adapter type long plate

  • Plate height 338 mm

  • Plate width 520 mm

  • Rails type conical

  • Wheel width max. 45 mm

  • Conical roller angle 8.6°

  • Dimensions 340.0mm x540.0mm x90.0mm

  • Weight 60.0Kg

jacking beam / hydraulic pit jack / hydropneumatic jack pit short
This long plate with conical wheels for pit jack from Falco Sollevatori can be adapted to entry platforms and manhole shapes which have conical rail type.
See the datasheet of the pit jacks for more information.
! Set adapter plates contain 2pcs.

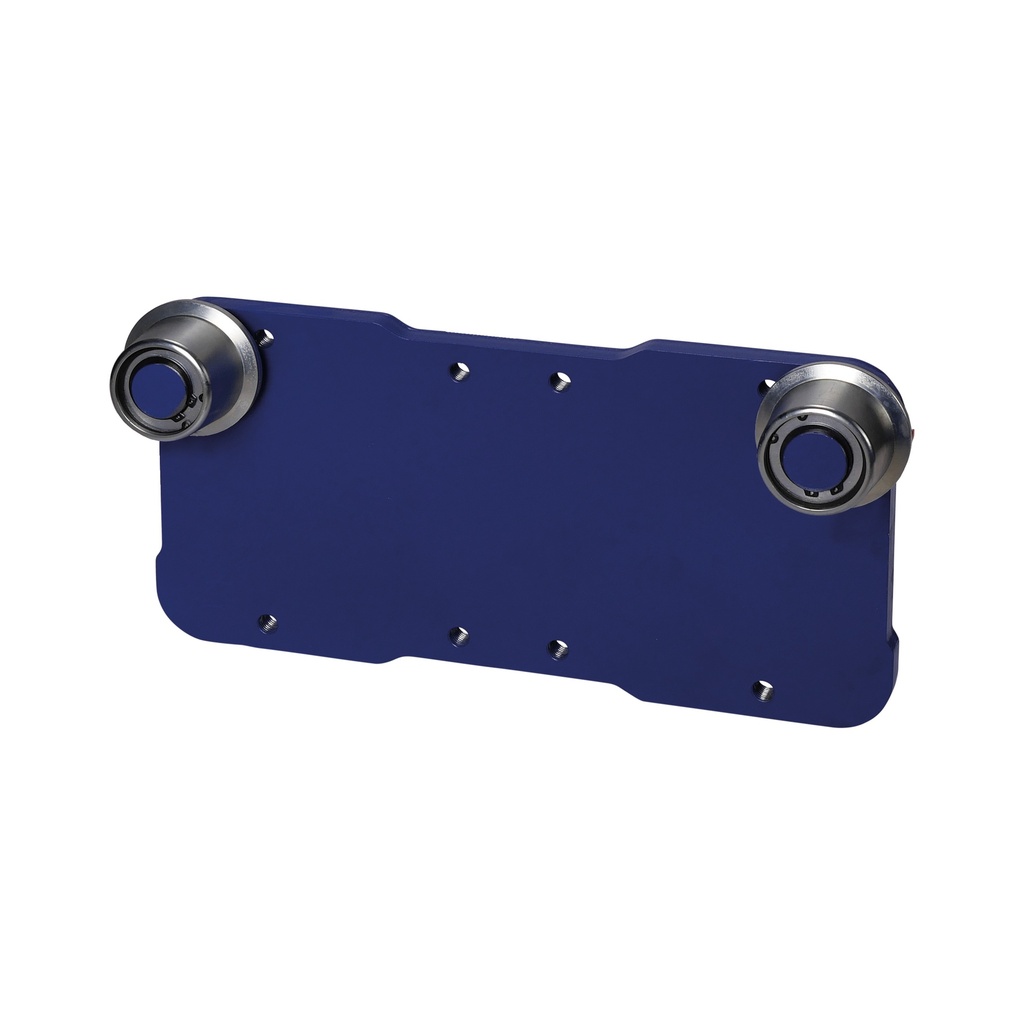

Short plate + conical wheel for pit jack
PK03A



Specifications:

  • Wheel diameter 80 mm

  • Adapter type short plate

  • Plate height 263 mm

  • Plate width 520 mm

  • Rails type conical

  • Wheel width max. 45 mm

  • Conical roller angle 8.6°

  • Dimensions 270.0mm x530.0mm x90.0mm

  • Weight 48.0Kg

jacking beam / hydraulic pit jack / hydropneumatic jack pit short
This short plate with conical wheels for pit jack from Falco Sollevatori can be adapted to entry platforms and manhole shapes which have conical rail type.
See the datasheet of the pit jacks for more information.
! Set adapter plates contain 2pcs.

Short plate + cylindrical wheels for pit jack
PK01A



Specifications:

  • Wheel diameter 80 mm

  • Adapter type short plate

  • Plate height 263 mm

  • Plate width 520 mm

  • Rails type cylindrical

  • Wheel width max. 45 mm

  • Dimensions 270.0mm x530.0mm x90.0mm

  • Weight 48.0Kg

jacking beam / hydraulic pit jack / hydropneumatic jack pit short
This short plate with cylindrical wheels for pit jack from Falco Sollevatori can be adapted to entry platforms and manhole shapes which have straight rail profile.
See the datasheet of the pit jacks for more information.
! Set adapter plates contain 2pcs.
