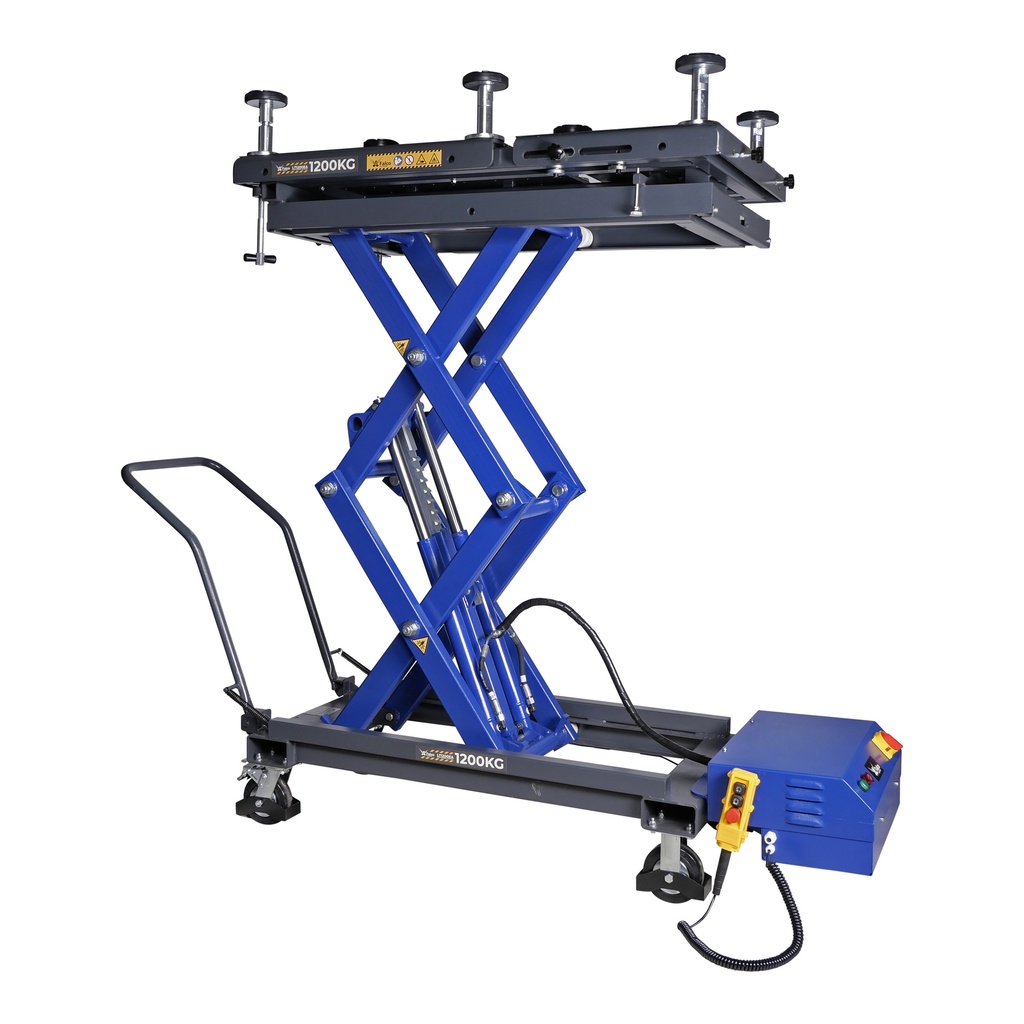

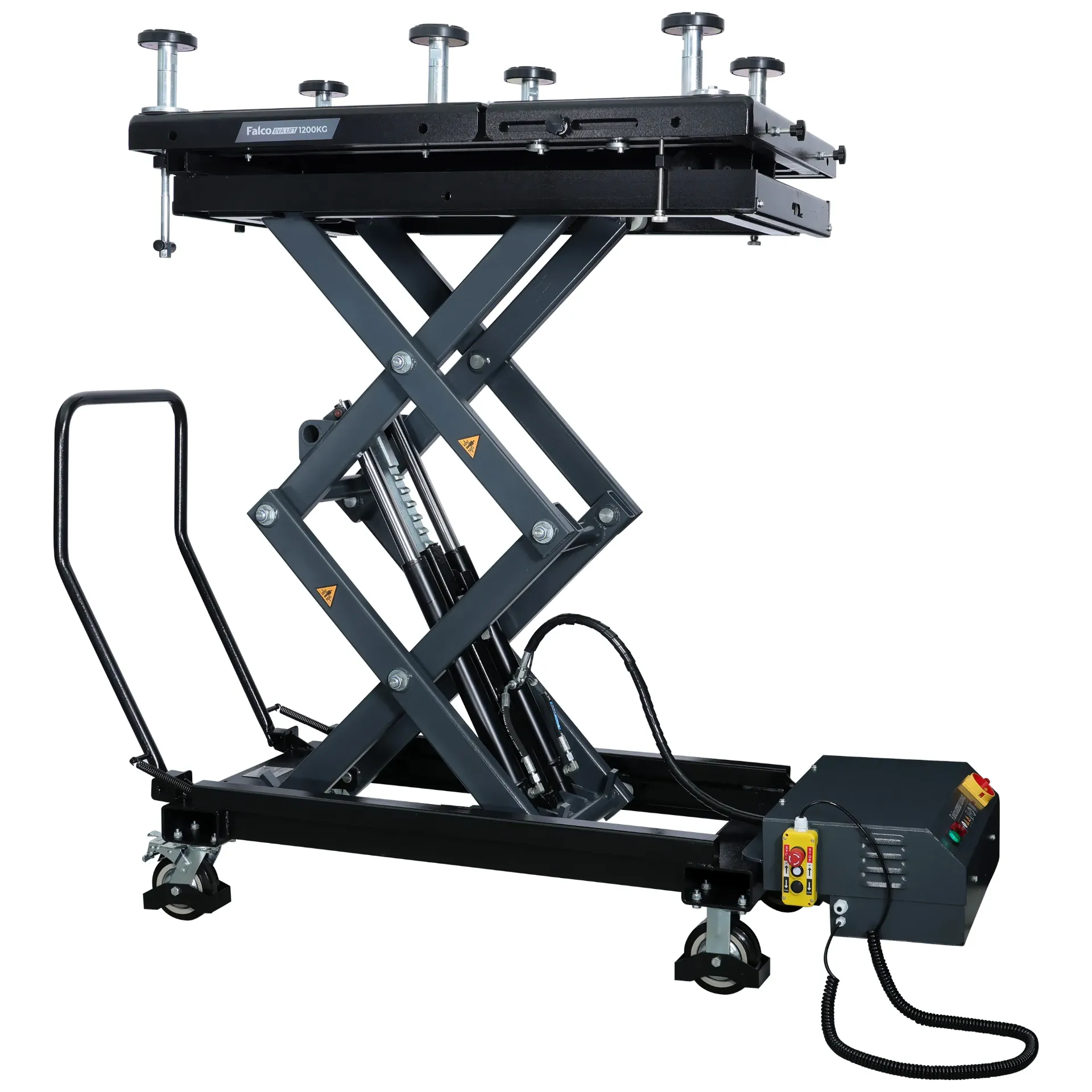

Mobile scissor lift table for EVA car battery engine and transmission exchange 230V 1200kg
LT1200EA

  • 1200kg lifting capacity

  • Three-stage adjustable table top

  • Mechanical lock
    adjustable lifting pads

  •  Insulated tabletop


Specifications:

  • Lifting capacity 1200 kg

  • Voltage 230V / 50 Hz

  • Platform dimensions 1300 x 760 mm

  • Power 0.75 kW

  • Protection class IP44

  • Platform height min. (without pads / with pads) 640 / 800 mm

  • Platform height max. (without pads / with pads middle position / with pads high position) 1855 / 2015 / 2065 mm

  • Adjustable lifting pads (min / max) 160 / 210 mm

  • Platform adjustable range 1290 - 1400 mm

  • Dimensions 770.0mm x2240.0mm x1010.0mm

  • Weight 440.0Kg

Mobile scissor lift table / scissor lift / lift table / electro hydraulic scissor table lift table

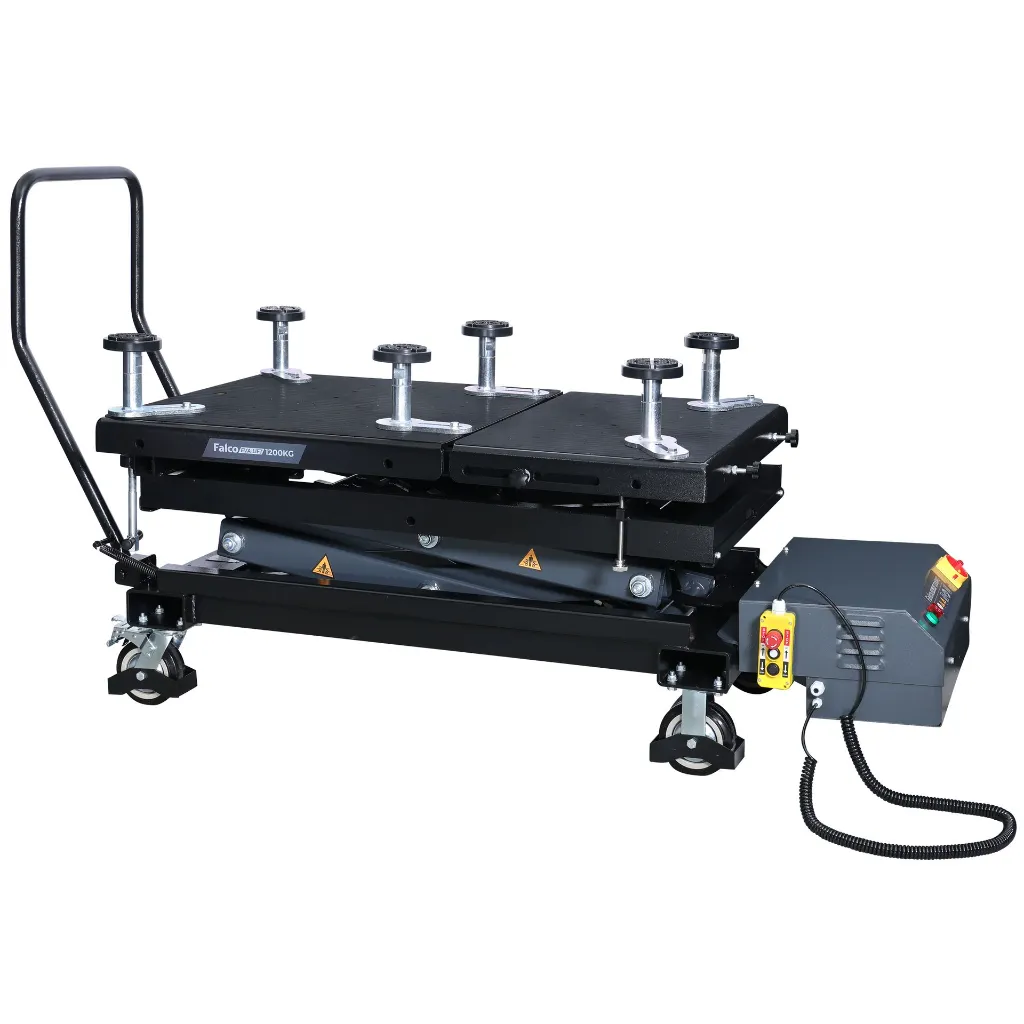

The Falco LT1200EA electro hydraulic battery has been specially developed for electric vehicles and is ideal for (dis)assembling engines, gearboxes, lithium-ion car battery packs and other chassis components. The lifting table is infinitely adjustable in height and length, so it has a flexible field of application.
Features:

  • The table top has 104 M10 threaded holes with a hole pattern of 100 x 100 mm for easy mounting of tools and lifting adapters
  • Lifting table is easily adjustable in length and transverse direction and can be tilted 5 degrees
  • Swivel wheels including brake for free movement and safe operation
  • Collapsible rod for optimal workspace
  • Integrated, electro-hydraulic unit 230V

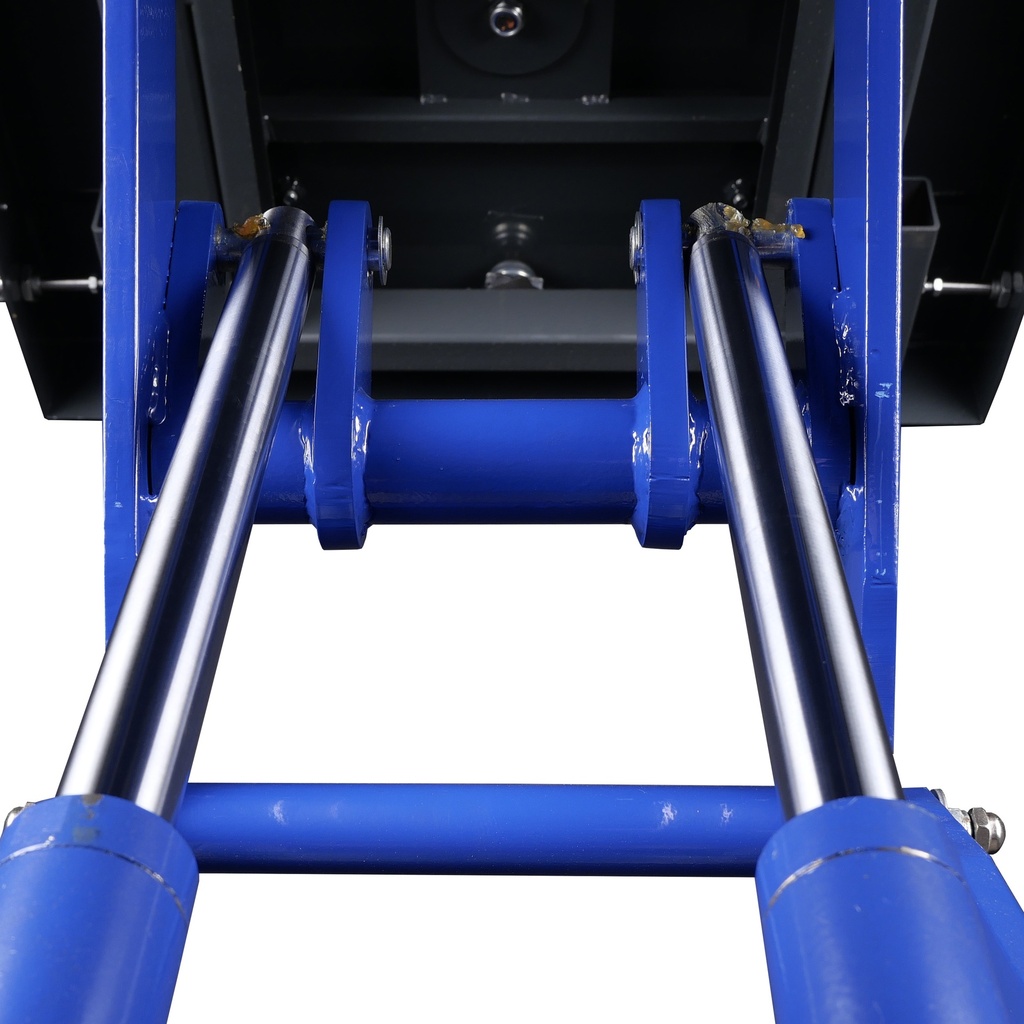

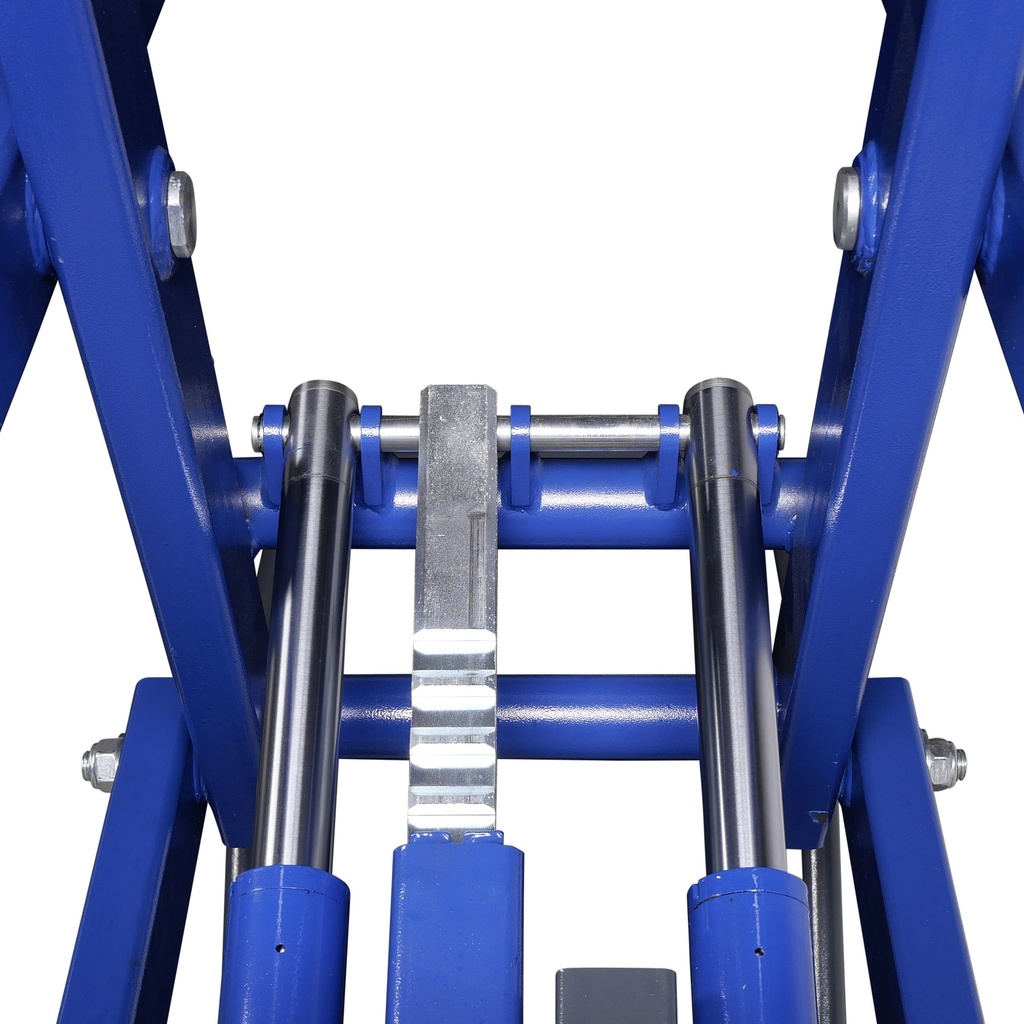

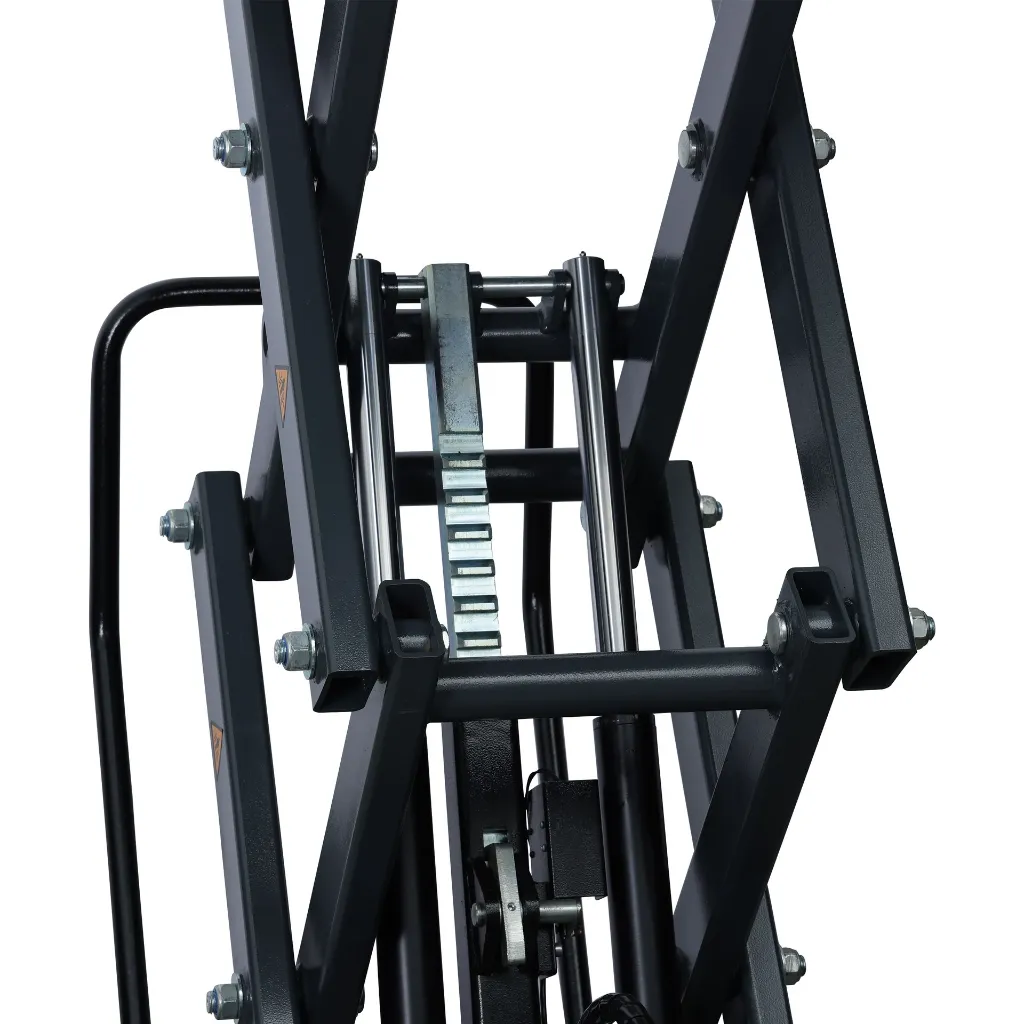

  • Double hydraulic cilinder plus Electyro-mechanical lock for extra safety

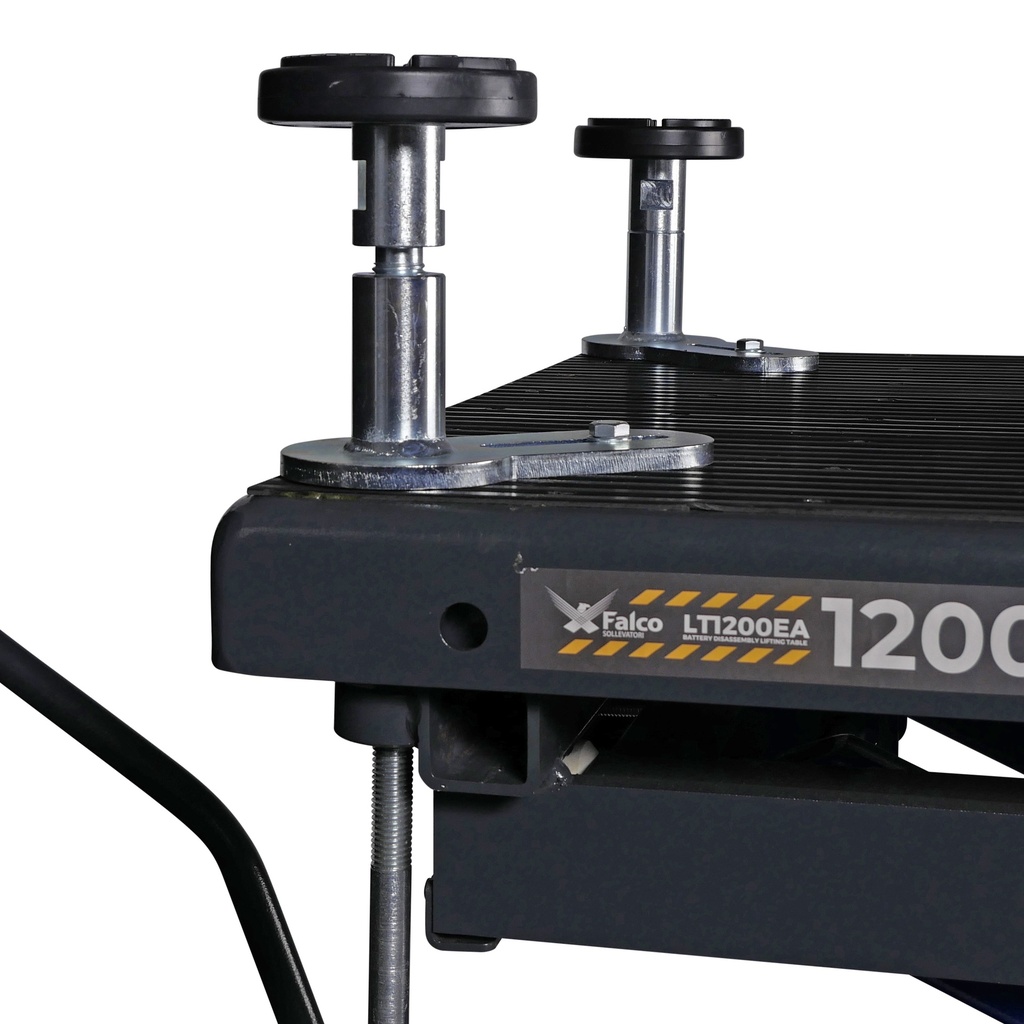

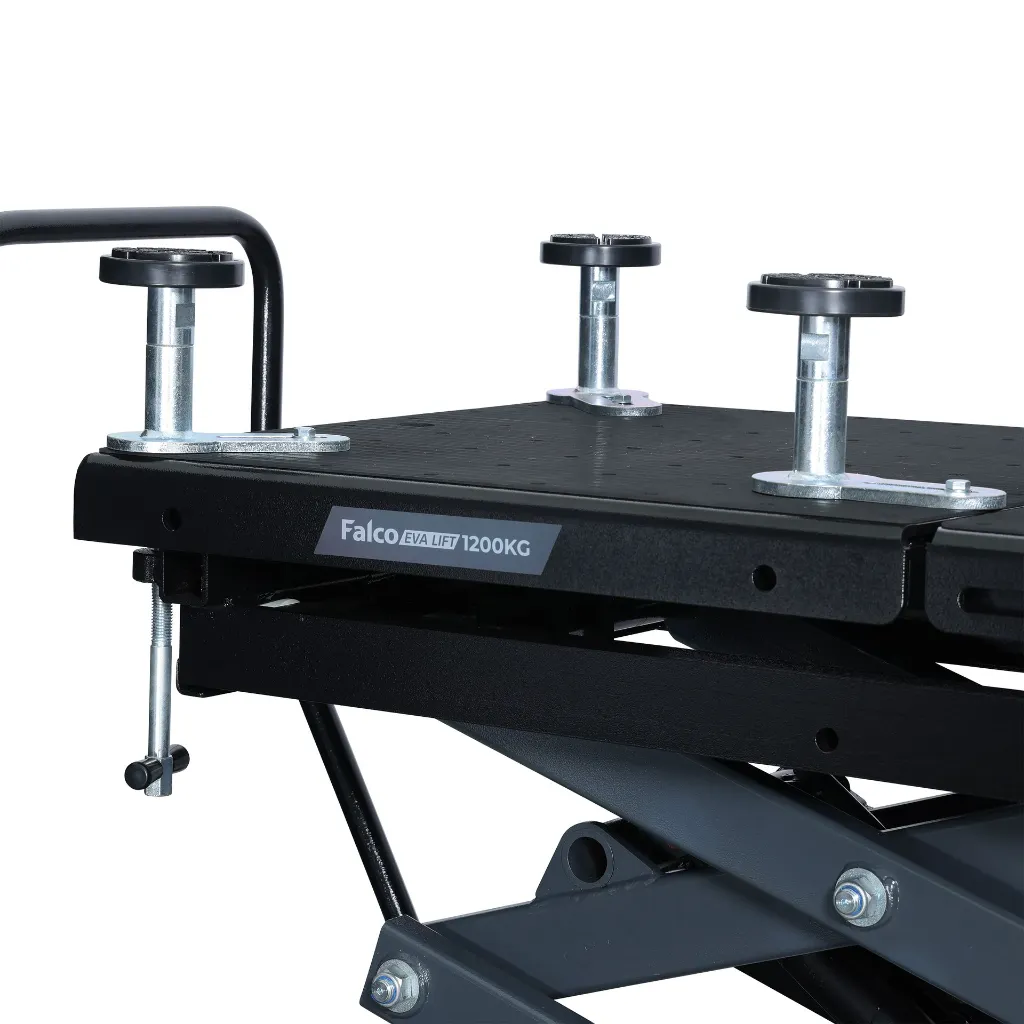

  • Incl 6 lifting pads with adjustable spindles

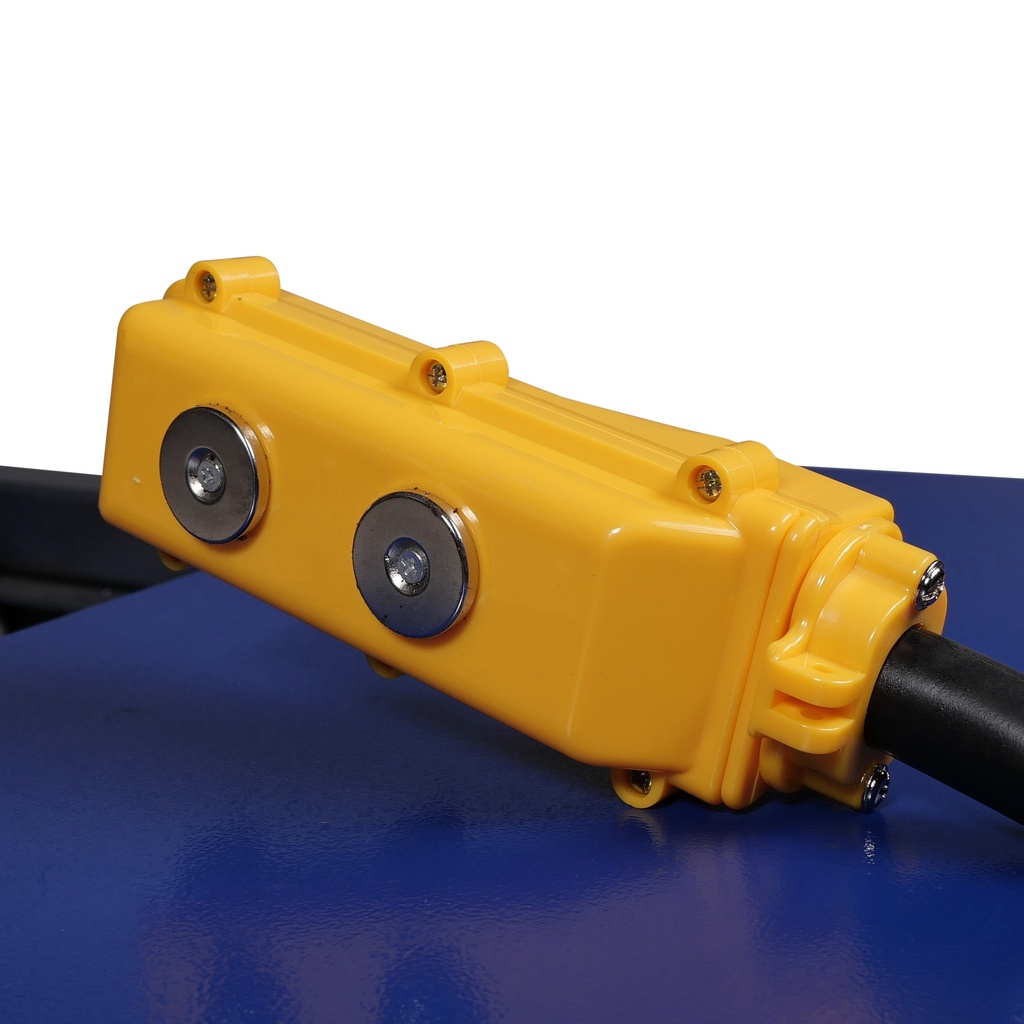

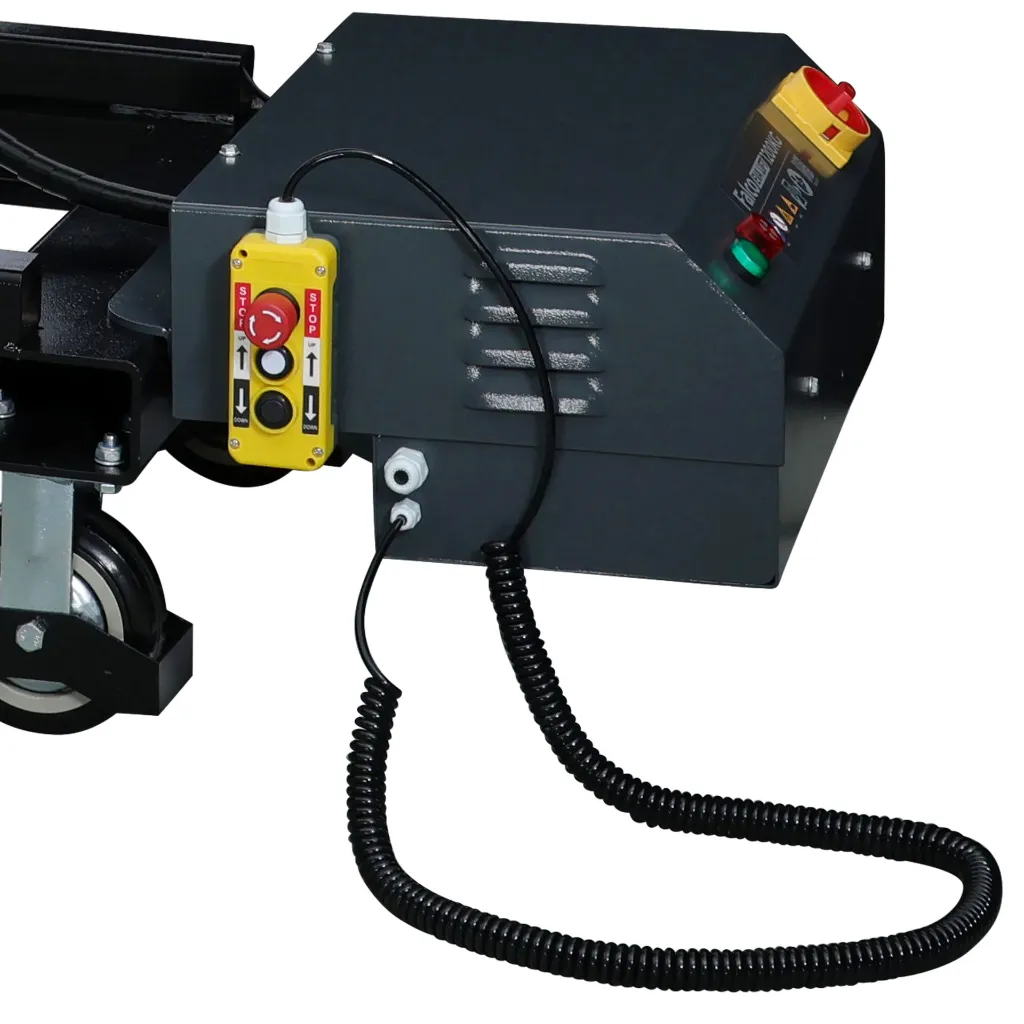

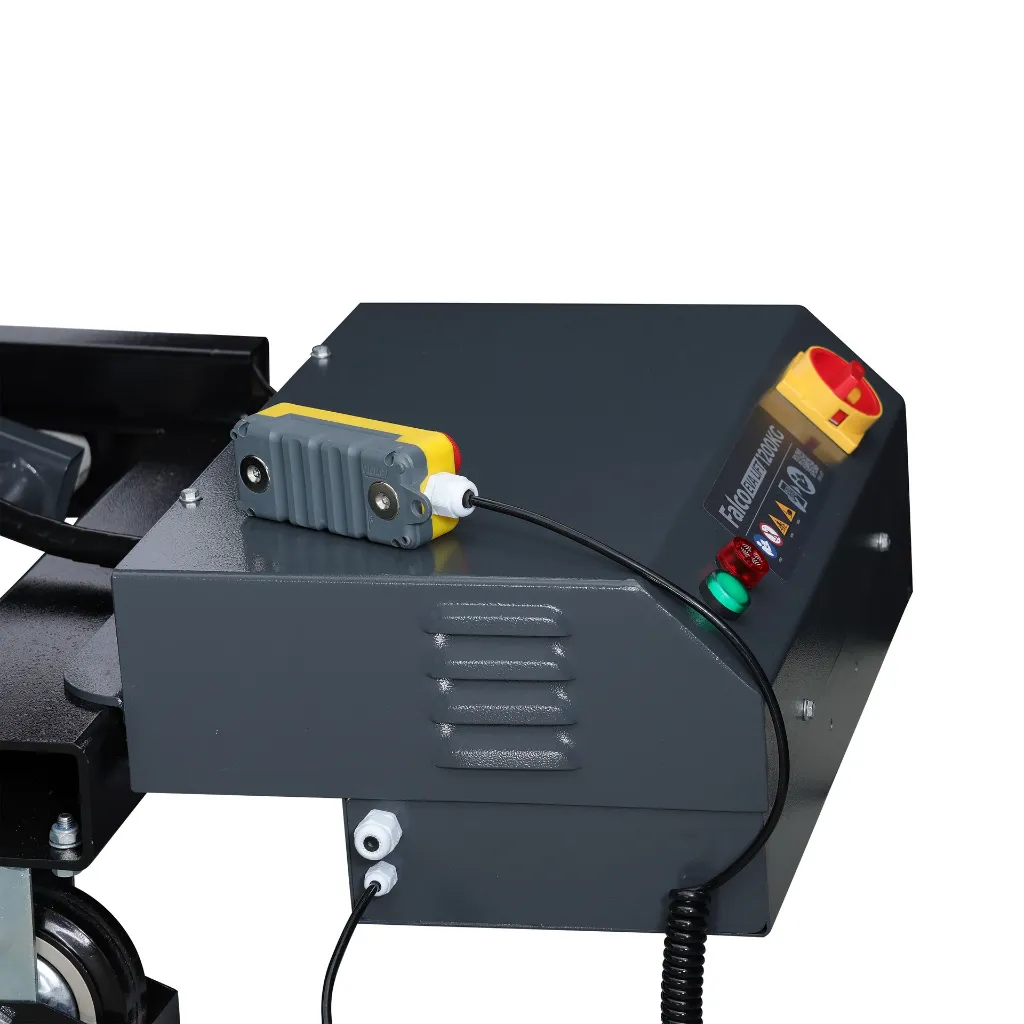

  • Easy to use control unit incl magnetic holder for optimal postioning
  • Insulated table top and lifting adapters for safety while working on electric cars

Mobile scissor lift table for EVA car battery engine and transmission exchange 1000kg

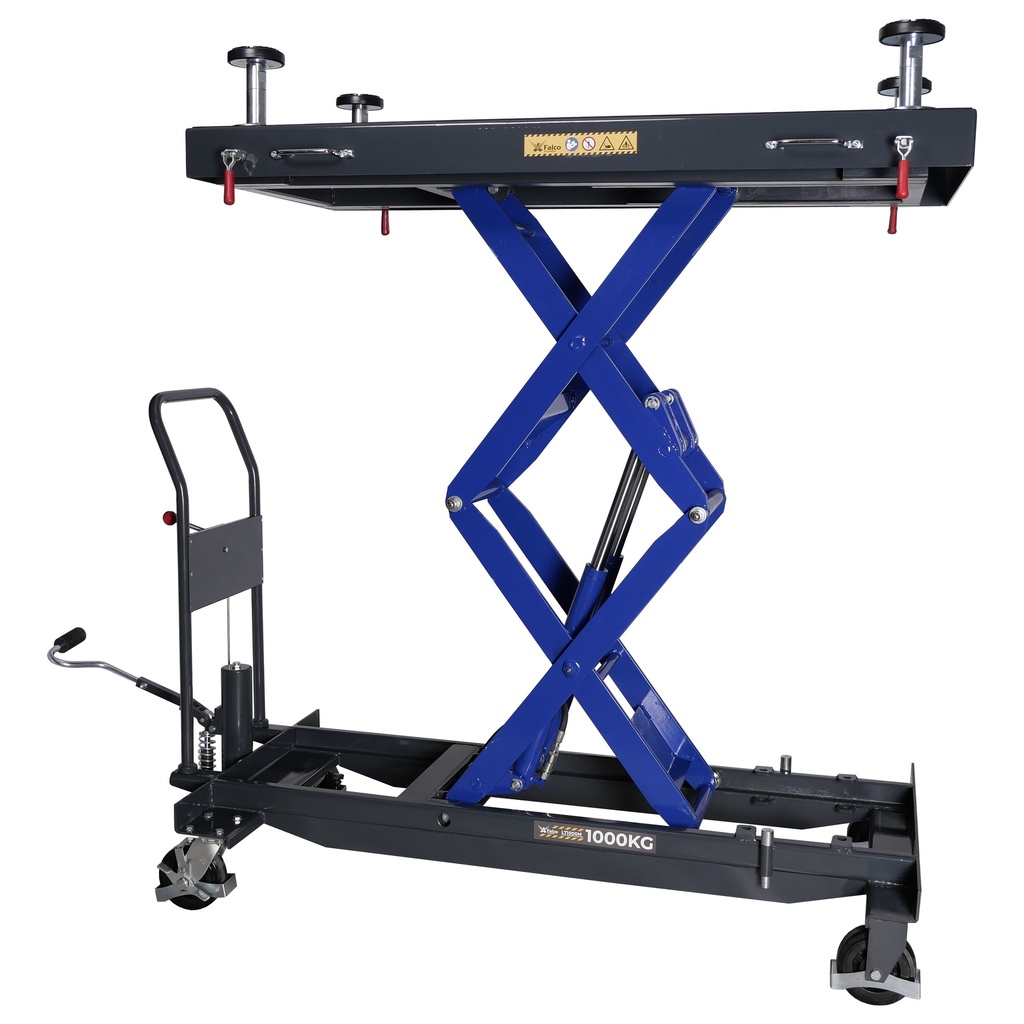

LT1000M

  • 1000kg lifting capacity
  • Foot pedal control

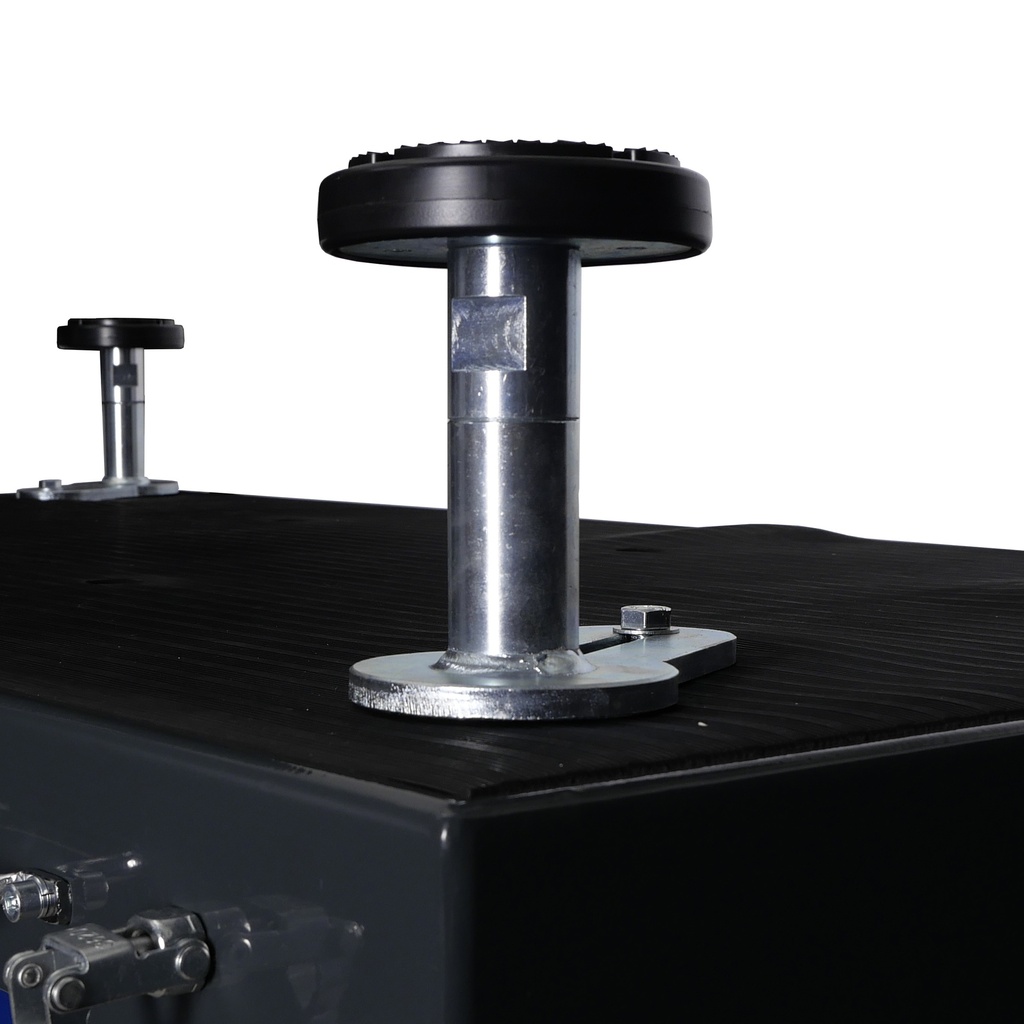

  • Incl 4 adjustable lifting pads
  • Ideal for electric car batteries
  • Isulated table top

Specifications:

  • Lifting capacity 1000 kg

  • Platform dimensions 800 x 1500 mm

  • Platform height min. (without pads / with pads) 525 / 680 mm

  • Platform height max. (without pads / with pads) 1680 / 1890 mm

  • Wheel size 150 x 50 mm

  • Dimensions 900.0mm x2150.0mm x1140.0mm

  • Weight 275.0Kg

Mobile scissor lift table / scissor lift / lift table / electro hydraulic scissor table lift table / Hydraulic scissor platform

LT1000M battery removal lift table from Falco a sturdy and reliable lift table that can handle heavy loads up to 1000kg.
This mobile lift has been specially developed for electric vehicles and is ideal for (dis)assembling engines, gearboxes, lithium-ion car battery packs and other chassis components. The lifting table is adjustable in height and with, so it has a flexible field of application.
With hydraulic foot control, you have full control over the lifting process.
The lift table is designed to provide ergonomic working height, reducing strain on your back and arms.
Perfect for lifting electric car batteries or other heavy objects in your workshop or garage.
The three-stage adjustable adapter allows you to customize the lift table to suit your specific needs.
