Ponts à colonnes

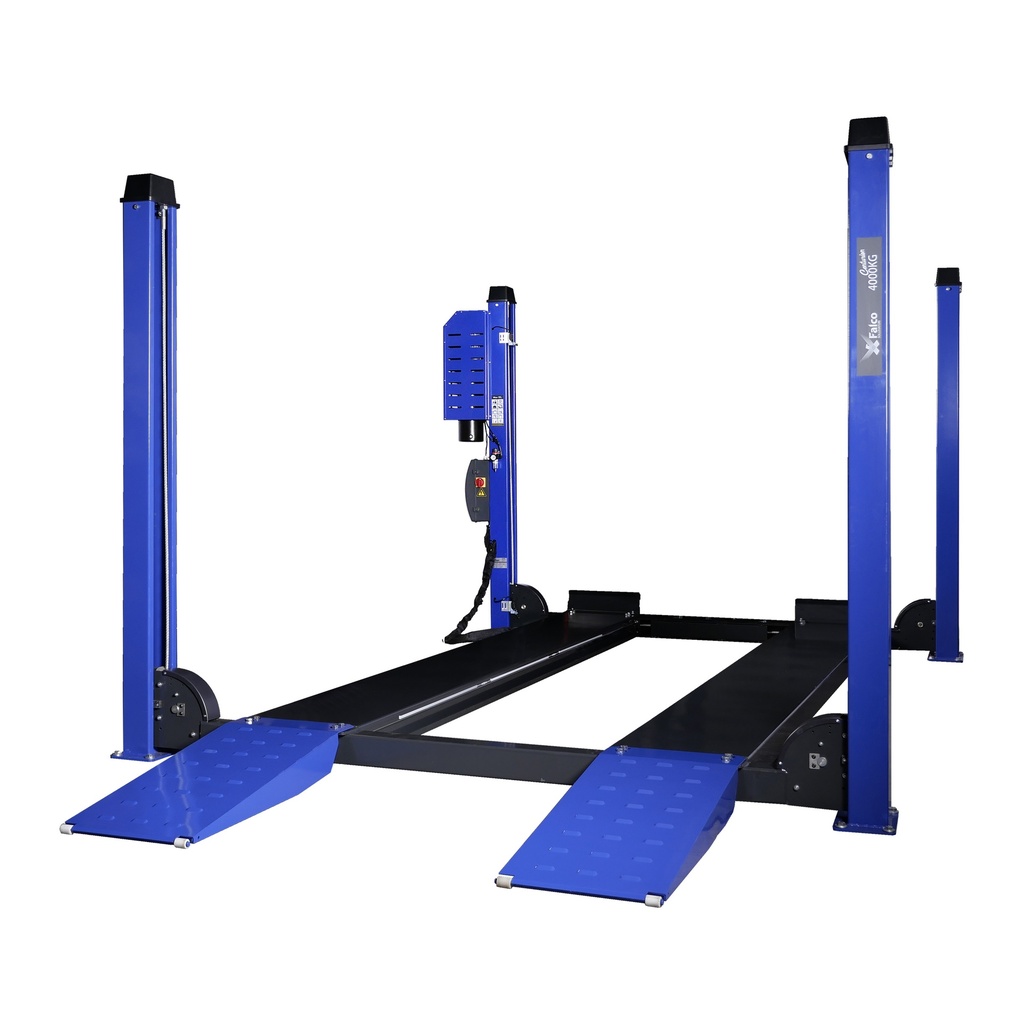

Four post lift 4000kg 4.5m Centurion
VL4K400V

  • Pump unit protective cover
  • Low ramp height
  • Passage width 2.7 m
  • High safety factor
  • Incl LED bridge lighting

Specifications:

  • Capacité de levage 4000 kg

  • Hauteur de levage min. 185 mm

  • Tension 230V - 1 Phase

  • Hauteur de levage max. 1850 mm

  • Longueur de la plate-forme, rampes incluses 4516 mm

  • Largeur des plates-formes 508 mm

  • Distance entre les plates-formes 900 mm

  • Type Olie CH32 / CH46

  • Capacité du moteur 2.2 kW

  • Durée de levage +/- 120 seconds

  • Hauteur des colonnes 2370 mm

  • Largeur de passage 2715 mm

  • Dimensions 5548.0mm x3019.0mm x2370.0mm

  • Weight 1080.0Kg

four post lift / alignment lift / four column lift / service lift / car lift / runway lift
This Falco Sollevatori four column lift bridge is of high quality and extremely suitable for professional use. At Falco lift bridges, quality and finish come first.
This 4 column lift bridge has the pump unit at the top of the column to save space. The model has a double locking system, which guarantees the safety of persons and equipment.
Thanks to its robust construction and well thought-out design, this 4-column lift bridge is equipped with the following handy features as standard:

  • Pneumatic central unlocking
  • Produced according to NEN 1493, suitable for APK
  • Adjustable driving lanes
  • Foot protection by acoustic signal
  • Including LED lighting
  • Rail for jacking beam installation

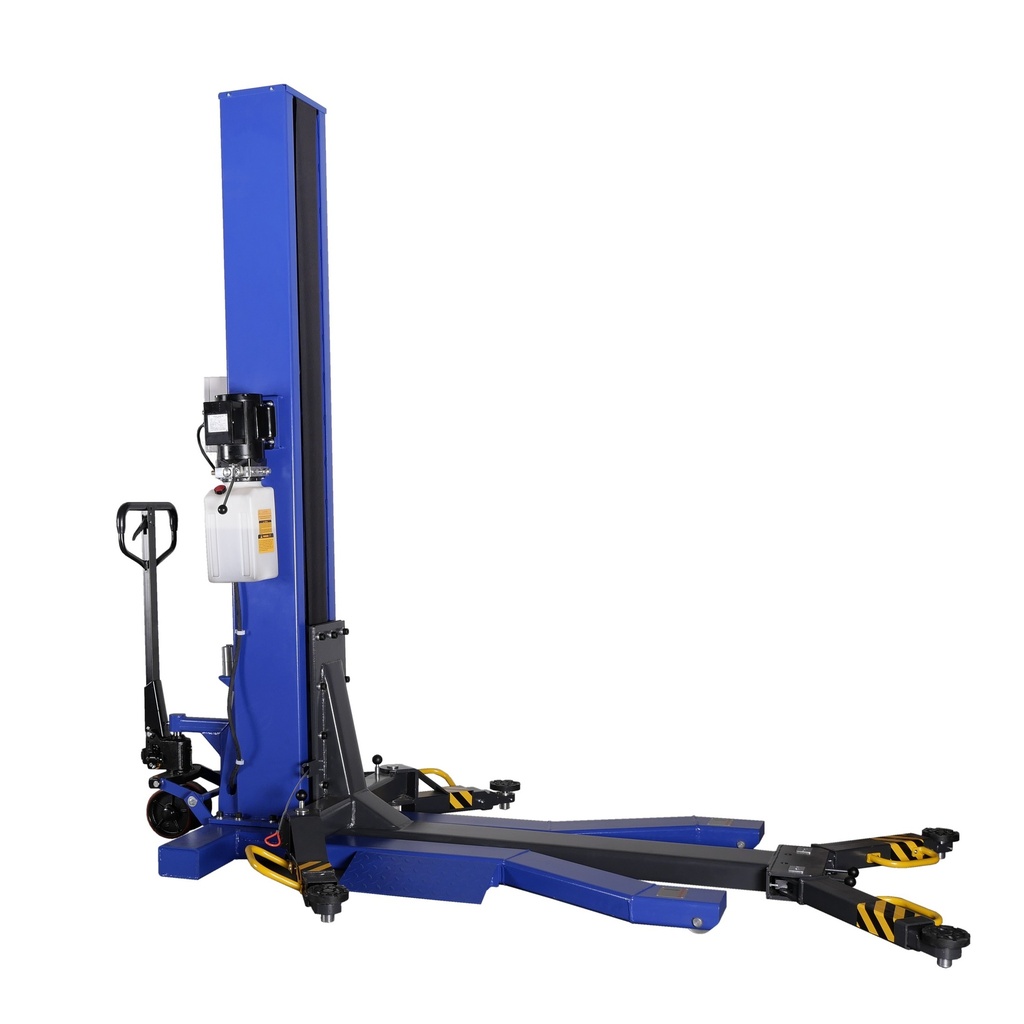

1 post lift 2500kg mobile
VL25F1



Specifications:

  • Capacité de levage 2500 kg

  • Hauteur de levage min. 90 mm

  • Tension 230V

  • Hauteur de levage max. 2040 mm

  • Type Olie CH32

  • Unité de contrôle de la tension 24 V

  • Capacité du moteur 2.2 kW

  • Bras de levage arrière 500 - 661 mm

  • Atteindre les bras de levage avant 560 - 863 mm

  • Durée de levage <55 sec.

  • Hauteur des colonnes 2600 mm

  • Dimensions 0.0mm x0.0mm x0.0mm

  • Weight 710.0Kg

Mobile single post lift

This Falco Sollevatori single post lift is of high quality and extremely suitable for professional use. The lift is thanks to its stable and solid design easy to place on a level surface and installation is not required due to the sturdy construction.
Every lift comes with a set of wheels, allowing to move the lift easily and use the workplace optimally.
Thanks to its unique design the lift is provided with the following standard features:

  • min. lift height of 90mm

  • in height adjustable lifting pads with double thread

  • automatic arm lock

  • telescopic extendable lifting arms

  • automatic detent

  • protective cap on the inside of the column

  • transparent oil reservoir incl. oil level

  • robust column manufactured from rolled steel

  • hydraulic cylinder, no need to use a compressor / compressed air connection

  • foot protection

  • dead man's switch for lifting and lowering

  • shutdown when reached highest position

  • english instruction manual incl. maintenance protocol and CE certificate 2006/42/EG

  • meets the NEN-EN1493 safety standards

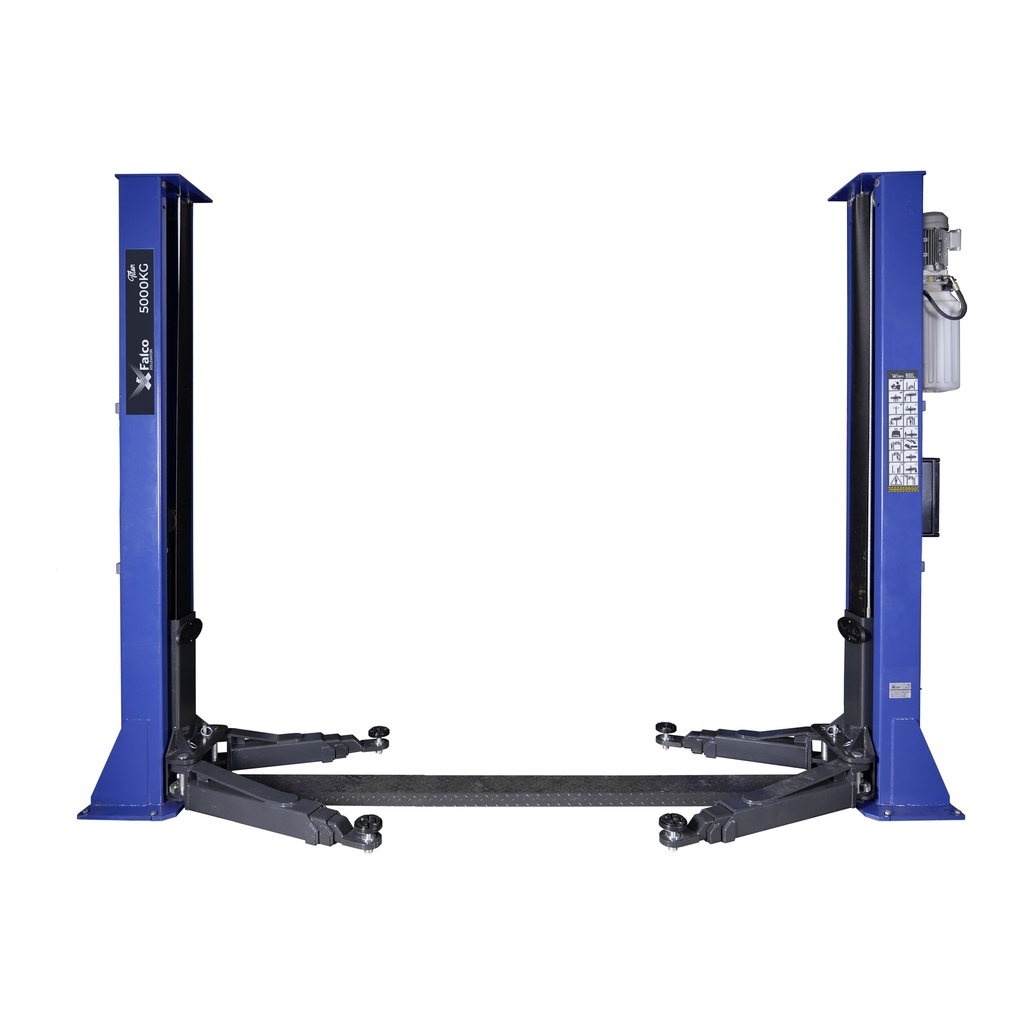

Two post lift 5000kg 400V Titan
VL50F400

  • 5000kg Capacity

  • Very large range

  • Fully automatic

  • Triple adjustable arms

  • Adjustable Double Spindle Pads


Specifications:

  • Capacité de levage 5000 kg

  • Hauteur de levage min. 105 mm

  • Tension 400V - 3 Phase

  • Hauteur de levage max. avec patins 1900 mm

  • Bras télescopique court 800 - 1500 mm

  • Bras télescopique long 1000 - 1950 mm

  • Type Olie CH32 / CH46

  • Capacité du moteur 2.2 kW

  • Hauteur des colonnes 2880 mm

  • Largeur de passage 3342 mm

  • Dimensions 4136.0mm x600.0mm x2930.0mm

  • Weight 1000.0Kg

Two column lift bridge / two pile bridge / 2 column lift bridge

Thanks to the well thought-out design of the Falco bridges, you save time and effort. The focus is on ease of use and an efficient work flow. The different models are developed for various applications. The Titan fully automatic model has a large range, is a very complete and reliable model, making the lift suitable for large vehicles in particular.

Features:

  • Large triple telescopic adjustable wishbones

  • Steel cable synchronization control (synchronization)

  • Quality hydraulic pump incl. cooling fins

  • 24V control box

  • Transparent oil reservoir incl. oil level

  • Foot protection incl. acoustic safety signal

  • Exit when reaching highest position

  • Height adjustable carrying pads with double spindles

  • Automatic wishbone lock

  • Fully automatic electric detent

  • Protective cap inside column

  • Robust columns made of rolled steel

  • Protective rubbers door stop

  • Hydraulic cylinder on both sides

  • Dead mans operation when lifting and lowering

  • Automatic overload protection

  • Height Limit Switch

  • Fixing kit floor mounting

  • Set of 70mm height adapters (4 pieces)

All Falco car bridges comply with the NEN-EN1493 safety standard and are supplied with a Dutch manual including maintenance protocol and CE certificate 2006/42/EG.

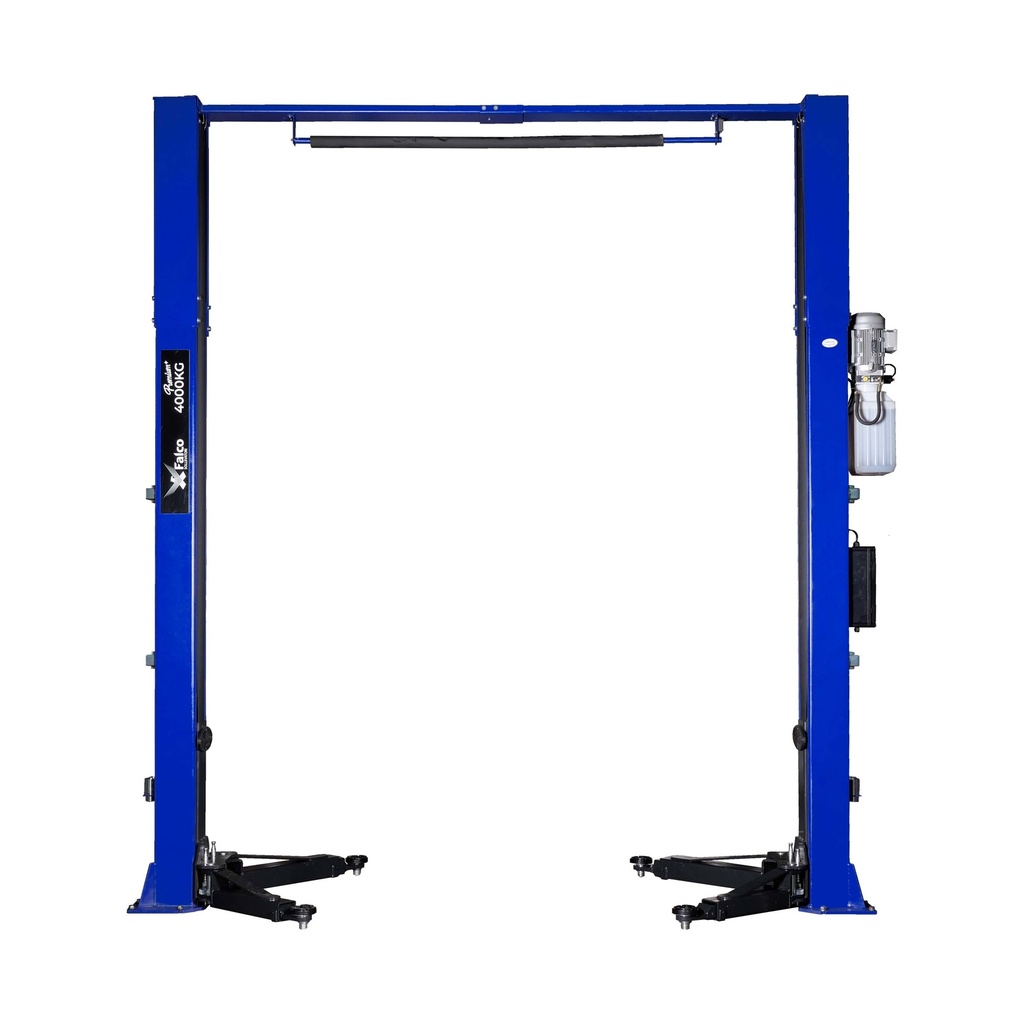

Two post lift 4000kg 400V floorless PremiumPlus
VL40F400B

  • Floorless / barrier-free

  • Fully automatic

  • Two and three way adjustable arms

  • Quality hydraulic pump

  • Adjustable Double Spindle Pads


Specifications:

  • Capacité de levage 4000 kg

  • Hauteur de levage min. 95 mm

  • Tension 400V - 3 Phase

  • Hauteur de levage max. avec patins 2050 mm

  • Bras télescopique court 625 - 932 mm

  • Bras télescopique long 825 - 1750 mm

  • Type Olie CH32

  • Capacité du moteur 2.2 kW

  • Hauteur des colonnes 2806 mm

  • Largeur de passage 2785 mm

  • Dimensions 3540.0mm x460.0mm x3756.0mm

  • Weight 680.0Kg

Two column lift bridge / two pile bridge / 2 column lift bridge

Thanks to the well thought-out design of the Falco bridges, you save time and effort. The focus is on ease of use and an efficient work flow. The different models are developed for various applications. The PremiumPlus is a fully automatic and barrier-free model, which makes this bridge very complete and suitable for a large number of different vehicles. The Falco Sollevatori Premium series has proven itself over the years as a very reliable and multi-usable bridge, for almost all common cars.

Characteristics:

  • Floorless / barrier-free

  • Double and triple telescopic adjustable wishbones

  • Steel cable synchronization control (synchronization)

  • Quality hydraulic pump incl. cooling fins

  • 24V control box

  • Transparent oil reservoir incl. oil level

  • Foot protection incl. acoustic safety signal

  • Exit when reaching highest position

  • Height adjustable carrying pads with double spindles

  • Standard elevated pickup buses

  • Automatic wishbone lock

  • Fully automatic electric detent

  • Shield inside column

  • chain guard

  • Robust columns made of rolled steel

  • Protective rubbers door stop

  • Hydraulic cylinder on both sides

  • Dead mans operation when lifting and lowering

  • Automatic overload protection

  • Height Limit Switch

  • 12 heavy M18 locking bolts

All Falco car bridges comply with the NEN-EN1493 safety standard and are supplied with a Dutch manual including maintenance protocol and CE certificate 2006/42/EG.

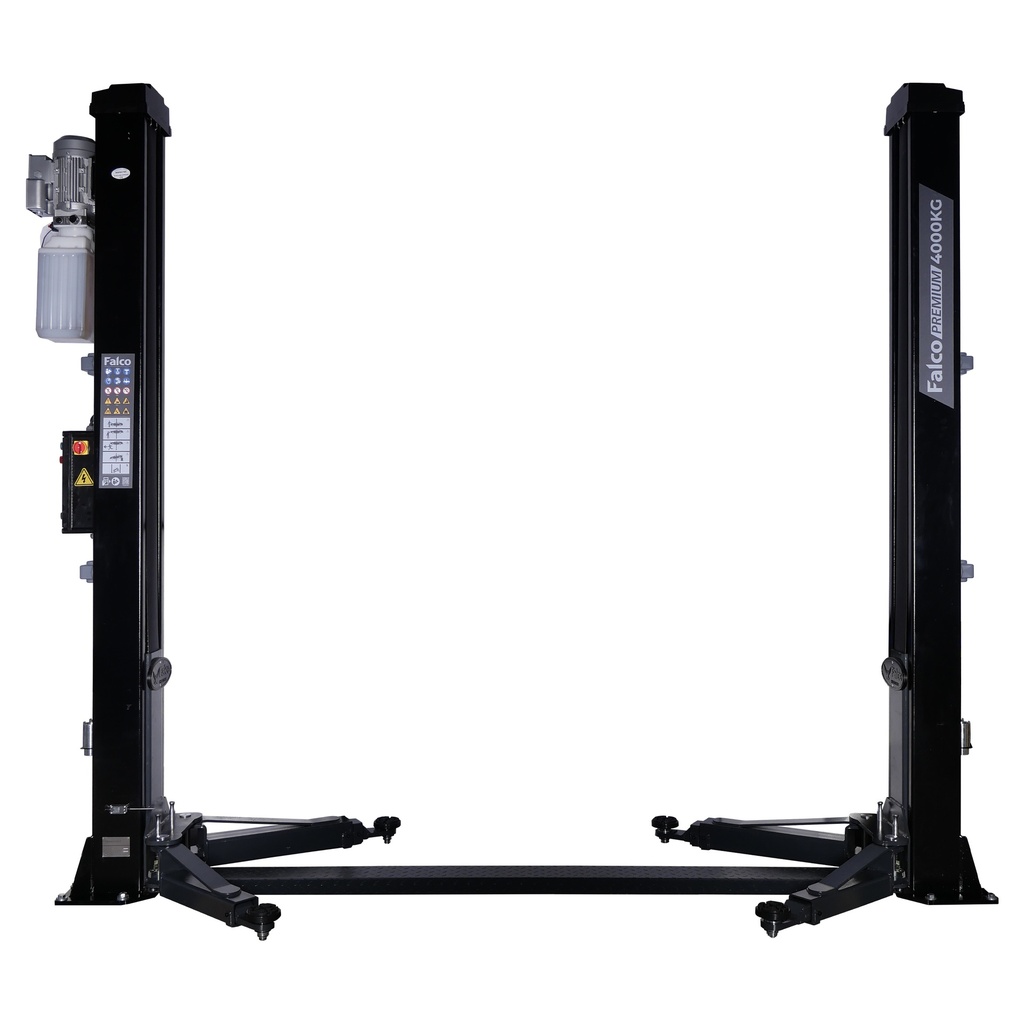

Two post lift 4000kg 230V Premium
VL35F230

  • Fully automatic

  • Double and triple extendable arms

  • Quality hydraulic pump

  • Adjustable rubber pads double spindle

  • Capacity of 4000kg


Specifications:

  • Capacité de levage 4000 kg

  • Hauteur de levage min. 100 mm

  • Tension 230V

  • Hauteur de levage max. 2050 mm

  • Bras télescopique court 630 - 930 mm

  • Bras télescopique long 830 - 1760 mm

  • Type Olie CH32

  • Capacité du moteur 2.2 kW

  • Hauteur des colonnes 2806 mm

  • Largeur de passage 2815 mm

  • Dimensions 2890.0mm x500.0mm x720.0mm

  • Weight 610.0Kg

Zwei Säulen Hebebühne

Thanks to the thoughtful design of Falco lifts, you save time and effort. The focus is on ease of use and efficient work flow. The different models are developed for various applications.

The "Premium" fully automatic model is a very complete and reliable model, making the lift suitable for a large number of vehicles.

Features:

  • double and triple telescopic extendable lifting arms

  • steel cable synchronization control

  • quality hydraulic pump incl. cooling fins

  • clear oil reservoir incl, oil level

  • foot protection incl. acoustic security signal

  • turns off when the highest position is reached

  • in height adjustable lifting pads with double spindles

  • automatic support arm locking

  • fully automatic electric detent

  • protective caps on the inside of the columns

  • protective rubbers door stop

  • robust columns manufactured from rolled steel

  • hydraulic cylinder on both sides

  • extreme low threshold of 45mm

  • dead man's switch for lifting and lowering

  • automatic protection against overcharge

  • height limit switch

  • 12 heavy M18 security bolts

All of Falco's car lifts comply with the NEN-EN1493 safety standard and are supplied with a Dutch manual including maintenance protocol and CE certificate 2006/42/EC.

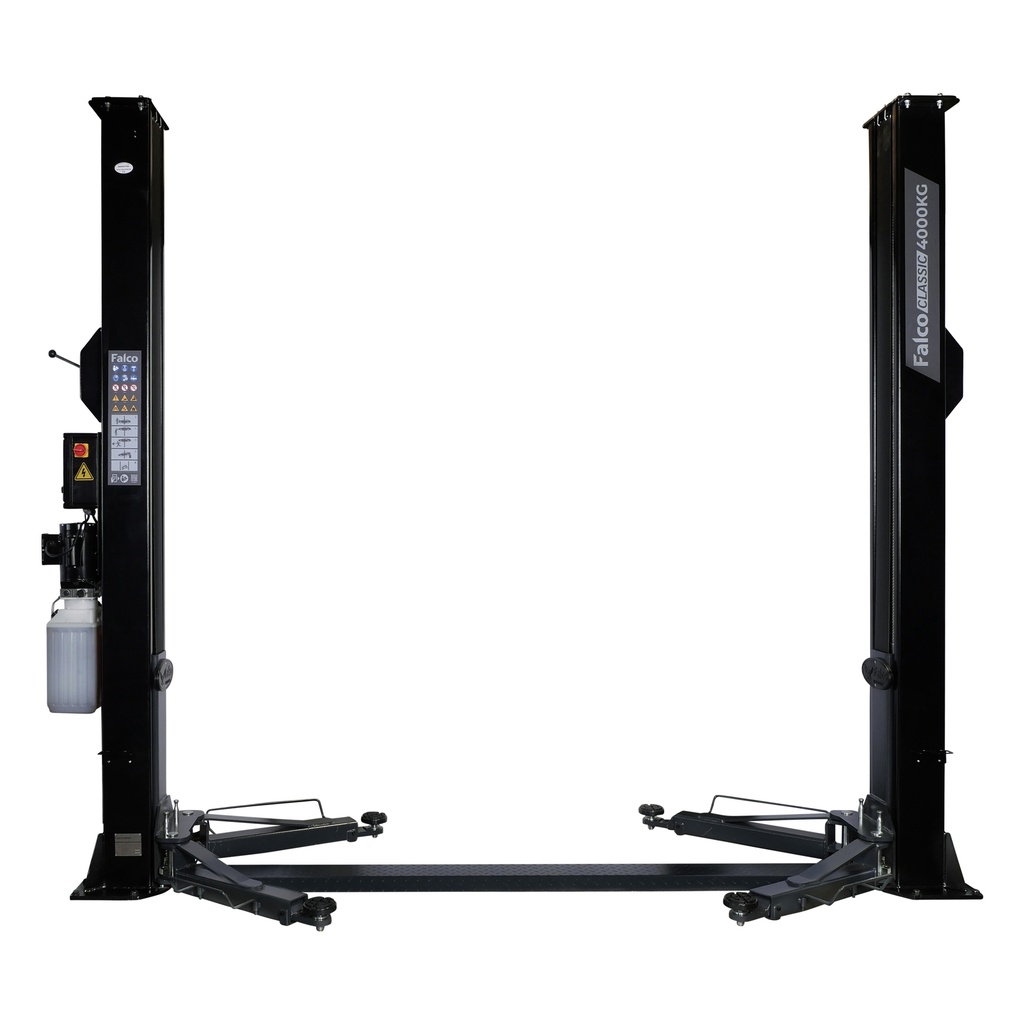

Two post lift 4000kg 230V Classic
VL35F230B

  • Sync lock system

  • Capacity of 4000kg

  • Extremely low threshold of 45mm

  • 12x heavy M18 locking bolts


Specifications:

  • Capacité de levage 4000 kg

  • Hauteur de levage min. 95 mm

  • Tension 230V - 1 Phase

  • Hauteur de levage max. 2000 mm

  • Bras télescopique court 600 - 870 mm

  • Bras télescopique long 840 - 1320 mm

  • Type Olie CH32

  • Capacité du moteur 2.2 kW

  • Hauteur des colonnes 2850 mm

  • Largeur de passage 2815 mm

  • Dimensions 3440.0mm x700.0mm x2850.0mm

  • Weight 610.0Kg

Two post lift / two colum lift

Thanks to the thoughtful design of Falco lifts, you save time and effort. The focus is on ease of use and efficient work flow. The different models are developed for various applications.
The "Classic" model is a very and succesful and reliable model. Due to its simple but sturdy structure, the lift has no weak superfluous components and is extremely durable. Thanks to the new manual sync lock system, the lift can easily be unlocked on both sides with just one action.

Features:

  • double telescopic extendable lifting arms

  • sync lock system

  • good quality hydraulic pump

  • in height adjustable lifting pads

  • automatic support arm locking

  • fully automatic electric detent

  • protective rubbers door stop

  • foot protection at every lifting arm

  • protective caps on the inside of the columns

  • robust columns manufactured from rolled steel

  • hydraulic cylinder on both sides

  • extreme low threshold of 45mm

  • dead mans switch for lifting and lowering

  • automatic protection against overcharge

  • height limit switch

  • 12 heavy M18 security bolts

All of Falco's car lifts comply with the NEN-EN1493 safety standard and are supplied with a Dutch manual including maintenance protocol and CE certificate 2006/42/EC.
