Scissor lifts

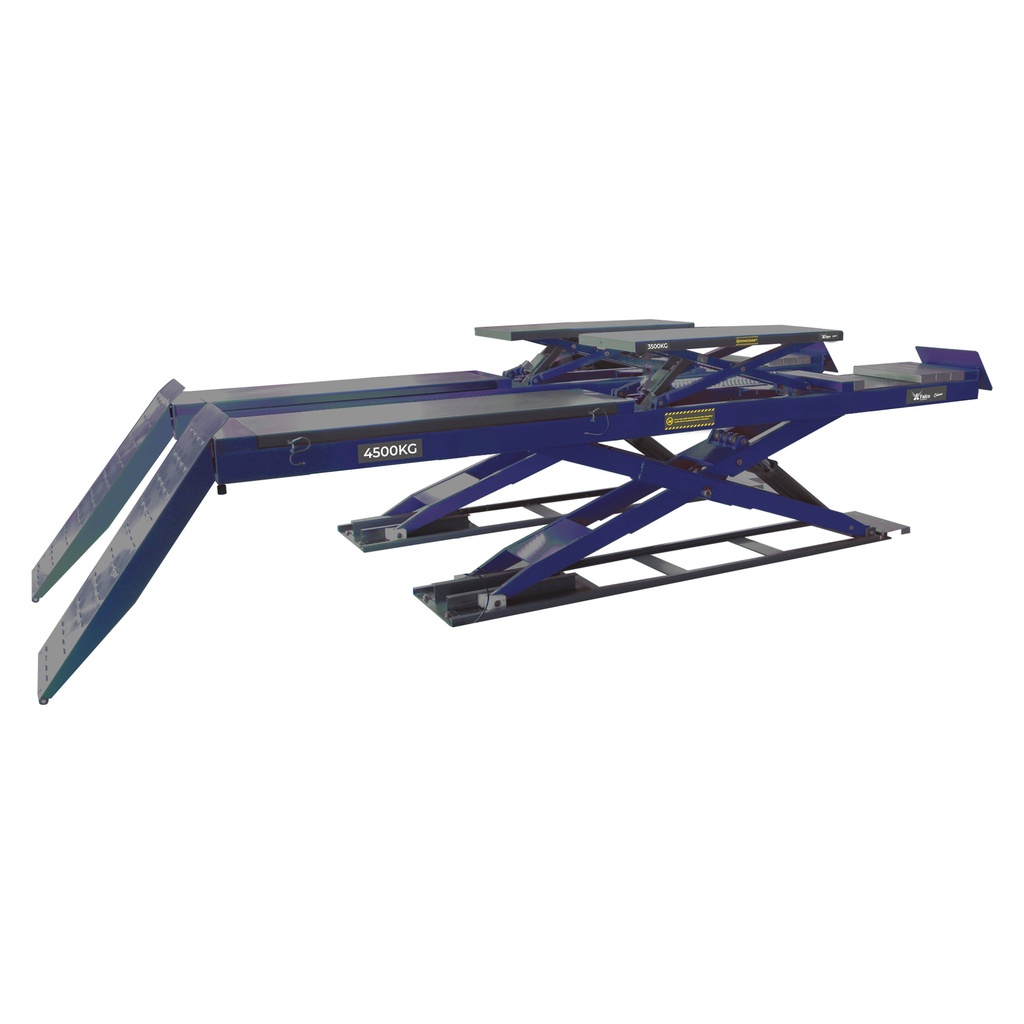

Double scissor lift alignment 4500kg 400V
VL9245ALL

  • Lift capacity 4500kg
  • Accessible all around
  • Extendable platforms up to 2250mm
  • Additional scissor availability
  • Suitable for extra low cars

Specifications:

  • Lifting capacity 4500 kg

  • Lifting height range 65 - 450 mm

  • Voltage 400V

  • Lifting height max. incl. pads 2250mm

  • Ramp height min. 240 mm

  • Oil type CH32 / CH46

  • Lane length 4800 mm

  • Lane width 600 mm

  • Motor capacity 3 kW

  • Sub lifting capacity 3500 kg

  • Dimensions 5660.0mm x2190.0mm x2250.0mm

  • Weight 2380.0Kg

fully automatic double scissor lift / scissor bridge / scissor lift / scissor lift
This Falco Sollevatori double scissor lift is of high quality and extremely suitable for professional use. At Falco lift bridges, quality and finish come first.

This alignment model is equipped with a bridge jack, turntables and long rear wheel plates. With the aid of the bridge jack, wheel-free lifting is possible up to a height of 450 mm above the roadways.

Due to the long carriageways of 4.8m, the bridge is suitable for small and large passenger cars, buses and heavier commercial vehicles.

Thanks to its robust construction and well thought-out design, this double scissor bridge is equipped with the following handy features as standard:

  • Long lanes of 4.8 meters
  • Bridge jack for wheel-free lifting with a lifting range from 65 to 450mm
  • Roadways with built-in turntables and rear wheel plates
  • Electric Hydraulic Double Transpump
  • Equipped with four powerful hydraulic cylinders
  • Automatic venting by means of vent button
  • Automatic sync
  • Automatic overload protection
  • Ramps with anti-slip profile
  • Control valve for controlling the speed when descending
  • Limit sensors for limiting the maximum lift height and the minimum safety height
  • Dead mans operation when lifting and lowering
  • Foot protection incl. acoustic safety signal
  • Dutch manual incl. maintenance protocol and CE certificate 2006/42/EG
  • Complies with the NEN-EN1493 safety standard

Technical specifications:

  • capacity = 4500kg
  • minimum ramp height = 240mm
  • maximum lifting height = 1800mm (2250mm including bridge jack)
  • length of lanes = 4800mm
  • lane width = 600mm
  • lifting range bridge jack = 65 - 450mm
  • reach bridge jack lifting arms = 1450 - 1900mm
  • voltage = 400V
  • motor power = 3kW

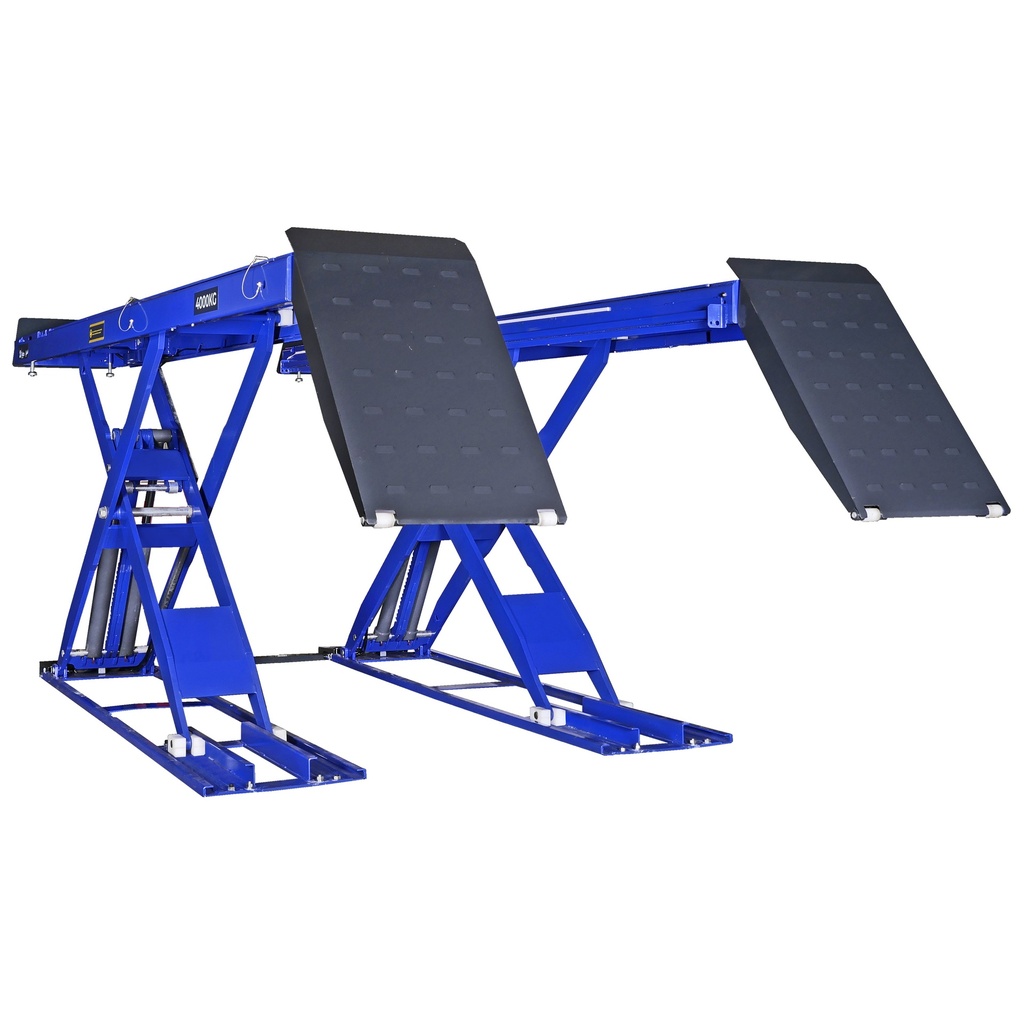

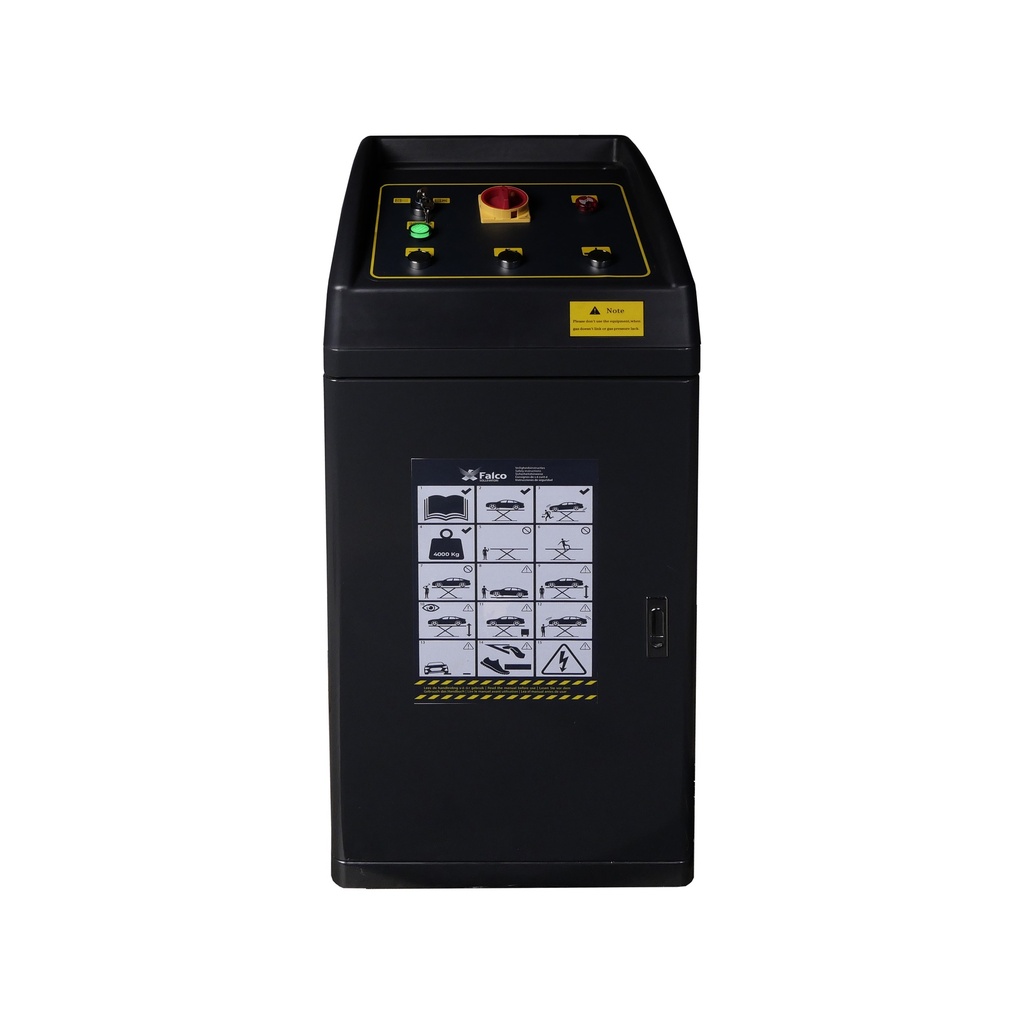

Scissor lift alignment 4000kg 400V
VL9240AL

  • Lift capacity 4000kg
  • Accessible all around
  • incl Rails for optional Jacking Beam
  • Suitable for low cars
  • incl LED light kit

Specifications:

  • Lifting capacity 4000 kg

  • Voltage 400V - 3 Phase

  • Lifting height max. 1800 mm

  • Ramp height min. 210 mm

  • Oil type CH32 / CH46

  • Lane length 4500 mm

  • Lane width 630 mm

  • Motor capacity 3 kW

  • Dimensions 5325.0mm x2220.0mm x2230.0mm

  • Weight 1980.0Kg

fully automatic scissor lift / scissor bridge / scissor lift
Thanks to the thoughtful design of Falco lifts, you save time and effort. The focus is on ease of use and efficient work flow. The different models are developed for various applications.
This Falco Sollevatori scissor lift is of high quality and suitable for professional use. At Falco Sollevatori quality and finish come first.
The overall design is very suitable for supporting lift vehicles, wheel alignment, runout processes for 3D wheel alignment and body inspection, and maintenance services.
Minimal size for lift in lowest position suitable for lifting low-profile vehicles. Also ideal for placing on the floor use and installation.
Due to the long carriageways of 4.5m, the lift is suitable for small and large passenger cars, buses and heavier commercial vehicles.
The hydraulic system is equipped with 4 hydraulic cylinders and an extra mechanical safety system. It’s more secure and reliable thanks to its robust construction and well thought-out design, this scissor lift is equipped with the following handy features as standard:

  • Long lanes of 4.5 meters
  • Minimum height is only 210mm, ideal for on ground installation
  • Roadways equipped with alignment plates
  • Electric Hydraulic Double Transpump
  • The lift is suitable for both on floor and in floor installations
  • Equipped with four powerful hydraulic cylinders
  • Control system uses printing PCB and Siemens electrical parts
  • Automatic air bleading function
  • Automatic synchronization system
  • Automatic overload protection
  • Ramp with anti-slip profile
  • Control valve for controlling the speed when descending
  • Limit sensors for limiting the maximum lift height and the minimum safety height
  • Dead man's operation when lifting and lowering
  • Foot protection incl. acoustic safety signal
  • Dutch manual incl. maintenance protocol and CE certificate 2006/42/EG
  • Complies with the NEN-EN1493 safety standard

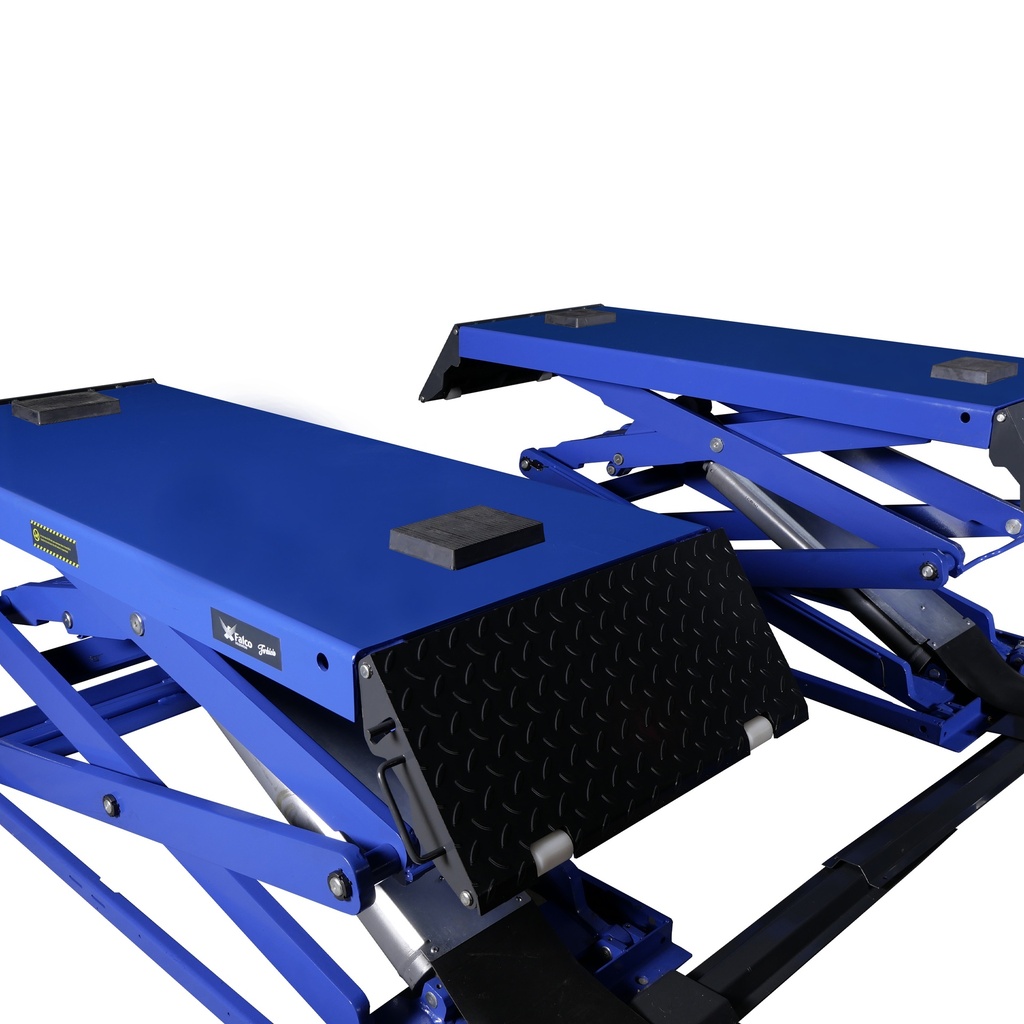

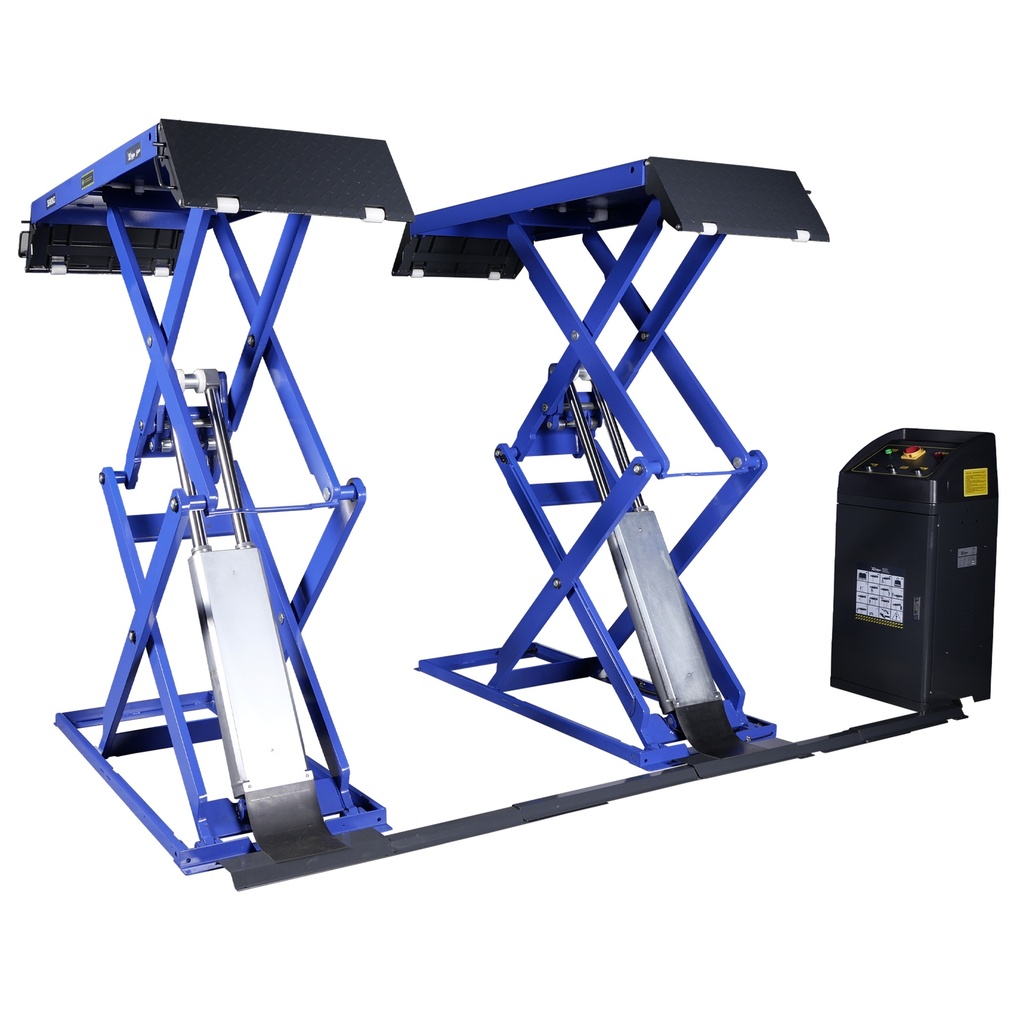

Double scissor lift master-slave 3500kg 400V
VL8235A

  • High lifting capacity 3500 kg
  • Max. lifting height 1965 mm
  • Master-slave syste: lift is safe in any position
  • Adjustable wide ramps / extensions
  • Automatic overload protection

Specifications:

  • Lifting capacity 3500 kg

  • Lifting height min. 110 mm

  • Voltage 400V - 3 Phase

  • Lifting height max. incl. pads 1995 mm

  • Platform length incl. ramps 2045 mm

  • Platform width 630 mm

  • Distance between the platforms 900 mm

  • Oil type CH32 / CH46

  • Motor capacity 3 kW

  • Lifting time 35 sec.

  • Dimensions 2042.0mm x2160.0mm x1900.0mm

  • Weight 840.0Kg

fully automatic scissor lift / scissor lift / double scissor bridge / auto lift / auto lift bridge / scissor bridge
This Falco Sollevatori double scissors lift is of high quality and suitable for professional use. With Falco lifts, quality and finishing go first.
Equipped with no less than four hydraulic cylinders (two per platform), this lift has a master-slave lifting system. This means that the lift is safe in any position and does not have to be lowered before work on the car can be done. It is also not necessary to first raise the lift to get out of the locking system, making the lift much easier to use and suitable for more applications than mechanically locked lifts.
Thanks to its robust construction and thoughtful design, this double scissor lift is standard equipped with the following convenient features:

  • total platform length of 2042mm
  • master-slave hydraulic system
  • electro-hydraulic lift with 4 cylinders
  • automatic air bleeding function
  • photocell for safety and platform synchronisation
  • low profile with minimum lifting height of 110mm
  • automatic synchronisation
  • automatic overload protection
  • control valve for controlling the speed when dropping
  • limit sensor for limiting the maximum lifting height and the minimum safety height
  • deadman operation when lifting and lowering
  • foot protection including acoustic protection signal
  • deliverd incl 4pcs 25mm lifting blocks and 4pcs 65mm lifting blocks
  • Dutch manual including maintenance protocol and CE certificate 2006/42/EG
  • homologated and certified product according to EN1493:2010

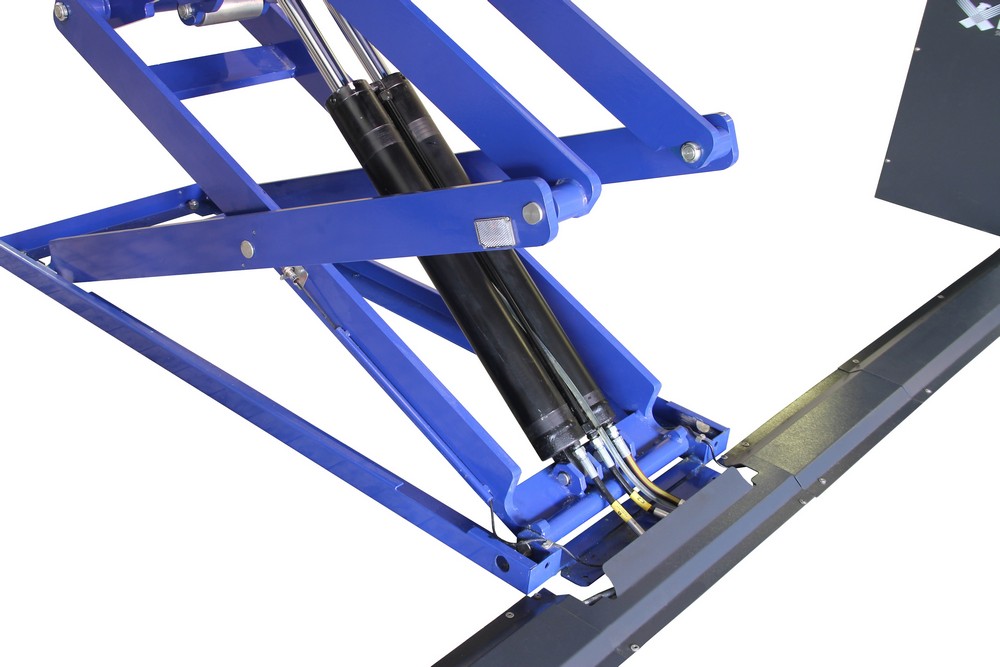

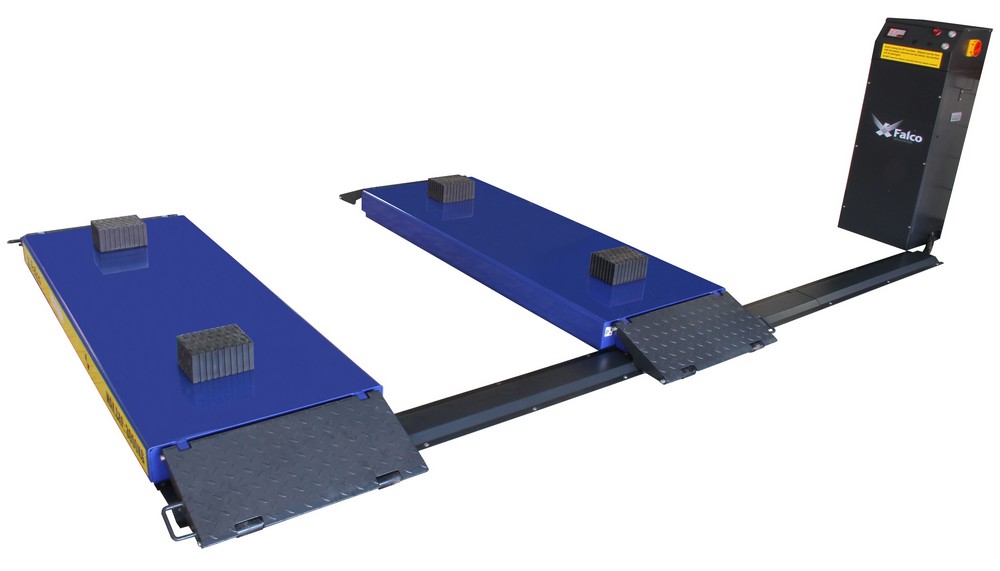

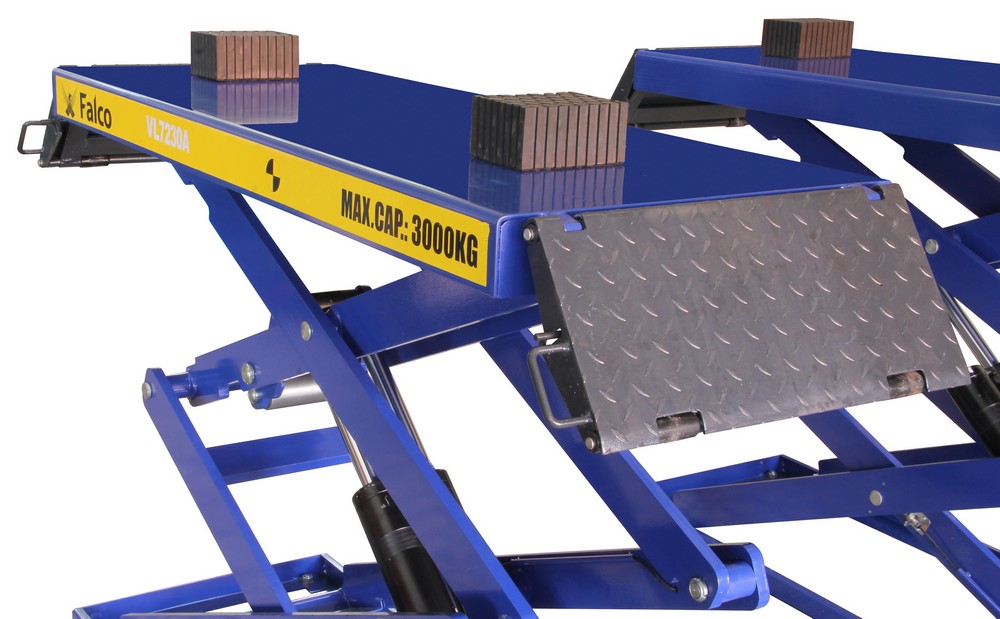

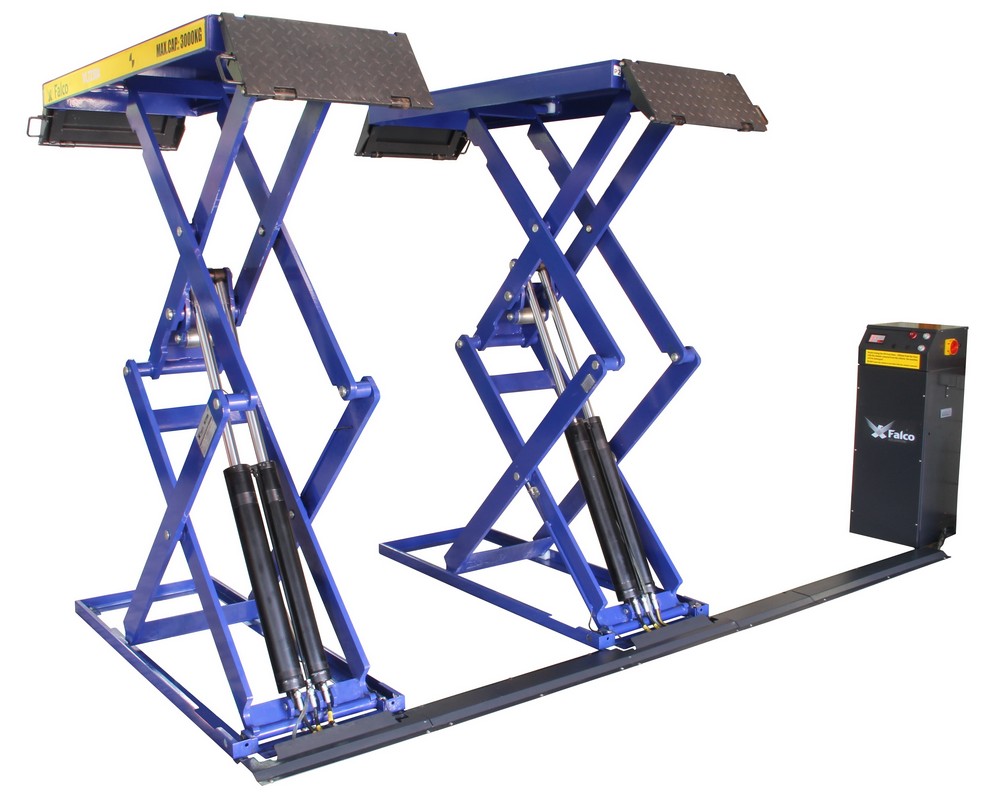

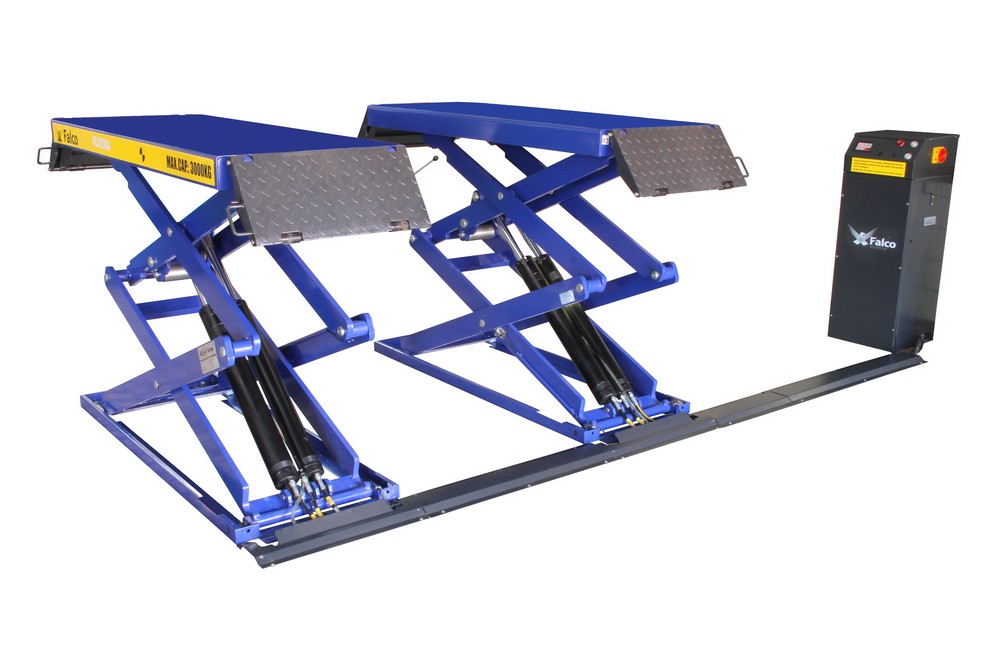

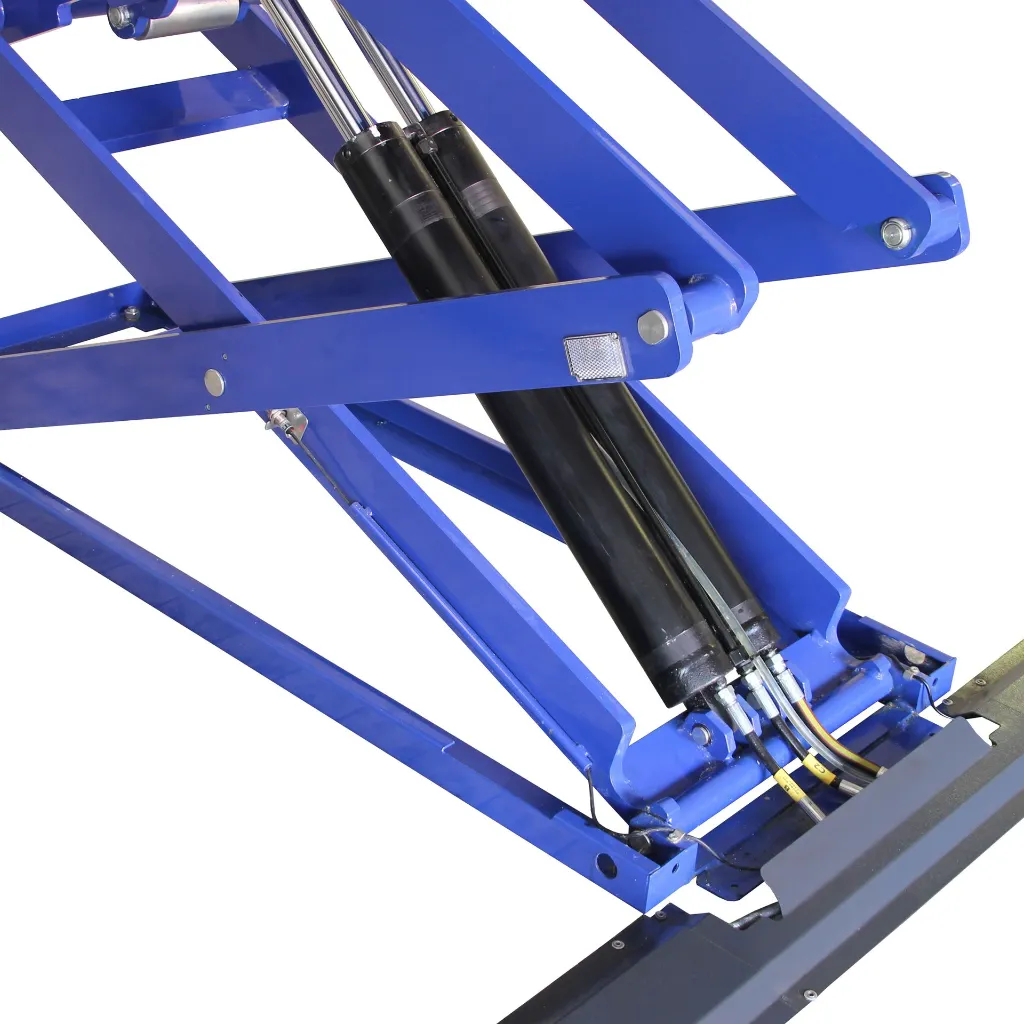

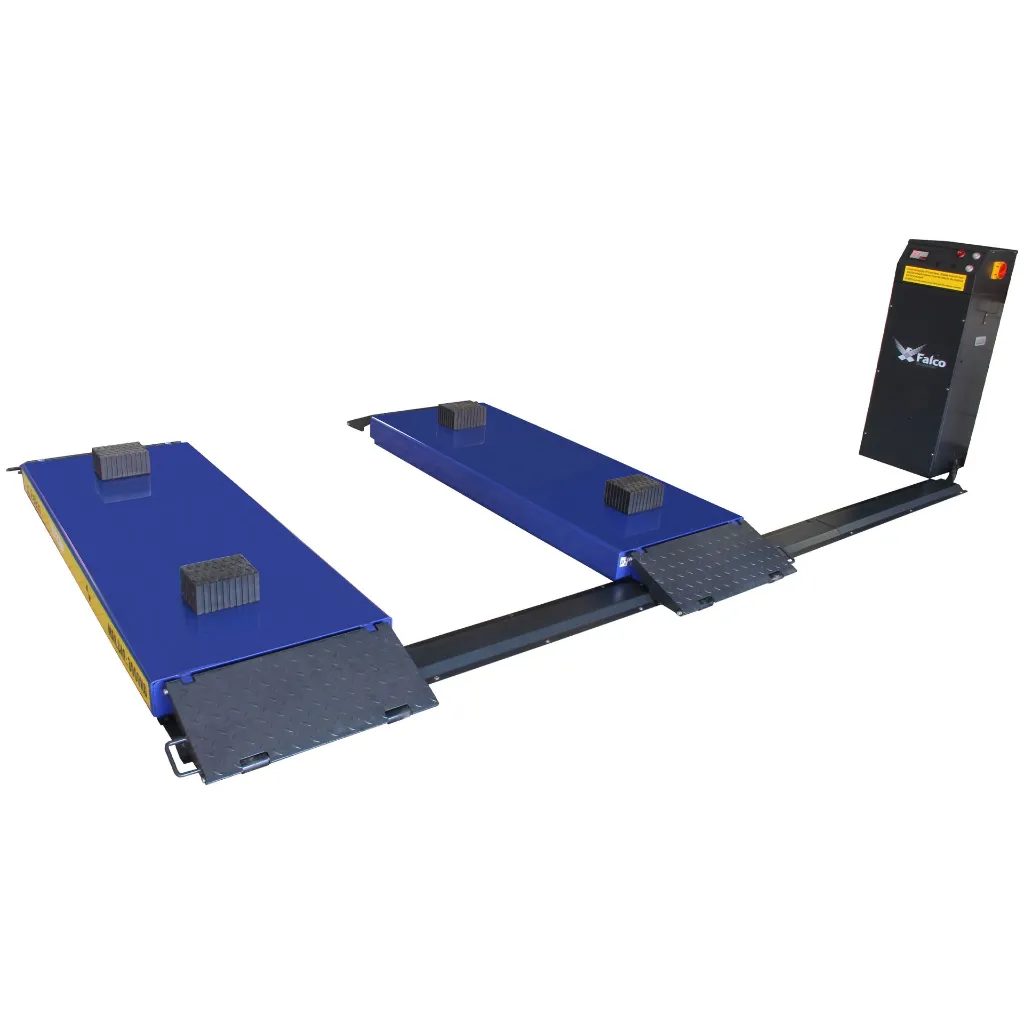

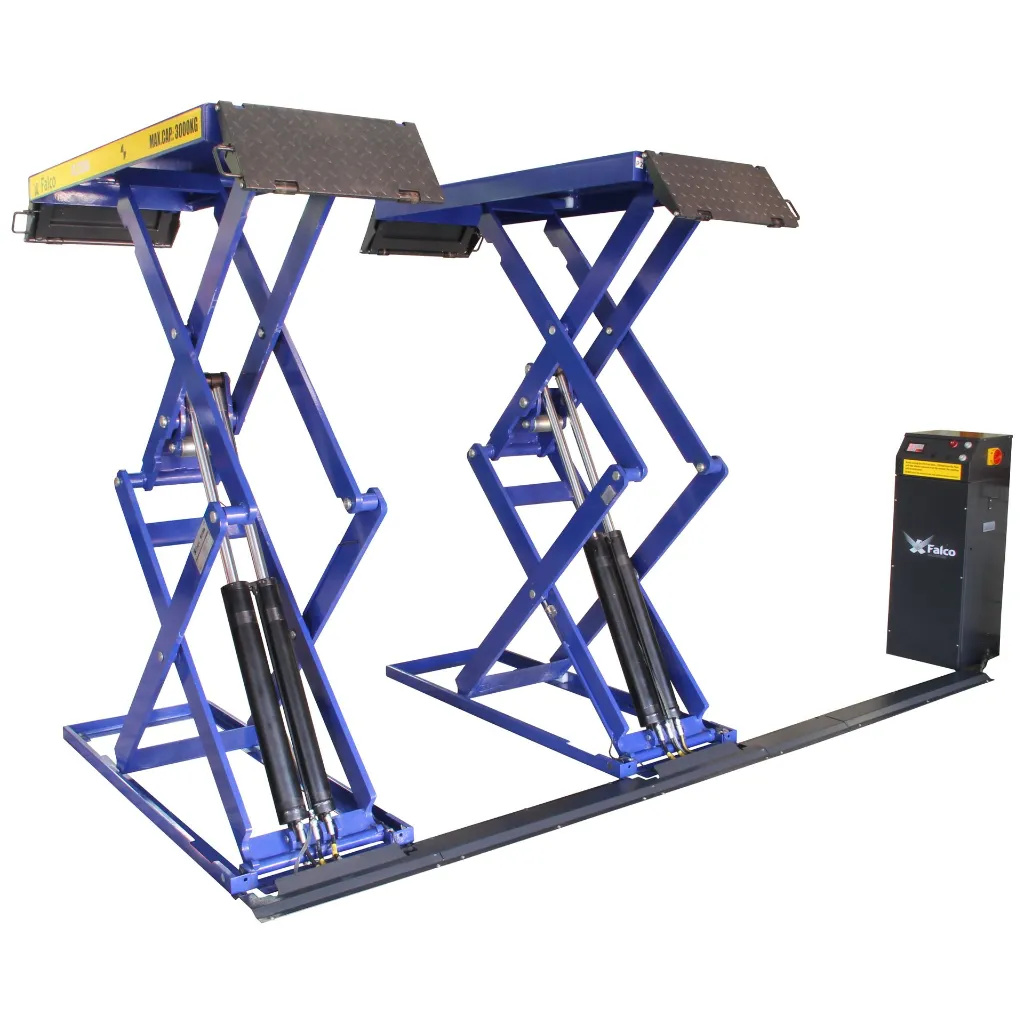

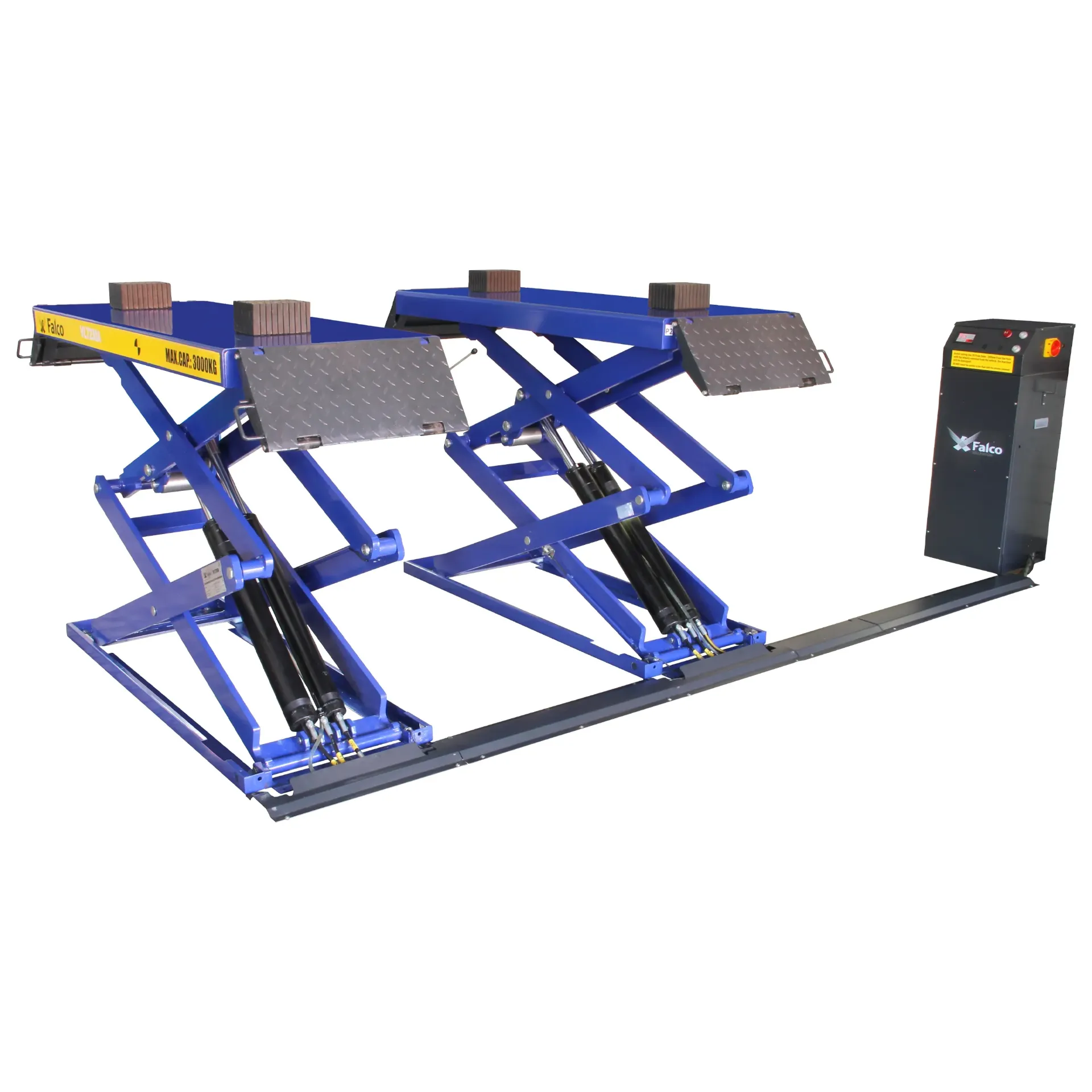

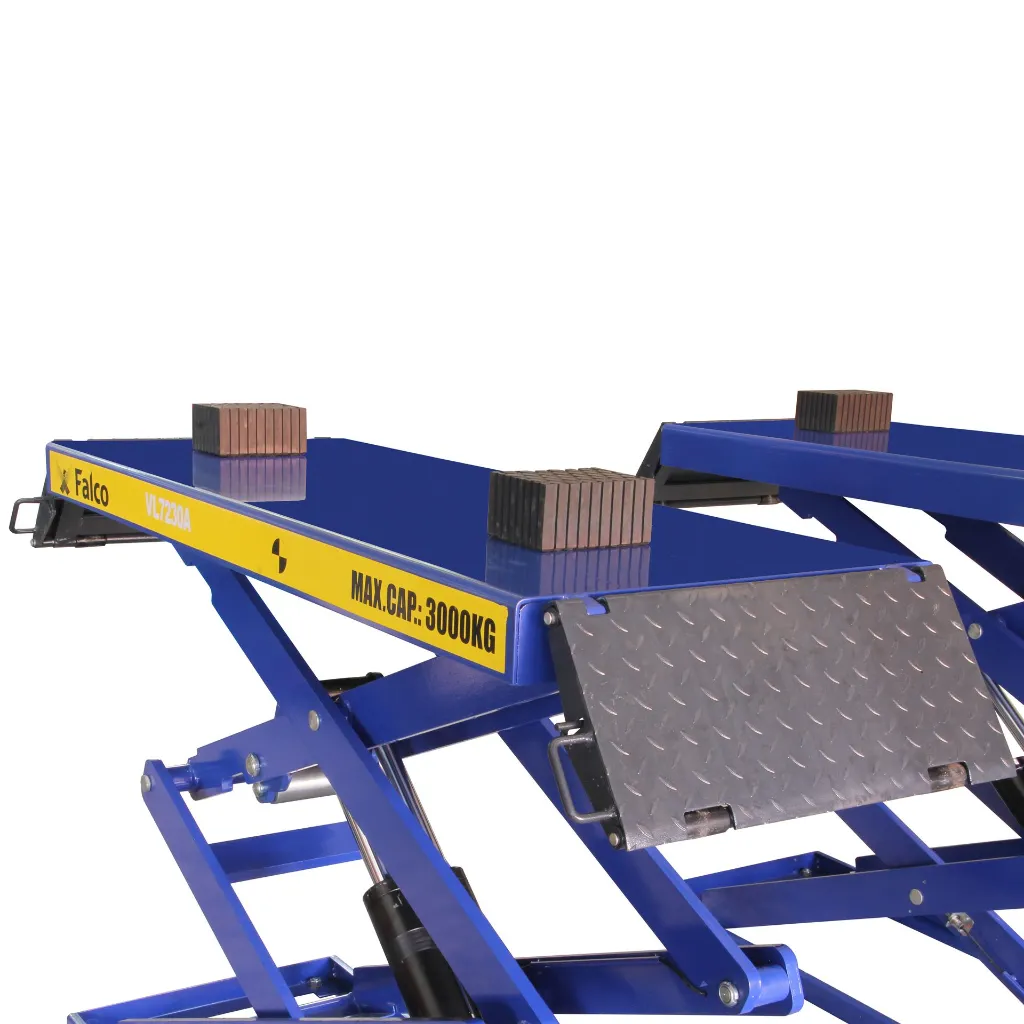

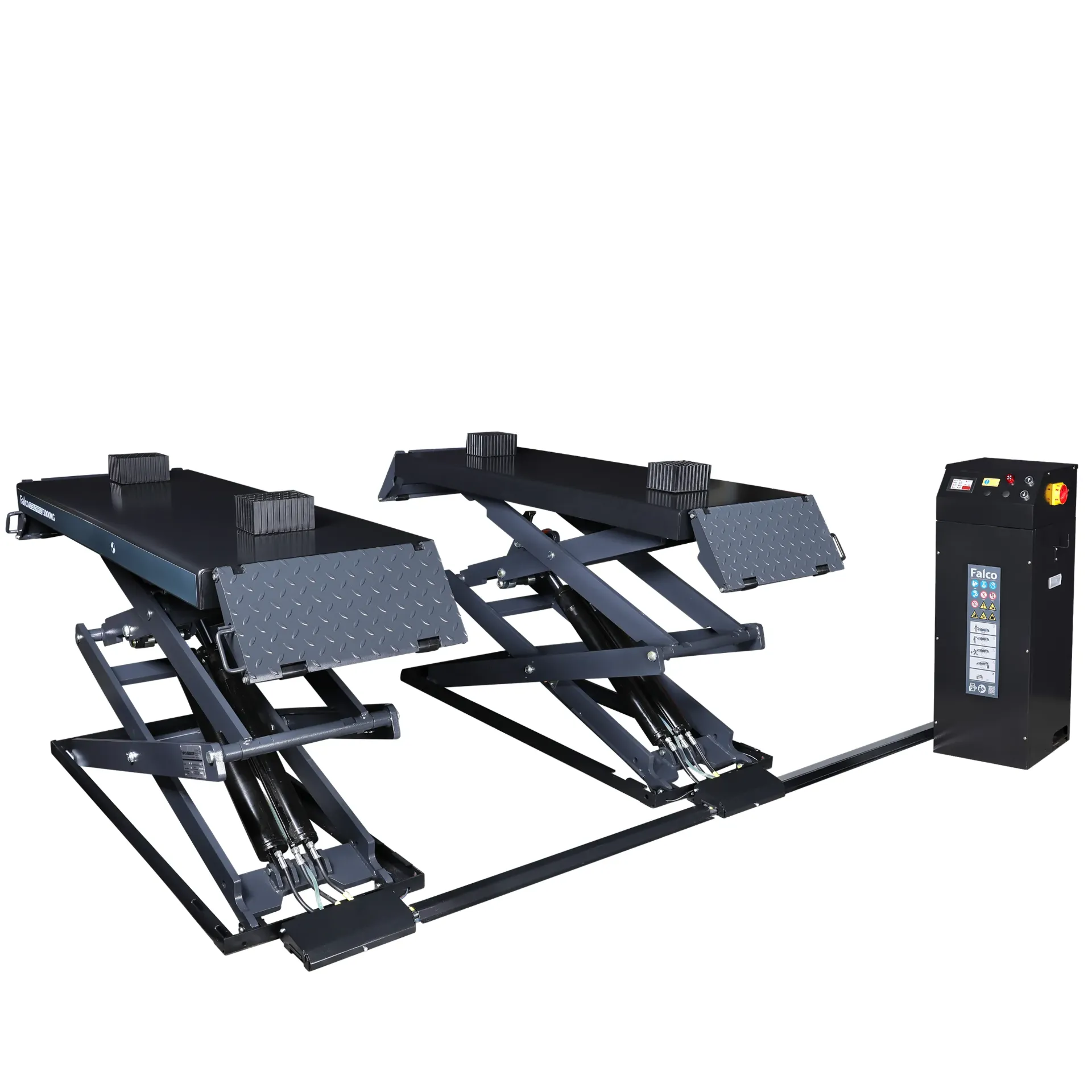

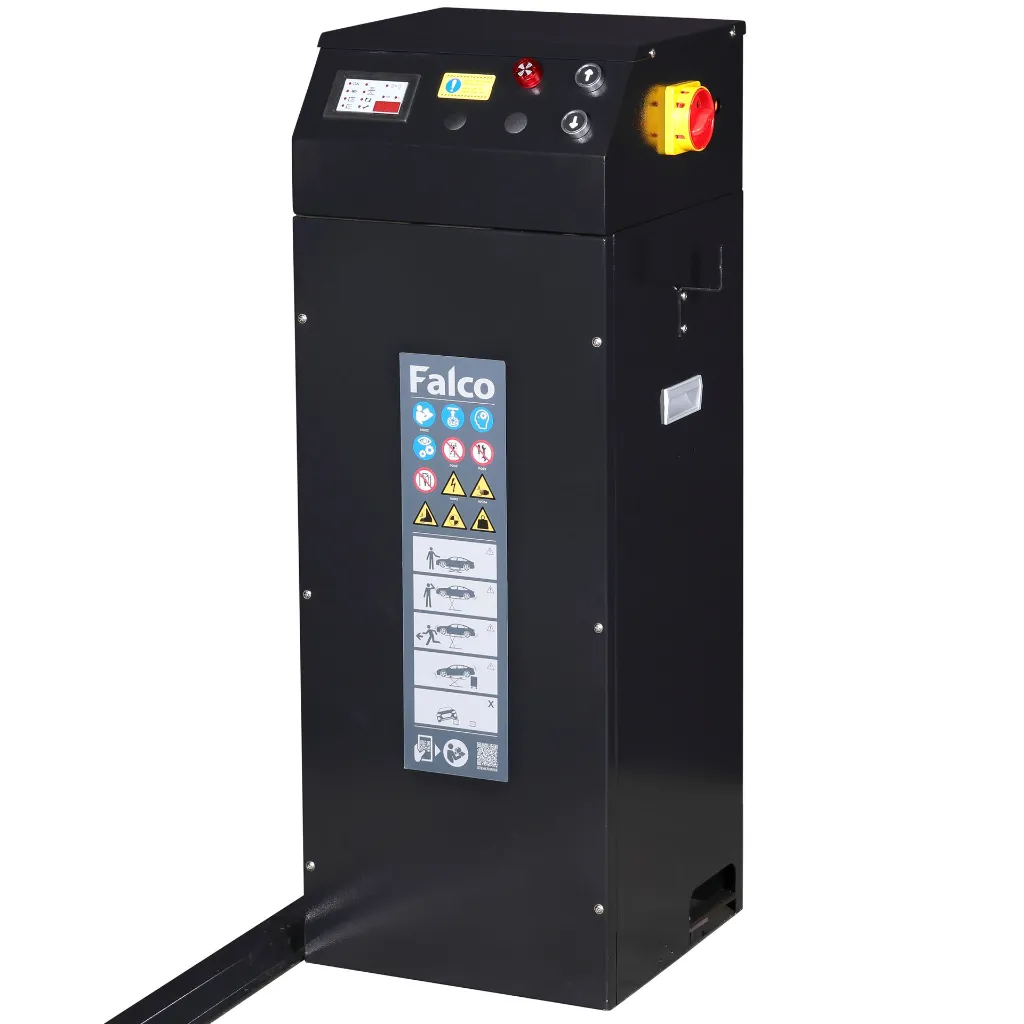

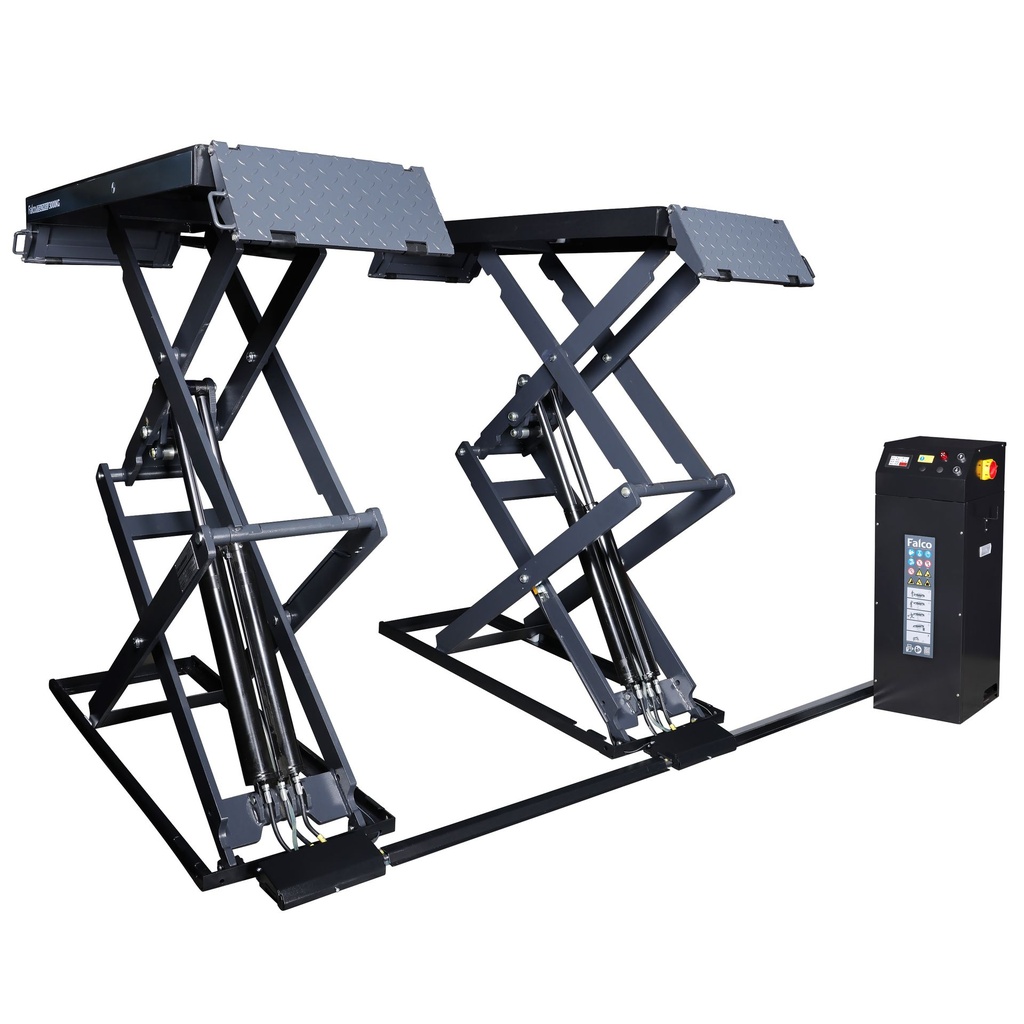

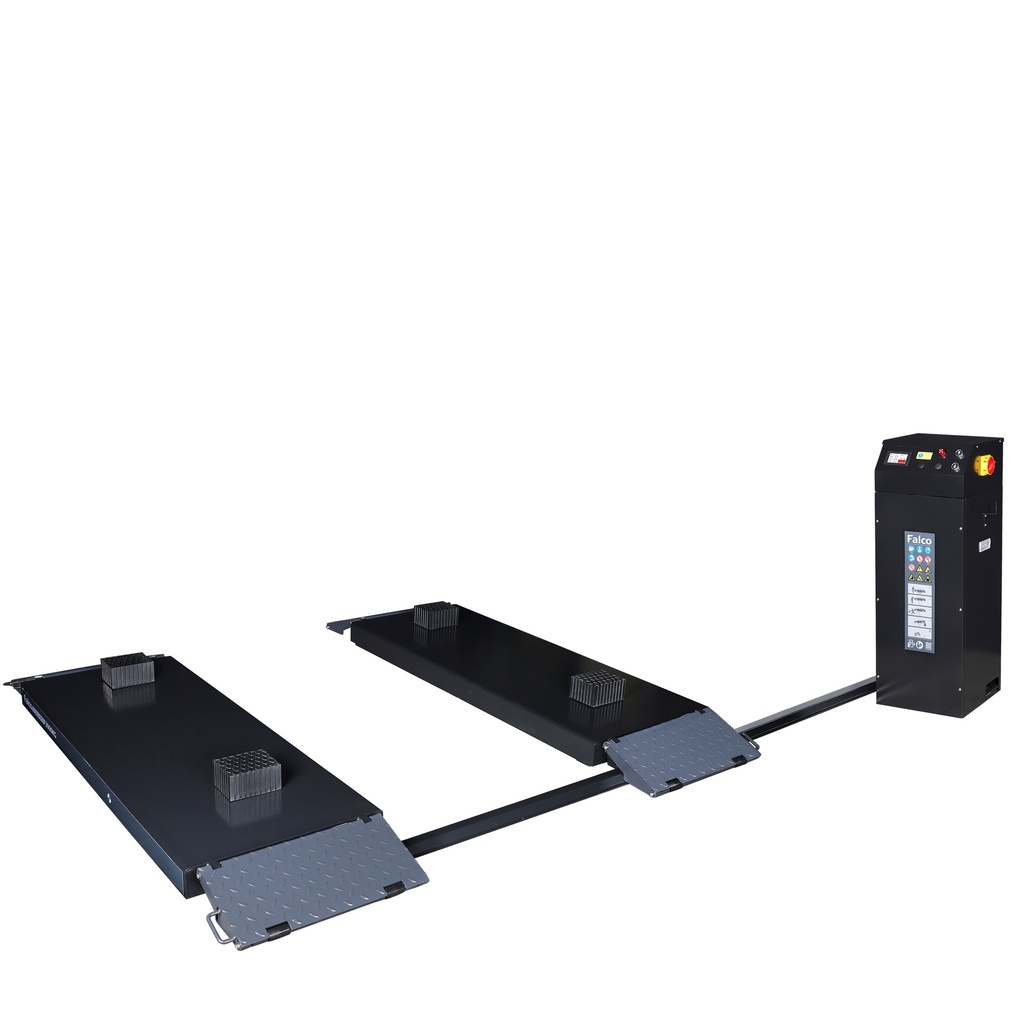

Double scissor lift master-slave 3000kg 400V
VL7230A

  • Master-slave system: lift is safe in any position

  • Including 4 picking points

  • Adjustable ramps / extensions

  • Automatic overload protection


Specifications:

  • Lifting capacity 3000 kg

  • Lifting height min. 117 mm

  • Voltage 400V - 3 Phase

  • Lifting height max. incl. pads 1850 mm

  • Platform length incl. ramps 2030 mm

  • Platform width 595 mm

  • Distance between the platforms 800 mm (recommended)

  • Oil type CH32 / CH46

  • Motor capacity 2.6 kW

  • Lifting time 35 sec.

  • Dimensions 2010.0mm x1990.0mm x1500.0mm

  • Weight 765.0Kg

Fully automatic scissor lift / scissor lift

This Falco Sollevatori double scissors lift is of high quality and suitable for professional use. With Falco lifts, quality and finishing go first.
Equipped with no less than four hydraulic cylinders (two per platform), this lift has a master-slave lifting system and also a locking system. This means that the lift is safe in any position and does not have to be lowered before work on the car can be done. It is also not necessary to first raise the lift to get out of the locking system, making the lift much easier to use and suitable for more applications than mechanically locked lifts.

Thanks to its robust construction and thoughtful design, this double scissor lift is standard equipped with the following convenient features:

  • total platform length of 2030mm

  • master-slave hydraulic system

  • electro-hydraulic lift with 4 cylinders

  • automatic venting through vent button

  • low profile with minimum lifting height of 117mm

  • automatic synchronization

  • automatic overload protection

  • control valve for controlling the speed when dropping

  • limit sensor for limiting the maximum lifting height and the minimum safety height

  • deadman operation when lifting and lowering

  • foot protection including acoustic protection signal

  • Dutch manual including maintenance protocol and CE certificate 2006/42/EG

  • homologated and certified product according to EN1493:2010

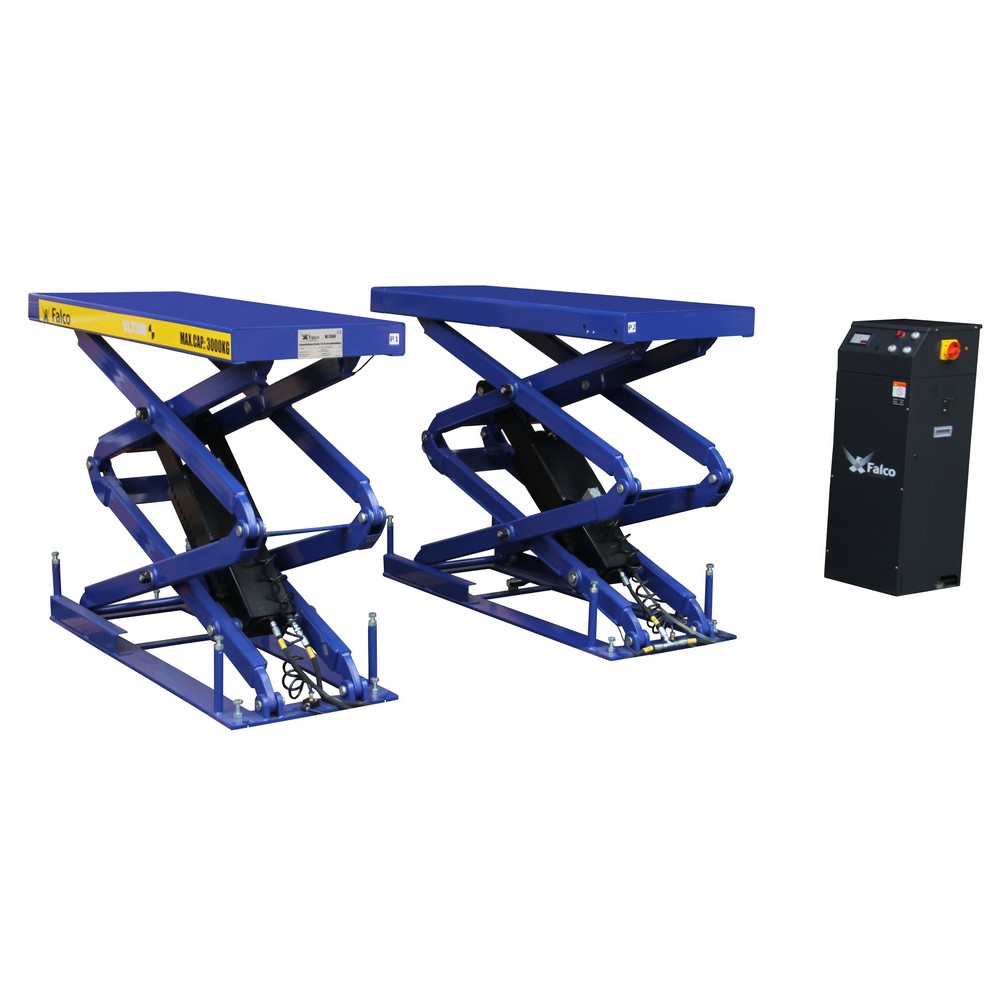

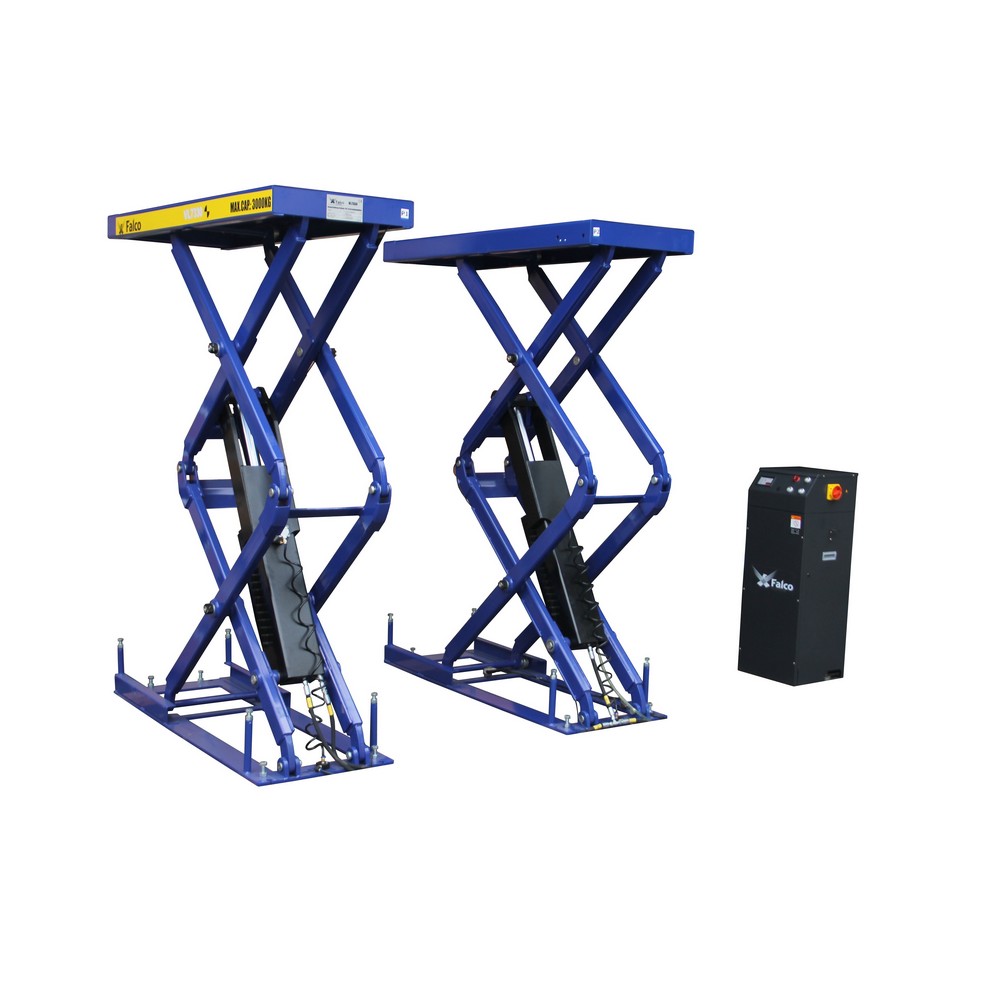

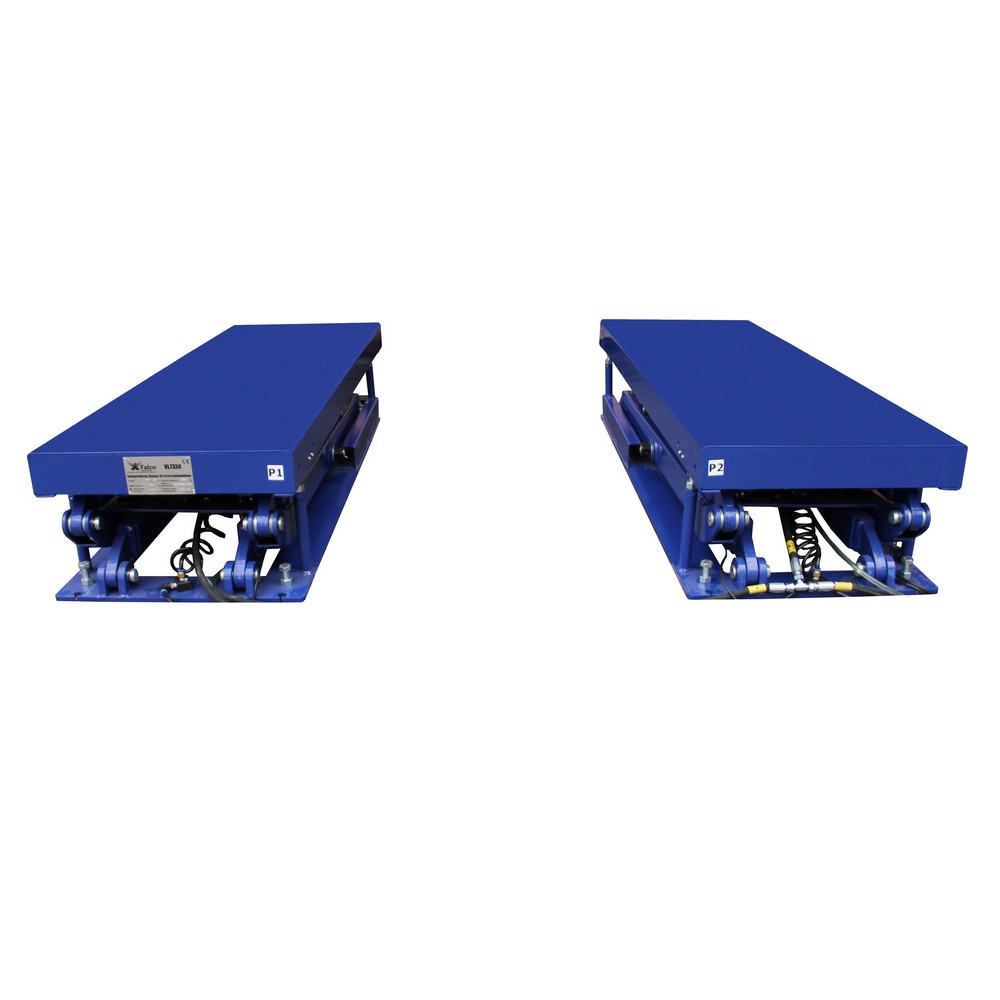

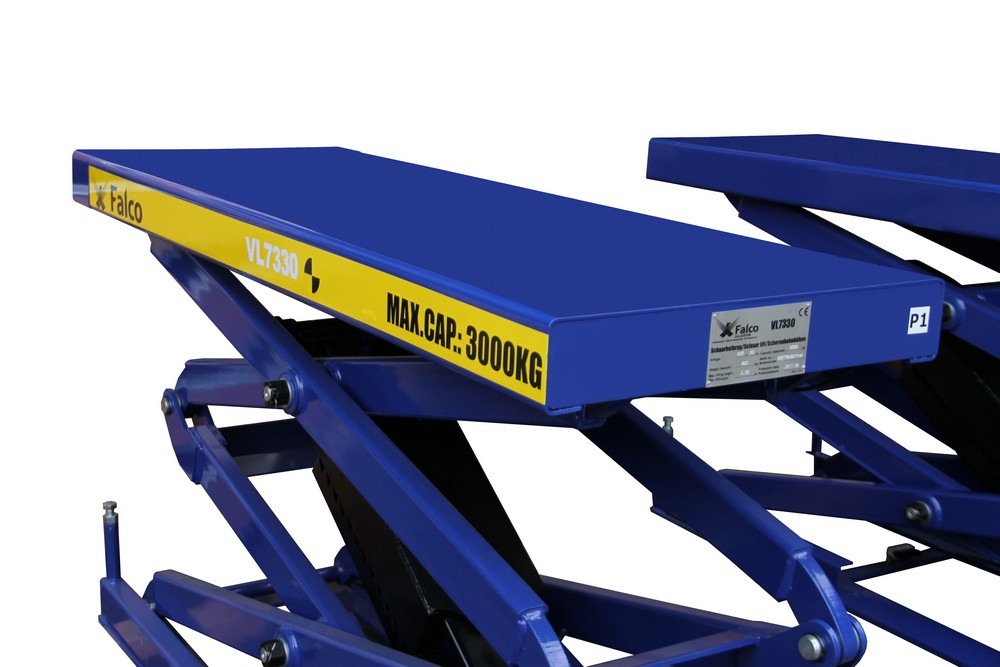

Double scissor lift in-ground 3000kg 400V
VL7330

  • Accessible all around because of built-in model

  • Extendable platforms up to 1745mm

  • Suitable for extra low cars


Specifications:

  • Lifting capacity 3000 kg

  • Lifting height min. nvt

  • Voltage 400V - 3 Phase

  • Lifting height max. incl. pads 2030 mm

  • Platform length incl. ramps 1745 mm

  • Platform width 550 mm

  • Distance between the platforms 800 mm (recommended)

  • Oil type CH32 / CH46

  • Motor capacity 2.6 kW

  • Lifting time 60 sec.

  • Dimensions 1540.0mm x1900.0mm x1500.0mm

  • Weight 735.0Kg

Fully automatic scissor lift / built-in lift

This Falco Sollevatori wheel-free double scissors lift is of high quality and suitable for professional use. With Falco lifts, quality and finishing go first.

This built-in double scissors lift model is accessible all around and suitable for many vehicles, including extra low cars. Because of the extendable platforms, the lift is also suitable for small vans.
Thanks to its robust construction and thoughtful design, the scissors lift is standard equipped with the following convenient features:

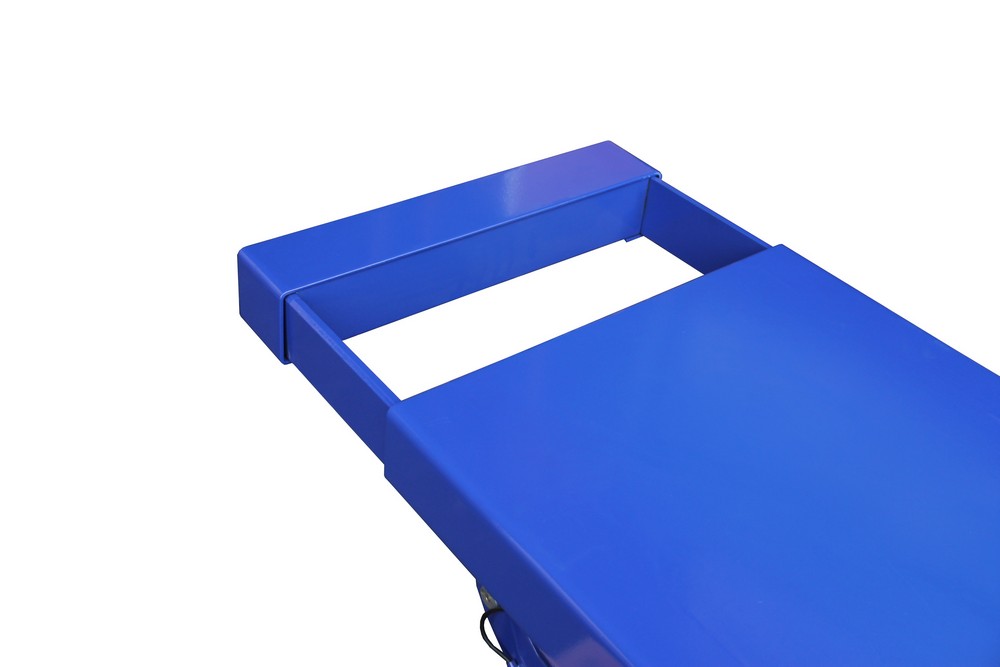

  • platform length = 1540mm, extendable to 1745mm

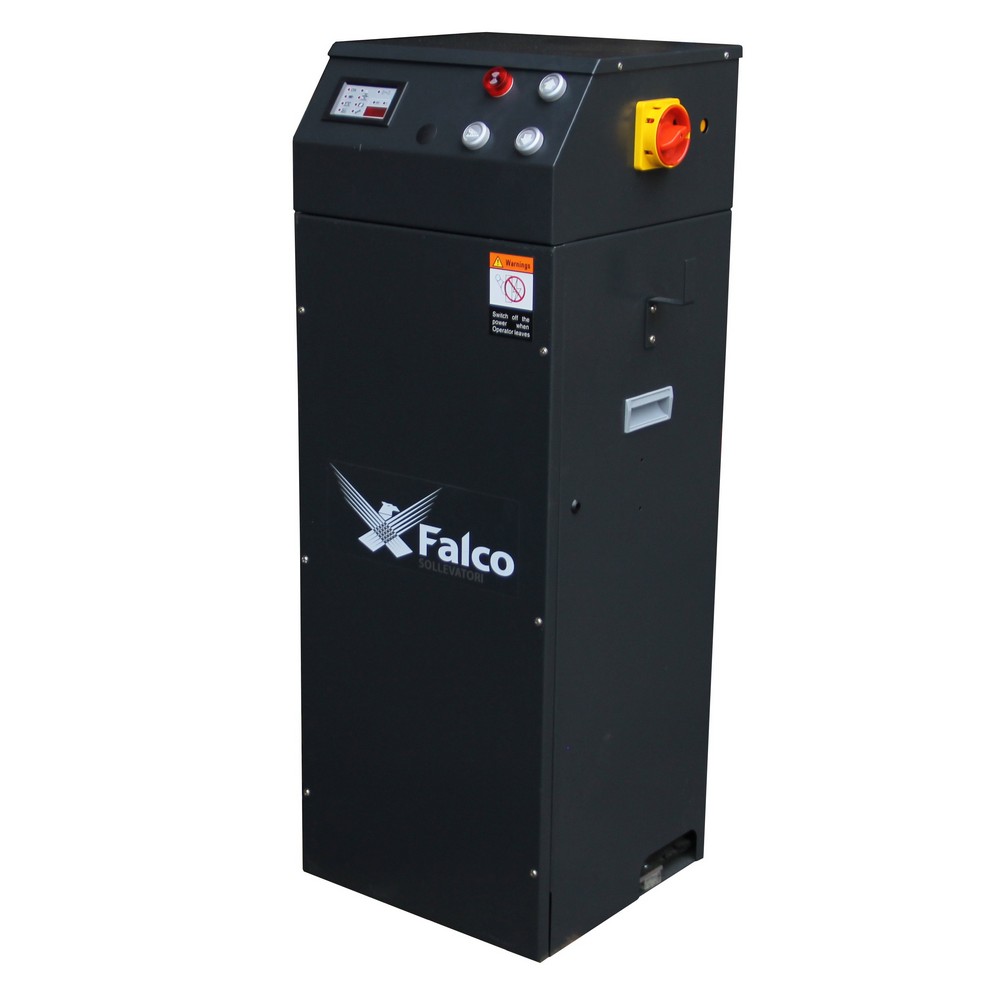

  • electro-hydraulic double transpump

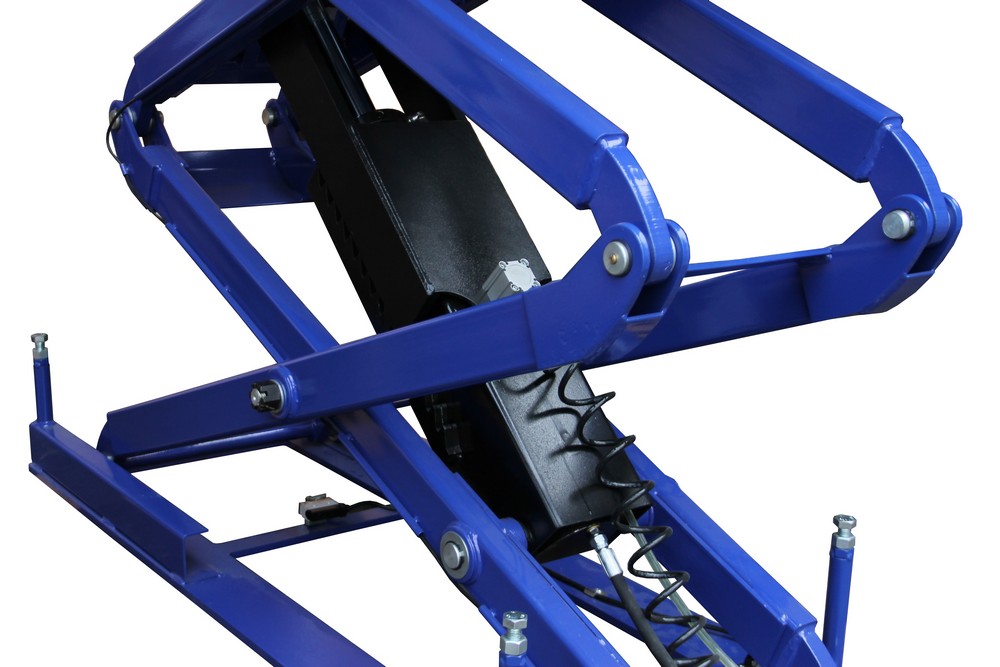

  • equipped with 2 heavy hydraulic cylinders

  • automatic venting through vent button

  • automatic synchronization

  • automatic overload protection

  • pneumatic unlocking made of high-quality material

  • control valve for controlling the speed when dropping

  • limit sensor for limiting the maximum lifting height and the minimum safety height

  • deadman operation when lifting and lowering

  • foot protection including acoustic protection signal

  • Dutch manual including maintenance protocol and CE certificate 2006/42/EG

  • complies with the NEN-EN1493 safety standard

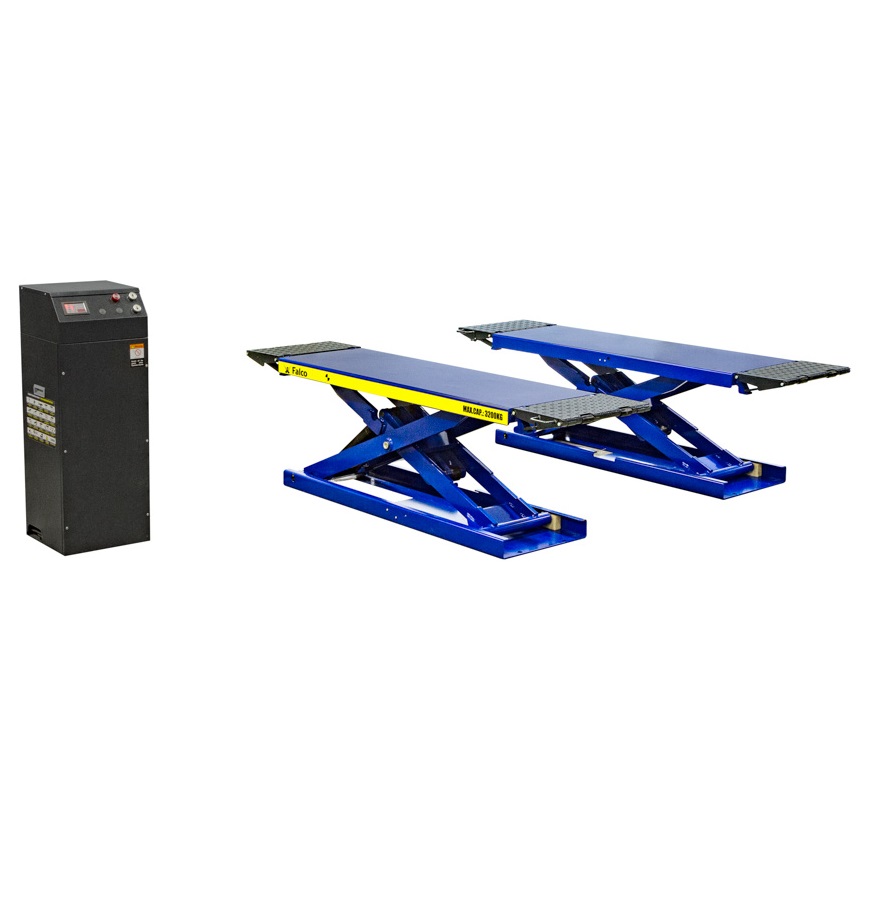

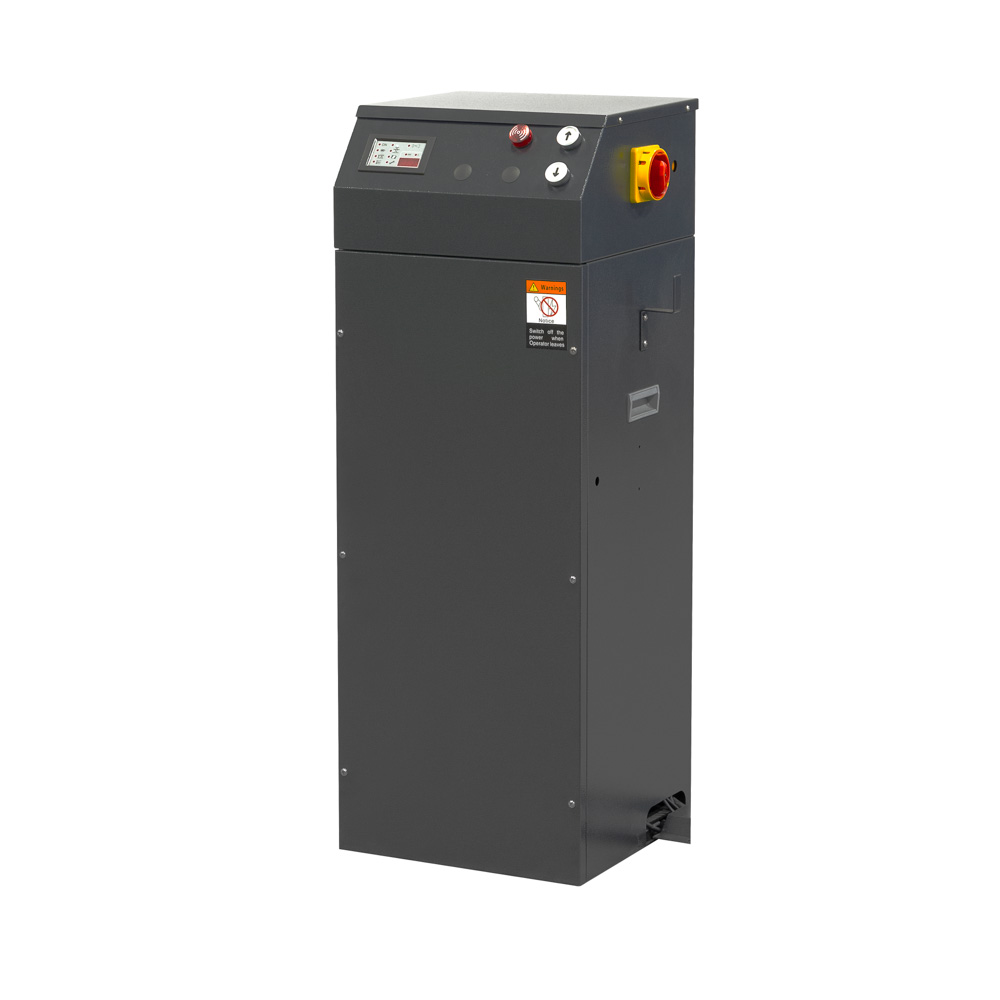

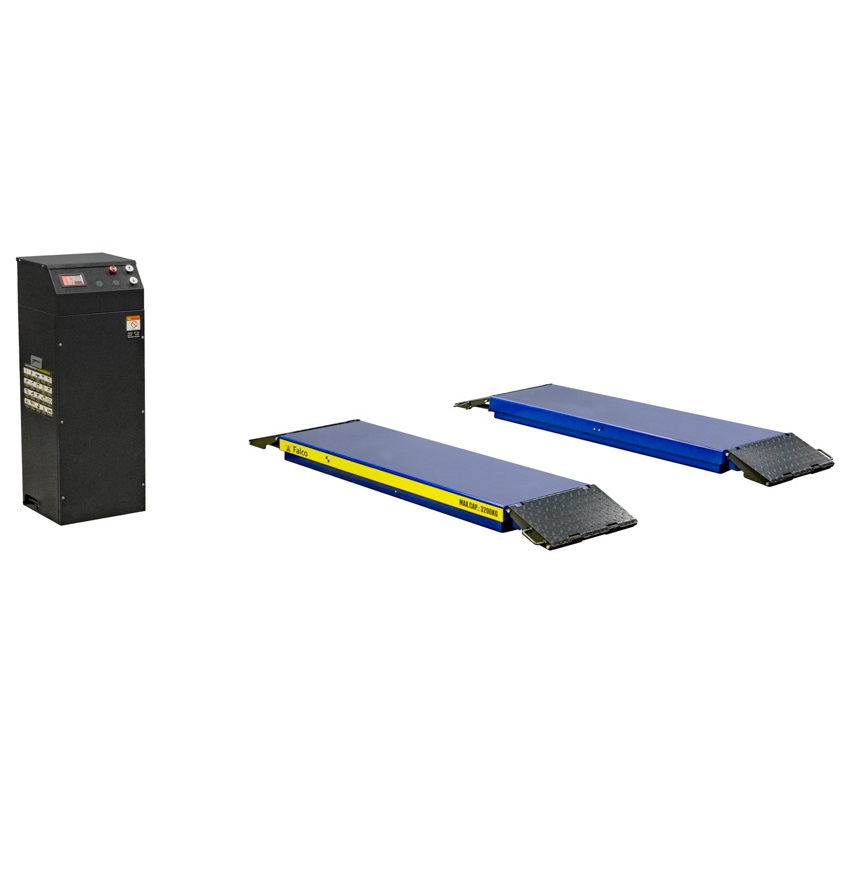

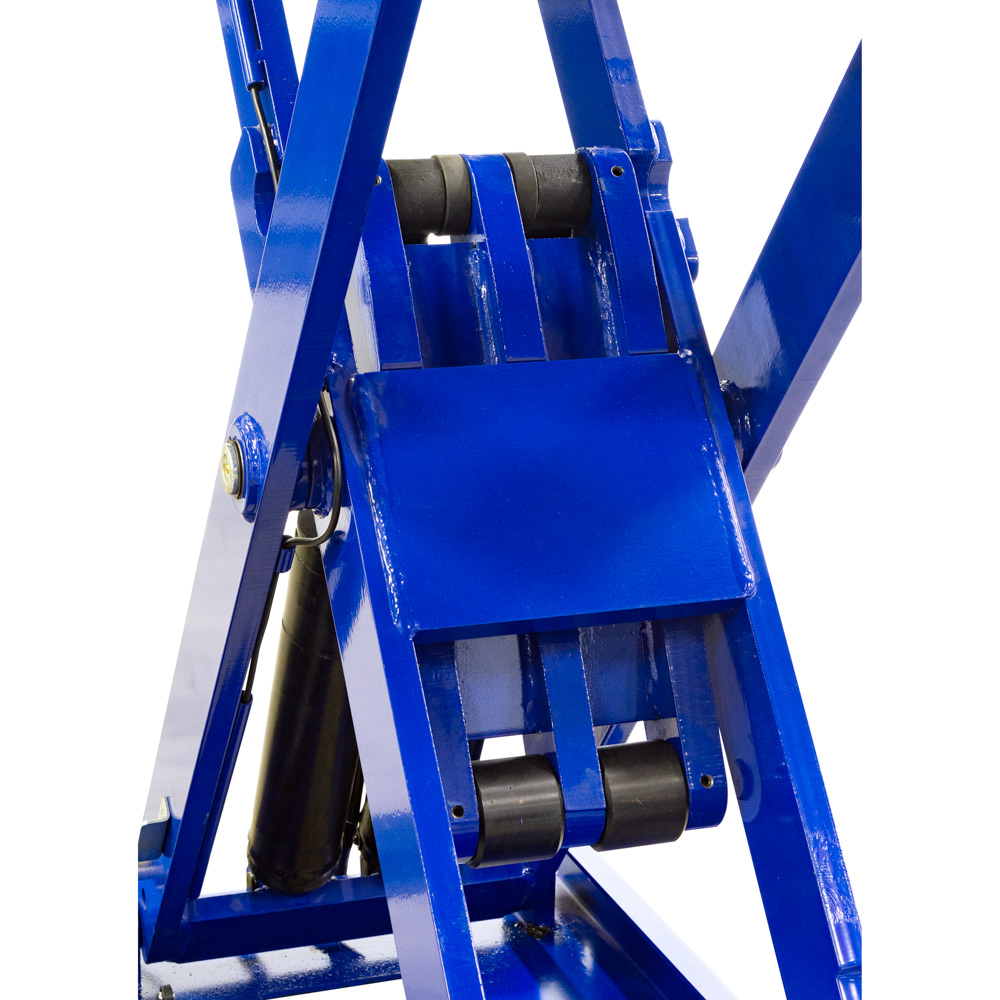

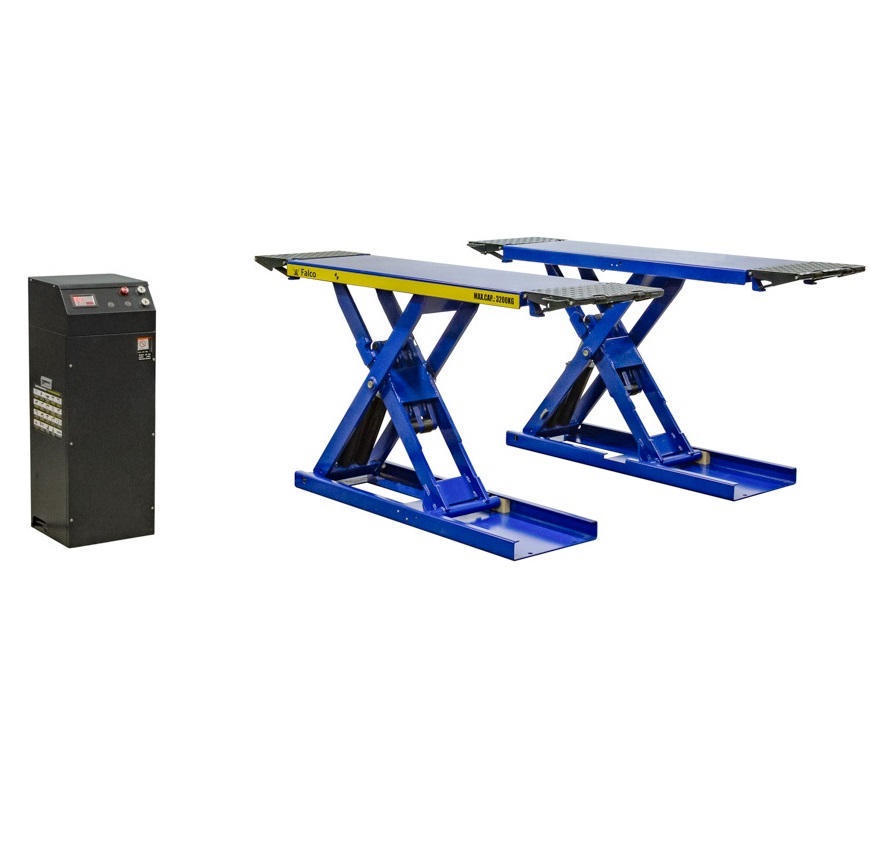

Midrise scissor lift master-slave 3200kg 400V
VL7532B

  • Master-slave system: lift is safe in any position

  • Photocell protection between the platforms

  • Including 4 picking points

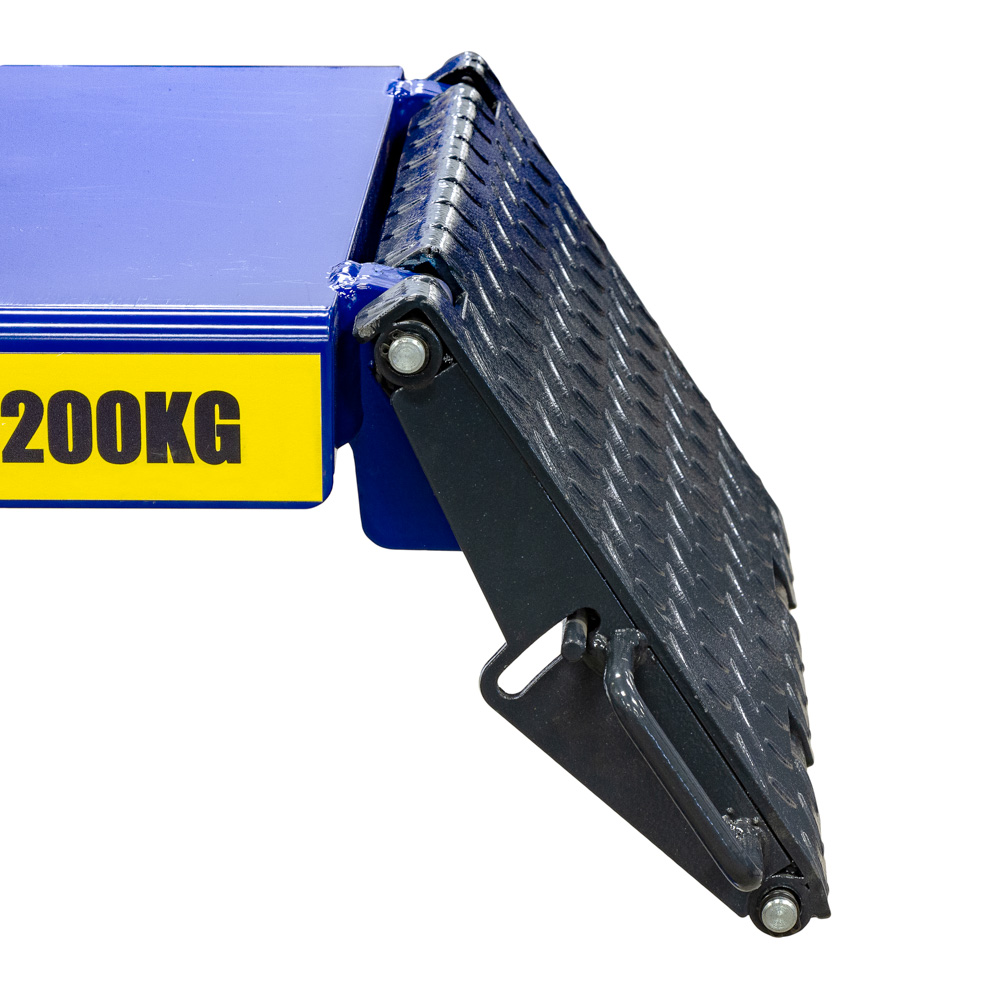

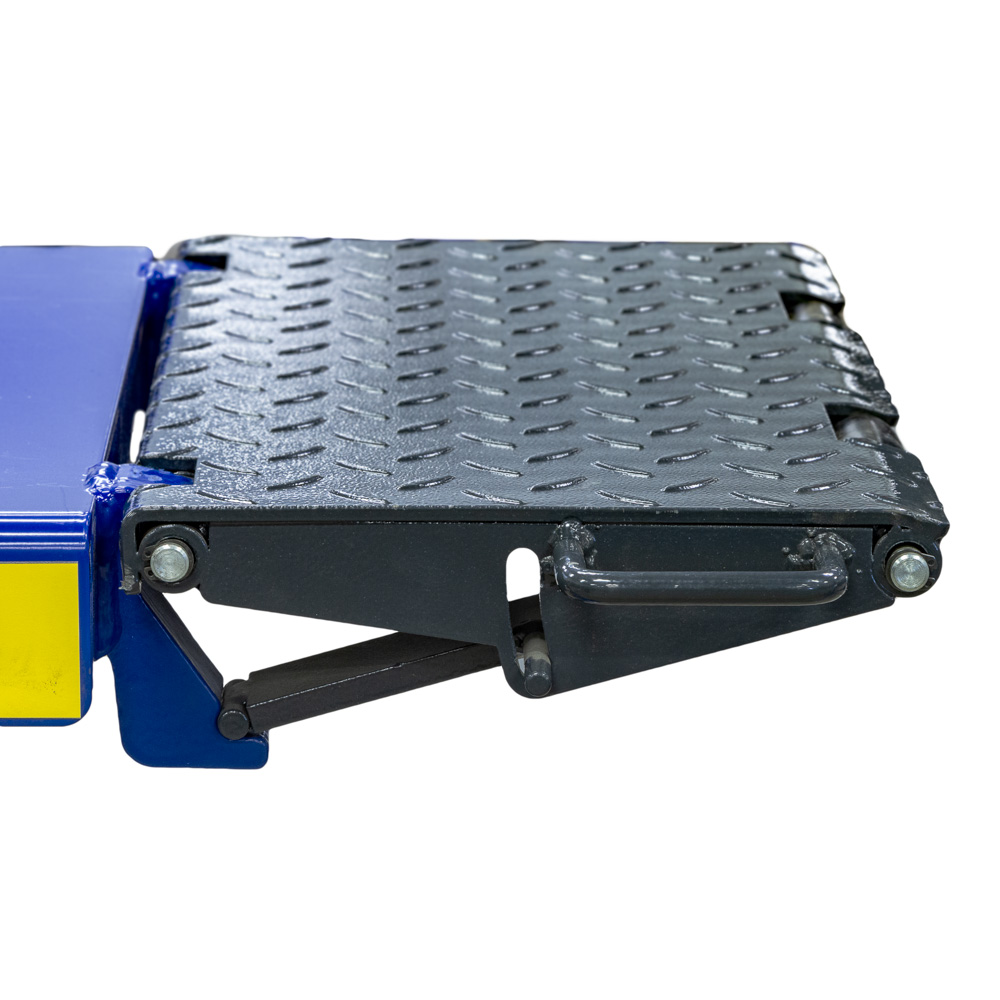

  • Adjustable ramps / extensions

  • Adjustable distance between scissor platforms to your own liking


Specifications:

  • Lifting capacity 3200 kg

  • Lifting height min. 110 mm

  • Voltage 400V - 3 Phase

  • Lifting height max. incl. pads 1000 mm

  • Platform length incl. ramps 1995 mm

  • Platform width 490 mm

  • Distance between the platforms 860 - 1000 mm (adjustable)

  • Oil type CH32 / CH46

  • Motor capacity 2.2 kW

  • Lifting time 40 sec.

  • Dimensions 2000.0mm x1650.0mm x1000.0mm

  • Weight 640.0Kg

Fully automatic scissor lift / car cleaning lift / scissor lift

This Falco Sollevatori single scissor lift is of high quality and suitable for professional use. With Falco lifts, quality and finishing go first.
Equipped with no less than four hydraulic cylinders (two per platform), this lift has a master-slave lifting system and also a locking system. This means that the lift is safe in any position and does not have to be lowered before work on the car can be done. It is also not necessary to first raise the lift to get out of the locking system, making the lift much easier to use and suitable for more applications than mechanically locked lifts.

Thanks to its robust construction and thoughtful design, this single scissor lift is standard equipped with the following useful features:

  • platform length = 1460mm

  • total length including ramps = 1995mm

  • master-slave hydraulic system

  • electrical hydraulic double pump

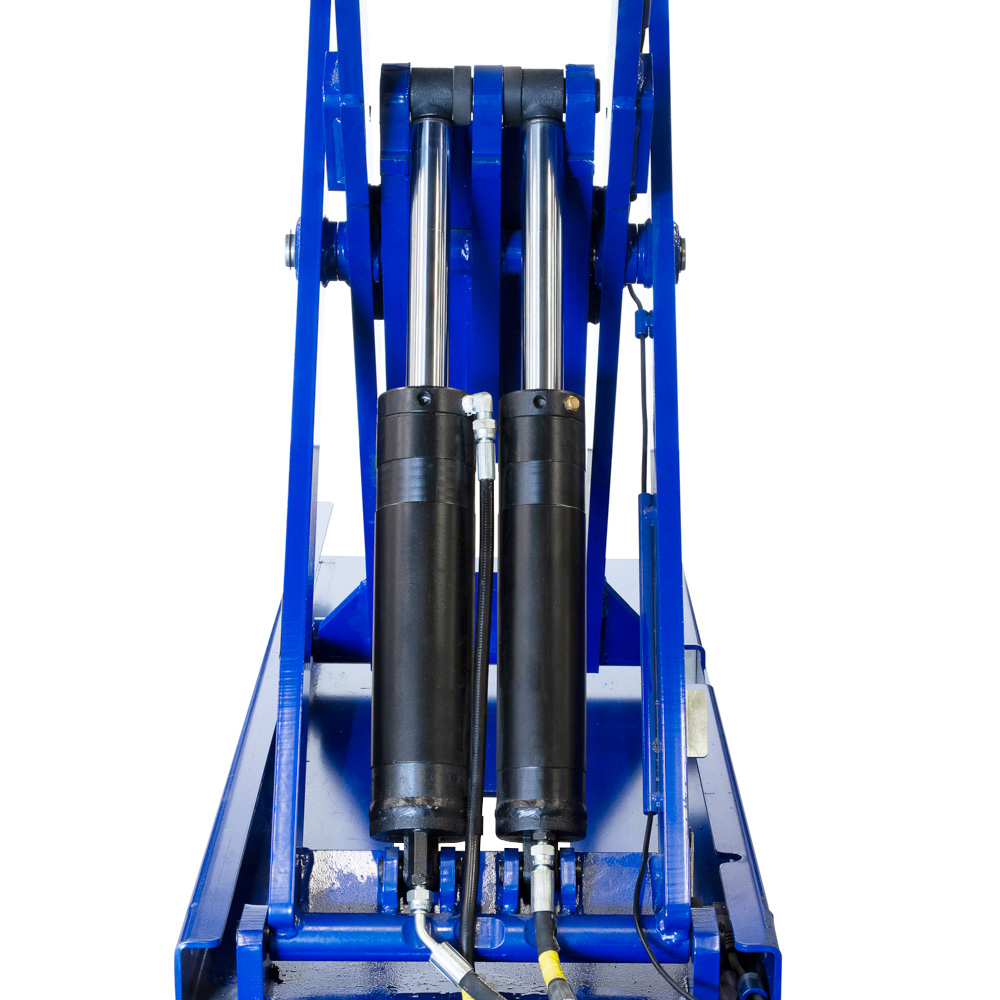

  • equipped with 4 heavy hydraulic cylinders

  • 8 hydraulic parachute valves for optimum safety

  • automatic venting by means of venting button

  • hydraulic synchronization

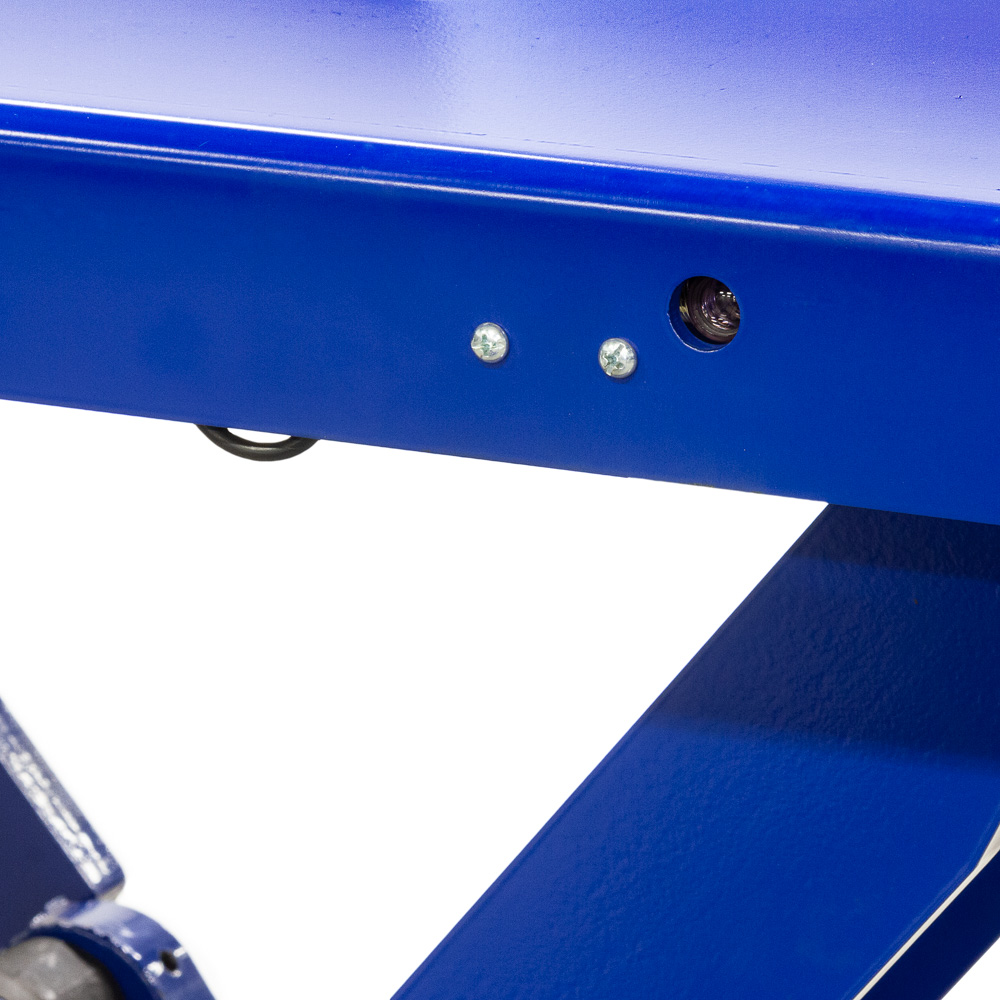

  • photocell safety between the 2 platforms

  • automatic overload protection

  • control valve for controlling the speed when lowering

  • limit sensors for limiting the maximum lift height and the minimum safety height

  • dead man's operation when lifting and lowering

  • foot protection including acoustic safety signal

  • adjustable distance between scissor platforms to your own liking

  • Dutch manual including maintenance protocol and CE certificate 2006/42/EC

  • meets the NEN-EN1493 safety standard

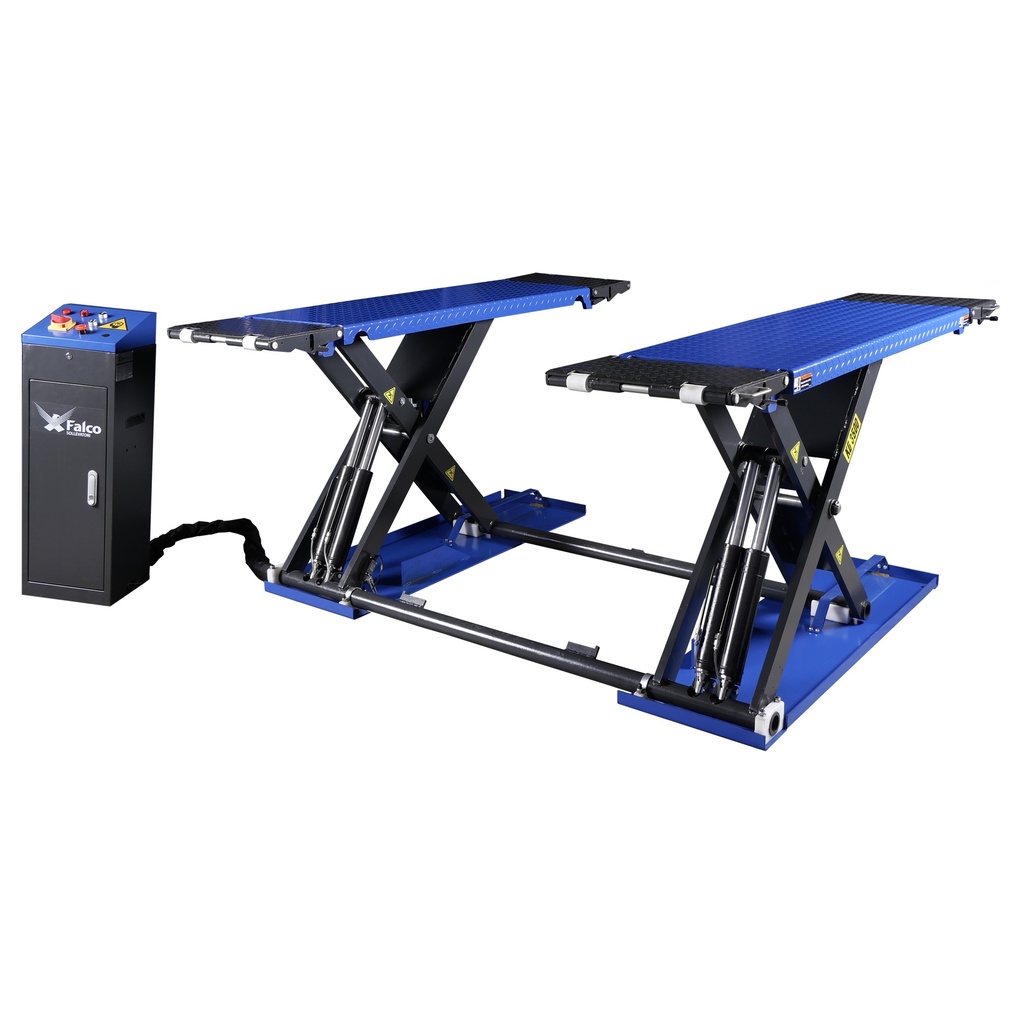

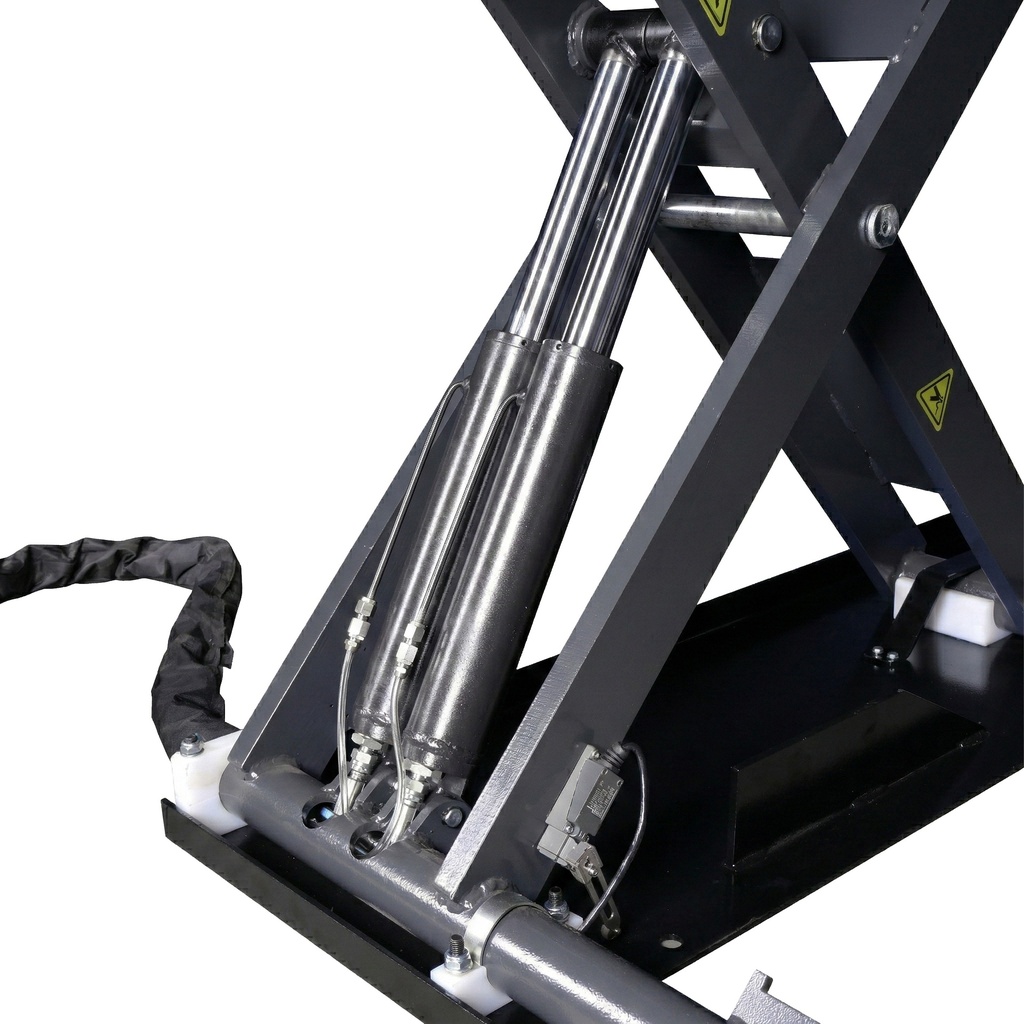

Midrise scissor lift TwinX 3500kg 230V
VL35B230M

  • 3500kg Capacity

  • TwinX hydraulic safety system: bridge is safe in every position

  • Foot protection by means of acoustic signal

  • Suitable for mobile and fixed installation

  • Extra grip thanks to tear plate platforms


Specifications:

  • Lifting capacity 3500 kg

  • Lifting height min. 105 mm

  • Voltage 230V - 1 Phase

  • Lifting height max. incl. pads 1000mm

  • Platform length incl. ramps 2015 mm

  • Platform width 480 mm

  • Distance between the platforms 1000 mm

  • Oil type CH32

  • Motor capacity 2.2 kW

  • Lifting time 40 sec.

  • Dimensions 2010.0mm x1950.0mm x900.0mm

  • Weight 585.0Kg

Car bridge / cleaning bridge / scissor bridge / scissor lift / scissor lift bridge

Thanks to the well-considered design of the Falco bridges, you save time and effort. The focus is on ease of use and an efficient work flow. Thanks to the stable solid design, the lift is easy to place on a straight surface. Equipped with no less than four hydraulic cylinders (two per platform), this lift has a TwinX lifting system. As a result, the bridge is safe in every position and it does not have to be lowered before work can be carried out on the car. Also, there is no need to raise the bridge first to release it from the lock, making the bridge much more convenient to use and suitable for more applications than mechanically locked bridges. Each bridge is supplied as standard with a wheel set, which makes it easy to move the bridge and allows you to make optimum use of your workshop. The bridge is especially suitable for large vehicles.

Characteristics:

  • Total platform length of 2015mm

  • TwinX hydraulic system

  • Extra low ramp height of 105mm

  • Mobile tire

  • 4 Powerful hydraulic cylinders

  • Foot protection incl. acoustic safety signal

  • Start lift

  • Adjustable ramp

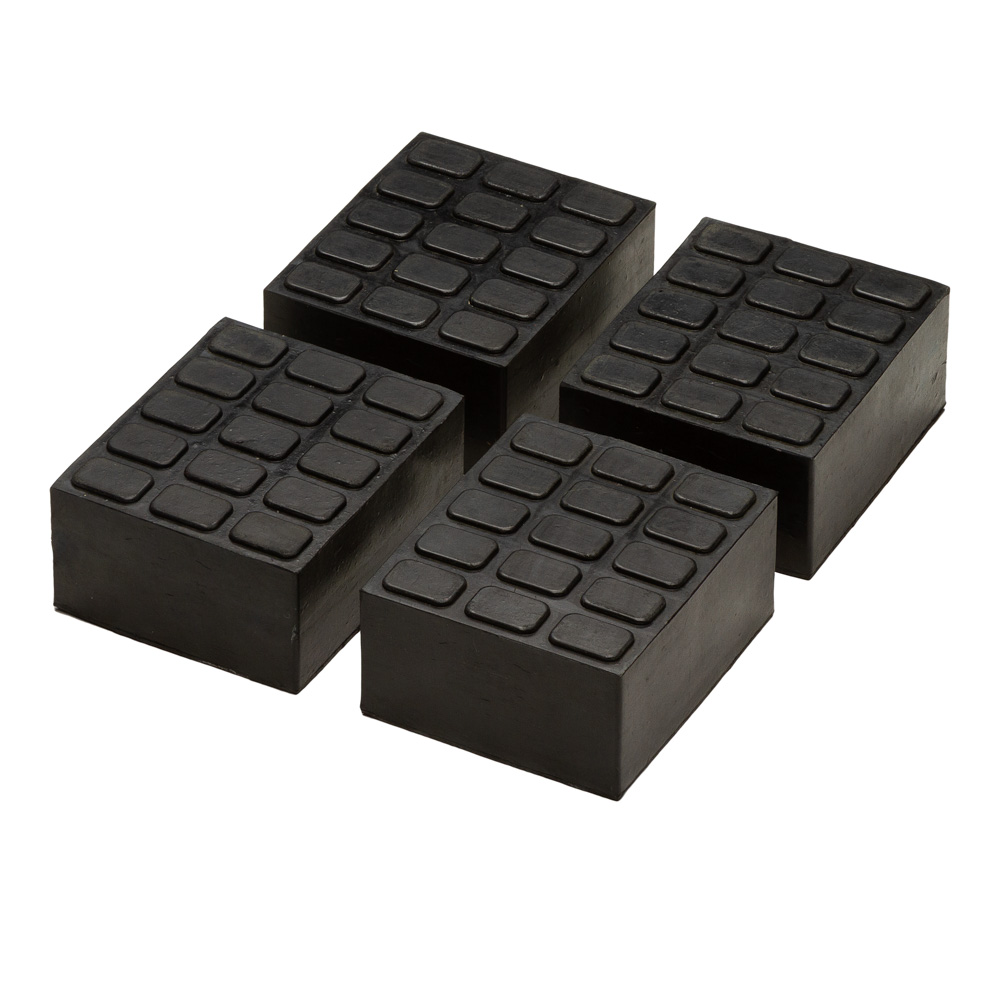

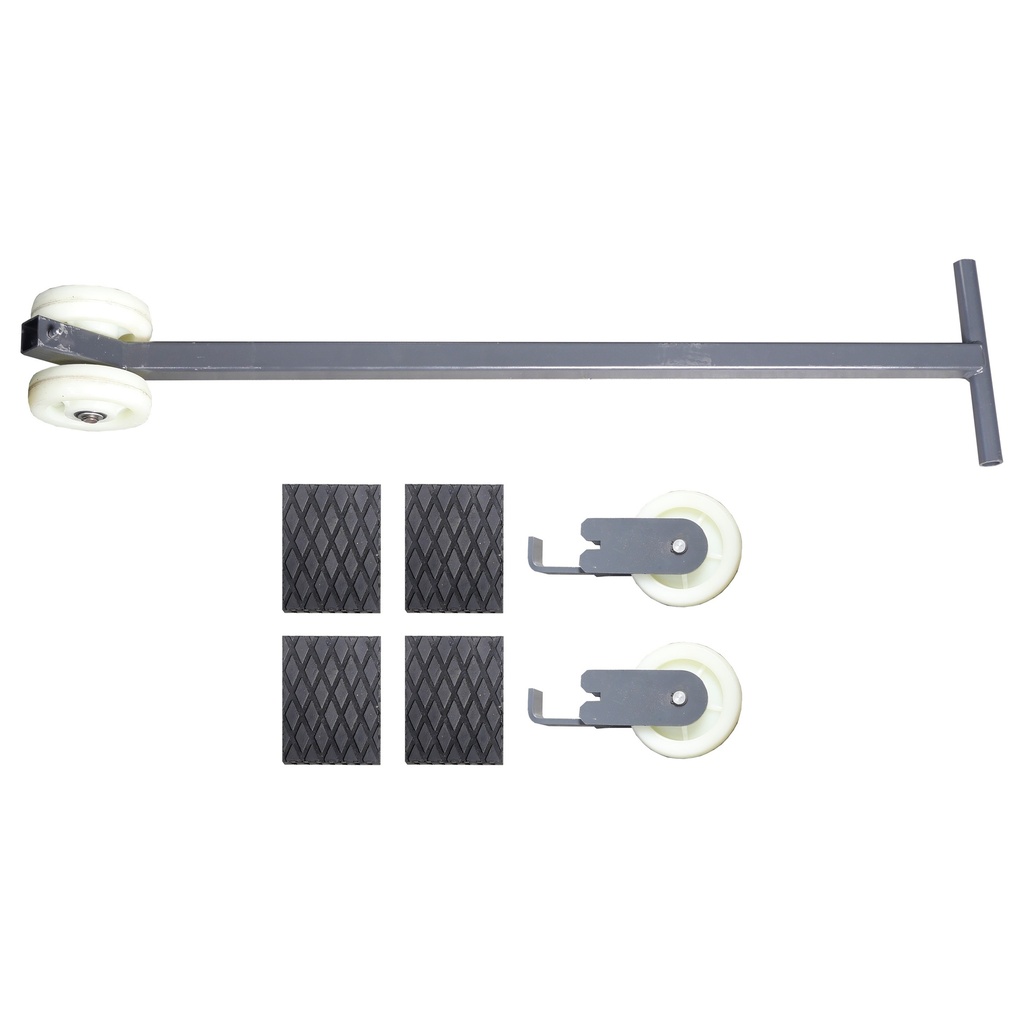

  • Incl. wheel set and mounting blocks (40mm)

  • Complies with NEN-EN1493 safety standard

locking = automatic

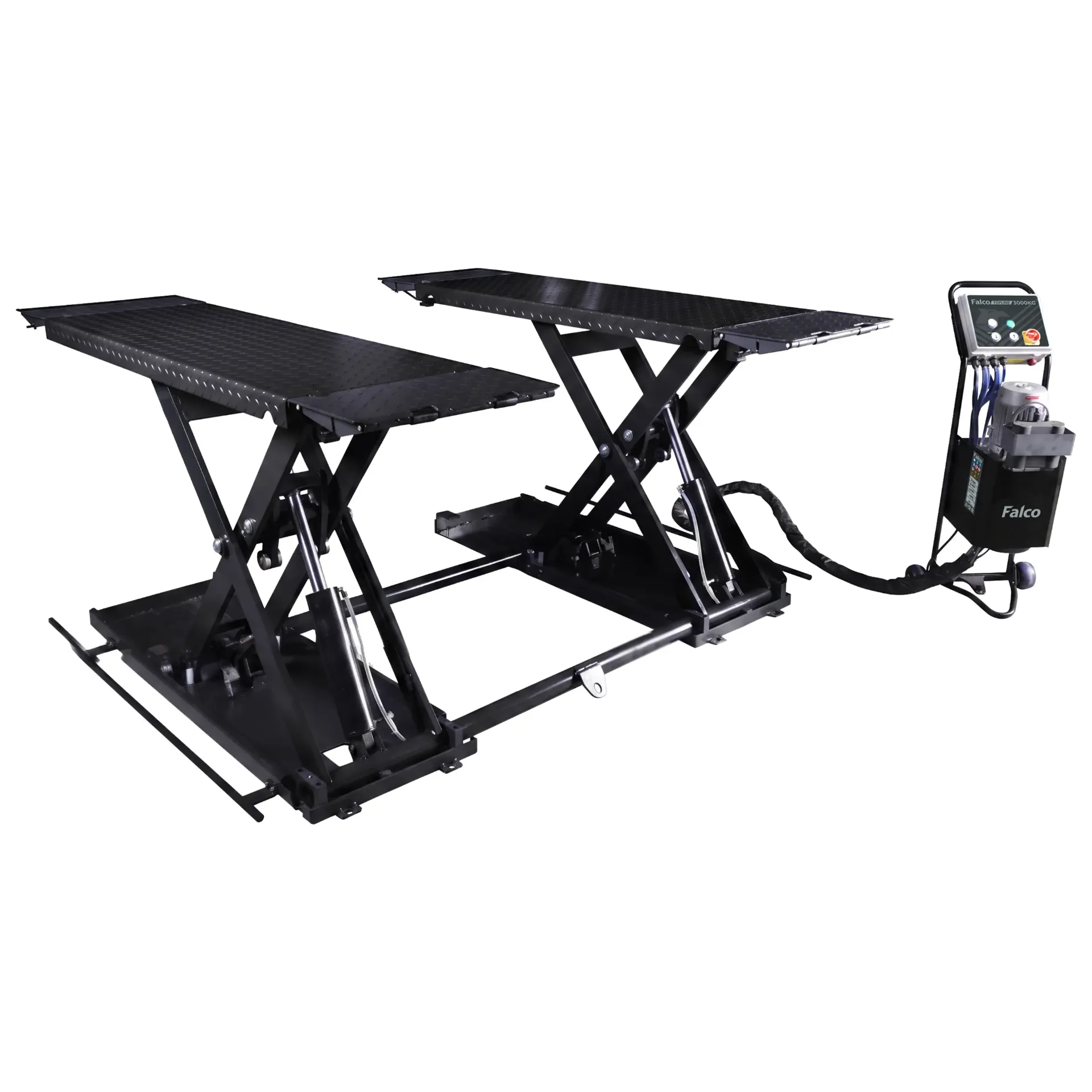

Midrise scissor lift 3000kg 230V
VL75F230B

  • Sync Safety System

  • Heavy duty 680kg

  • Starter lift for powerful lifting of low vehicles

  • Suitable for fixed installation and mobile use

  • Emergency lowering valve


Specifications:

  • Lifting capacity 3000 kg

  • Lifting height min. 115 mm

  • Voltage 230V

  • Lifting height max. incl. pads 1025 mm

  • Platform length incl. ramps 1984 mm

  • Platform width 515 mm

  • Distance between the platforms 810 mm

  • Oil type CH32 / CH46

  • Motor capacity 1.5 kW

  • Lifting time 35 sec.

  • Dimensions 1984.0mm x1861.0mm x1000.0mm

  • Weight 580.0Kg

Fully automatic car bridge / cleaning bridge / scissor bridge / scissor lift / scissor lift bridge

This Falco tire bridge focuses on efficiency and ease of use. Thanks to the Sync safety system, it always drops synchronously. The bridge is equipped with an acoustic signal and a rail is fitted at the bottom for foot protection. The lanes are made of wear-resistant tear plate over the entire length. The stable solid design is easy to use anywhere on a straight surface and also includes mounting holes for fixed installation. It can be used both mobile and fixed. The bridge is supplied as standard including a wheel set, which makes it easy to move the bridge and allows you to make optimum use of your workshop.

Characteristics:

  • Extra low ramp height of 110mm

  • Mobile tire bridge

  • Powerful hydraulic cylinders

  • Fully automated electric safety interlock

  • Foot protection incl. acoustic safety signal

  • Start elevator

  • Adjustable ramp / extension piece

  • Foot protection switch

  • Emergency lowering valve

  • Incl. Wheel set, plug and rubber support blocks

lock = automatic
